Used DOOSAN DX140LC-5
Parameters
| Engine Model | DL06K |
| Rated Power(kW) | 81.6 |
| Engine Revolutions(rpm) | 1850 |
| Maximum Torque(N·m) | 500 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 6.3-7.8 |
| Engine Displacement(L) | 5.89 |
| Emisson | Stage IV |
| Track width(mm) | 600 |
| Fuel Tank(L) | 265 |
| Hydraulic Tank(L) | 150 |
| Travel Speed(km/h) | 5 |
| Bucket Capacity(m³) | 0.51 |
| Bucket Digging Force(kN) | 110 |
| Boom Length(mm) | 4600 |
| Stick Length(mm) | 2500 |
| Maximum Excavation Radius(mm) | 8780 |
| Maximum Digging Height(mm) | 6350 |
| Maximum Digging Depth(mm) | 5820 |
| Specifications(mm) | 7720×2600×2785 |
| Operating Weight(kg&ton) | 14400 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2019 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
High-Torque Common Rail Diesel Engine
Domestic DL06K 5.89L six-cylinder / Export Perkins 4.4L four-cylinder, abundant low-speed torque for multi-scenario heavy operation, nationwide spare parts supply and low maintenance cost.
e-EPOS Cross-Sensing Intelligent Hydraulic System
Dual variable displacement main pumps total flow 228L/min, triple energy regeneration reduces fuel consumption by 15%, factory pre-installed adjustable auxiliary hydraulic line with 10 attachment flow presets for breakers & grapples. Hydraulic tank capacity 150L, full system oil volume 420L.
LC Extra Long Reinforced Medium Undercarriage
LC full name: Long Chassis. 2240mm wide track gauge with 600mm steel/rubber track shoes, extended ground contact length reduces ground pressure to avoid sinking on muddy construction sites, superior stability for heavy side lifting and slope excavation.
Reinforced Standard Working Attachment
4600mm boom + 2500mm standard arm delivers deep digging depth and high dumping height, reinforced bushings and wear plates for long-hour heavy digging and rock breaking cycles. Overall dimension 7720×2600×2785mm, easy transportation on standard flat trucks without oversize limit.
Shock-Absorbing ROPS/FOPS Operator Cabin
Full shock-absorbing enclosed cabin with full auto air conditioning, heated pneumatic suspension seat, color LCD diagnostic monitor, battery cut-off switch and centralized filter layout for fast daily maintenance.
Interested in this excavator? Leave us a message through the contact form on our website or click the WhatsApp button for a faster response from our sales team. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry

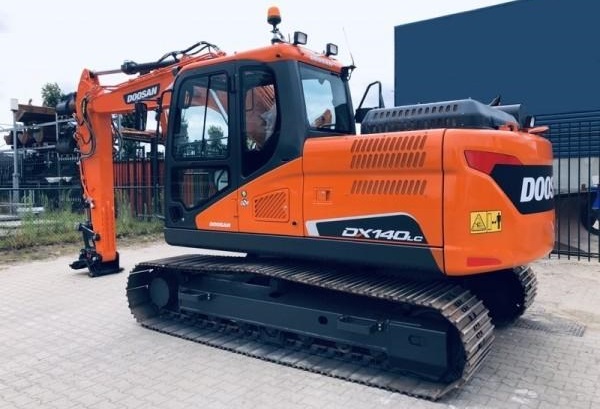

Photos
