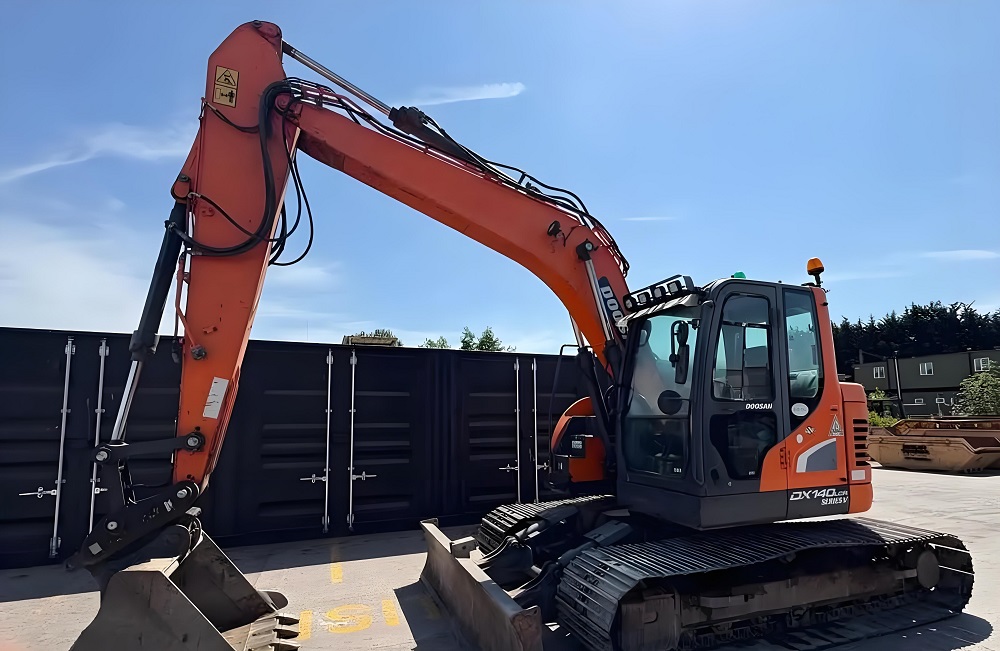

Used DOOSAN DX140LC-3
Parameters
| Engine Model | DL06K |
| Rated Power(kW) | 82 |
| Engine Revolutions(rpm) | 1850 |
| Maximum Torque(N·m) | 445 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 6.5-8 |
| Engine Displacement(L) | 5.89 |
| Emisson | Stage III |
| Track width(mm) | 600 |
| Fuel Tank(L) | 270 |
| Hydraulic Tank(L) | 100 |
| Travel Speed(km/h) | 4.9 |
| Bucket Capacity(m³) | 0.51 |
| Bucket Digging Force(kN) | 111 |
| Boom Length(mm) | 4680 |
| Stick Length(mm) | 2500 |
| Maximum Excavation Radius(mm) | 8805 |
| Maximum Digging Height(mm) | 6380 |
| Maximum Digging Depth(mm) | 5850 |
| Specifications(mm) | 7720×2600×2780 |
| Operating Weight(kg&ton) | 14400 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2016 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
Low-Consumption DL06K Common Rail Diesel Engine
5.89L six-cylinder engine, rated net power 82kW. Equipped with cooled EGR + DPF particulate filter, electronic fan clutch cuts fuel consumption and noise, abundant low-speed torque for multi-scenario heavy work.
EPOS Electronic Load Sensing Hydraulic System
Dual variable displacement main pumps total flow 244L/min, 4 selectable working modes, boom float & energy regeneration reduce fuel consumption by up to 17.5%, factory pre-installed auxiliary breaker line for 100/110 medium hydraulic hammers. Hydraulic tank capacity 100L, full system oil volume 170L.
LC Extra Long Reinforced Medium Undercarriage
LC full name: Long Chassis. 2240mm wide track gauge with 600mm steel/rubber track shoes, extended ground contact length reduces ground pressure to avoid sinking on muddy construction sites, superior stability for heavy side lifting and slope excavation.
Reinforced Standard Working Attachment
4680mm boom + 2500mm standard arm delivers deep digging depth and high dumping height, reinforced bushings and wear plates for long-hour heavy digging and rock breaking cycles. Overall dimension 7720×2600×2780mm, easy transportation on standard flat trucks without oversize limit.
Shock-Absorbing ROPS/FOPS Operator Cabin
Full shock-absorbing enclosed cabin with full auto air conditioning, pneumatic suspension seat, color LCD diagnostic monitor, battery cut-off switch and centralized filter layout for fast daily maintenance.
