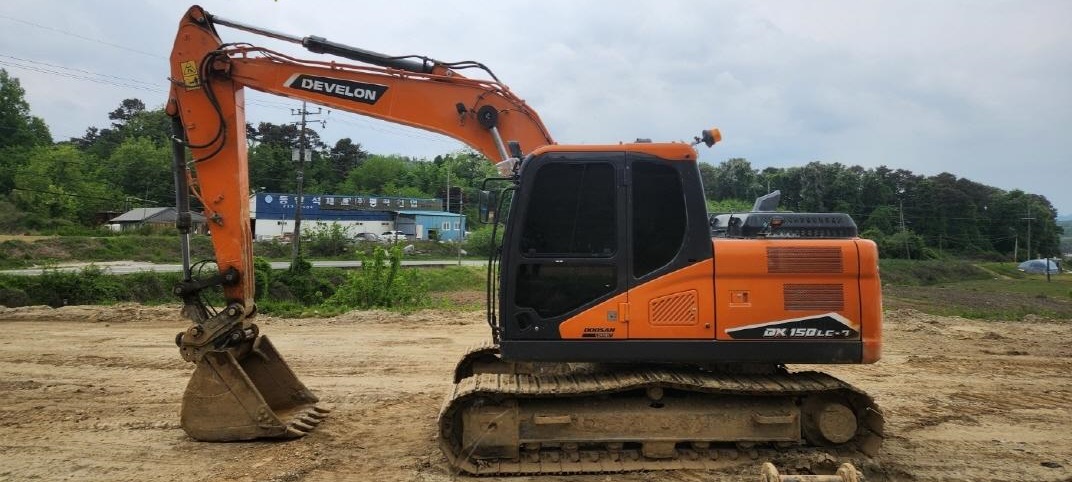

DOOSAN DX150LC-10
Specifications & Parameters
| Engine Model | DEVELON DN03 |
| Rated Power(kW) | 75 |
| Engine Revolutions(rpm) | 2400 |
| Maximum Torque(N·m) | 375 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 6.2-7.8 |
| Engine Displacement(L) | 3.409 |
| Emisson | Stage IV |
| Track width(mm) | 600 |
| Fuel Tank(L) | 265 |
| Hydraulic Tank(L) | 145 |
| Travel Speed(km/h) | 5.1 |
| Bucket Capacity(m³) | 0.58 |
| Bucket Digging Force(kN) | 105 |
| Boom Length(mm) | 4600 |
| Stick Length(mm) | 2500 |
| Maximum Excavation Radius(mm) | 8460 |
| Maximum Digging Height(mm) | 6315 |
| Maximum Digging Depth(mm) | 5623 |
| Specifications(mm) | 7730×2600×2788 |
| Operating Weight(kg&ton) | 14000 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Doosan DN03 four‑cylinder electronically controlled diesel engine delivers stable power output, compliant with higher emission standards with DPF after‑treatment system
SPC3 intelligent power control system dynamically matches engine torque and pump displacement for optimized fuel consumption under variable‑load working conditions
Dual variable‑displacement main pumps with total flow 228 L/min, boom flow regeneration shortens cycle time and reduces overall fuel loss
One‑touch power‑boost function provides instant breakout force for heavy digging and rock‑breaker continuous operation
Heavy‑duty reinforced LC long‑track undercarriage reduces ground pressure, guarantees stable performance during side‑lifting and slope excavation
High‑rigidity reinforced boom‑arm assembly with hardened bushings and wear‑resistant plates adapts to long‑time high‑impact breaking tasks
Factory‑pre‑installed adjustable auxiliary hydraulic circuit supports breakers, grapples and other working attachments without extra pipe modification
Large‑size touch‑screen monitor supports multi‑language operation, real‑time fault diagnosis and adjustable auxiliary‑flow preset settings
DEVELON CONNECT telematics enables remote machine monitoring, position tracking and early fault warning for fleet management
Full‑enclosed shock‑absorbing ROPS/FOPS cabin with heated air‑suspension seat improves operator comfort for long‑hour shifts
Centralized ground‑level service layout simplifies daily inspection and filter replacement, compact dimensions for convenient road transportation
Interested in used DOOSAN DX150LC-10 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
Photos
