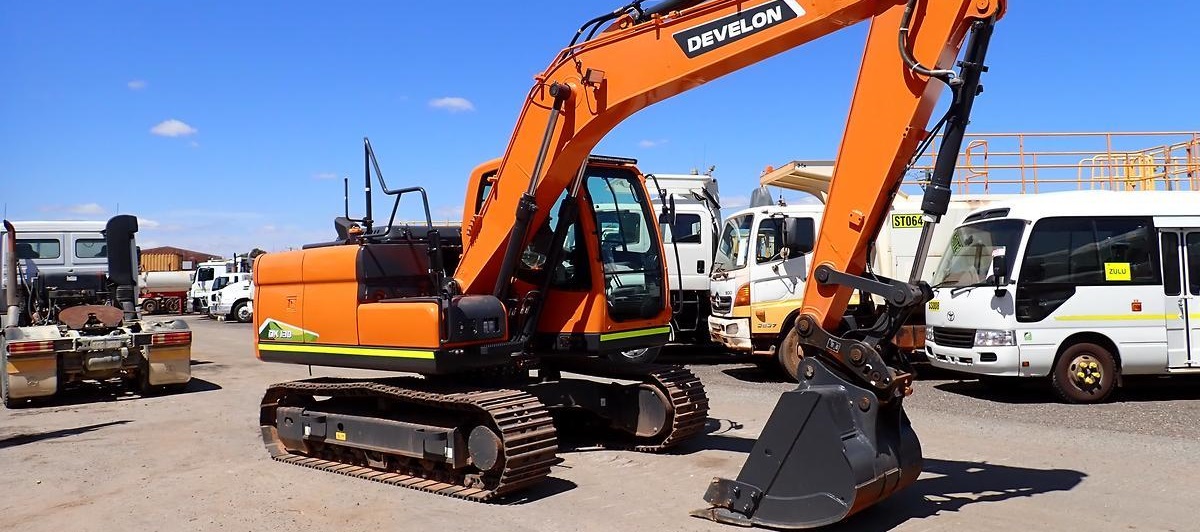

DOOSAN DX130-10
Specifications & Parameters
| Engine Model | DEVELON DN03 |
| Rated Power(kW) | 75 |
| Engine Revolutions(rpm) | 2400 |
| Maximum Torque(N·m) | 375 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 6-7.5 |
| Engine Displacement(L) | 4.08 |
| Emisson | Stage IV |
| Track width(mm) | 400 |
| Fuel Tank(L) | 265 |
| Hydraulic Tank(L) | 145 |
| Travel Speed(km/h) | 4.5 |
| Bucket Capacity(m³) | 0.53 |
| Bucket Digging Force(kN) | 96.9 |
| Boom Length(mm) | 4600 |
| Stick Length(mm) | 2260 |
| Maximum Excavation Radius(mm) | 7937 |
| Maximum Digging Height(mm) | 6001 |
| Maximum Digging Depth(mm) | 5366 |
| Specifications(mm) | 7730×2540×2788 |
| Operating Weight(kg&ton) | 13055 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Doosan DN03 four‑cylinder electronically controlled diesel engine provides consistent power output, meets strict emission standards with DPF after‑treatment system
SPC3 intelligent power control system dynamically adjusts engine torque and pump displacement to balance digging performance and fuel consumption under different working loads
Dual variable‑displacement main pumps deliver precise hydraulic output, boom flow regeneration shortens working cycle time and cuts energy loss
One‑touch power‑boost function supplies instant breakout force for hard‑soil excavation and continuous rock‑breaker operation
Reinforced LC long‑track undercarriage optimizes ground pressure, ensures stable performance for side‑lifting and slope‑excavation tasks
High‑rigidity boom‑arm assembly with hardened bushings and wear‑resistant plates withstands long‑time high‑impact digging and breaking cycles
Pre‑installed adjustable auxiliary hydraulic circuit supports quick installation of breakers, grapples and other attachments without extra pipe rework
Large multi‑language touch‑screen monitor supports real‑time fault diagnosis and customizable auxiliary‑flow presets for different tools
DEVELON CONNECT telematics system enables remote equipment monitoring, position tracking and early fault warning for fleet management
Fully‑enclosed shock‑absorbing ROPS/FOPS cabin equipped with heated air‑suspension seat enhances comfort during long‑duration work shifts
Centralized ground‑level service layout simplifies daily inspection and filter replacement, compact overall size for easy road transportation
Interested in used DOOSAN DX130-10 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
