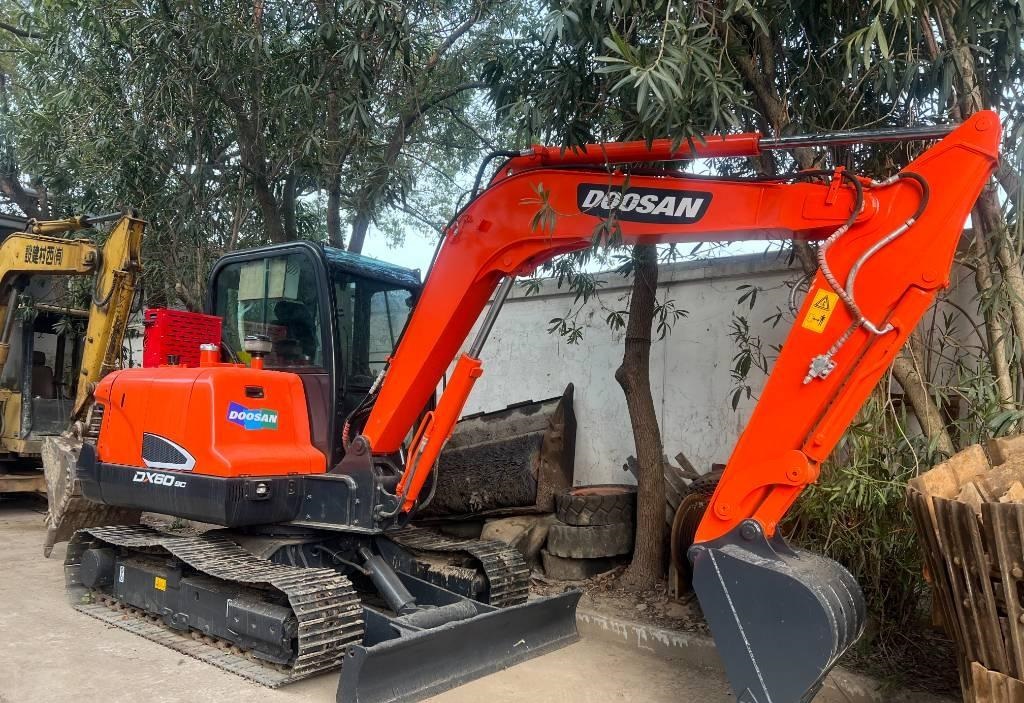

Used DOOSAN DX60 ACE-10
Parameters
| Engine Model | YANMAR 4TNV94L |
| Rated Power(kW) | 36.5 |
| Engine Revolutions(rpm) | 2200 |
| Maximum Torque(N·m) | 162 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 3.2-4 |
| Engine Displacement(L) | 3.05 |
| Emisson | Stage IV |
| Track width(mm) | 400 |
| Fuel Tank(L) | 115 |
| Hydraulic Tank(L) | 62 |
| Travel Speed(km/h) | 4.3 |
| Bucket Capacity(m³) | 0.23 |
| Bucket Digging Force(kN) | 42 |
| Boom Length(mm) | 2700 |
| Stick Length(mm) | 1600 |
| Maximum Excavation Radius(mm) | 6300 |
| Maximum Digging Height(mm) | 4064 |
| Maximum Digging Depth(mm) | 3807 |
| Specifications(mm) | 5870×2000×2580 |
| Operating Weight(kg&ton) | 5730 |
| Size Class | Mini |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
Fuel-Saving YANMAR 4TNV94L Common Rail Diesel Engine
Inline four-cylinder 3.05L diesel engine, rated power 36.2kW. Compliant with China Non-Road Stage IV emission standard, equipped with DOC+DPF particulate filter, urea refilling required. Stable low-speed torque with nationwide spare parts support and low daily operating cost.
ACE Advanced Load Sensing Electronic Controlled Hydraulic System
Dual genuine Doosan Mottrol variable displacement piston main pumps total flow 80L/min, boom & arm energy regeneration reduces fuel consumption by 8%, factory pre-installed auxiliary breaker line for small 68/75 hydraulic breakers. Hydraulic tank capacity 62L, full system oil volume 105L.
Wide Stable Reinforced Compact Undercarriage
1600mm wide track gauge with 400mm steel/rubber track shoes, low ground pressure ensures stable operation in narrow urban zones, optional rubber tracks protect asphalt pavement.
Lightweight Reinforced Working Attachment
Thickened boom & arm with optimized welding structure, durable for daily trenching, loading and light breaking cycles. Compact overall dimension 5870×2000×2580mm, easy transportation on light trucks without oversize limit.
Spacious Comfort Operator Cabin
Full shock-absorbing enclosed cabin with auto air conditioning, reclining suspension seat and color LCD monitor, centralized filter layout for fast daily maintenance.
Interested in this excavator? Leave us a message through the contact form on our website or click the WhatsApp button for a faster response from our sales team. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
