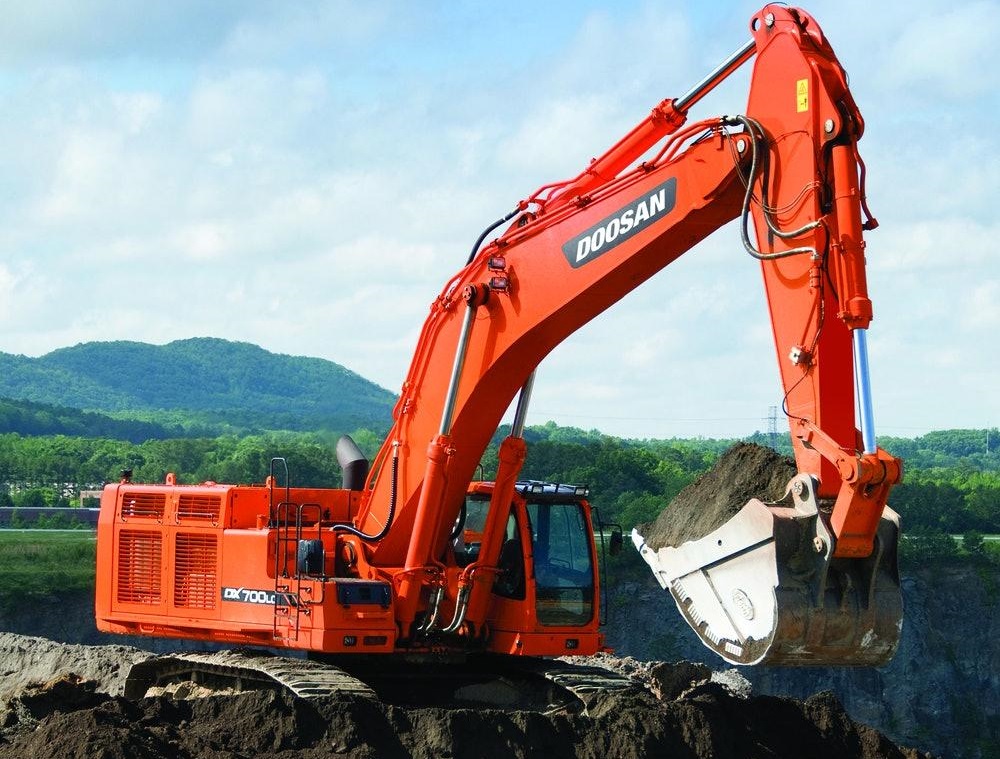

Doosan DX700LC-9C
Specifications & Parameters
| Engine Model | ISUZU AH-6WG1XYSC-01 |
| Rated Power(kW) | 345 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 1981 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 19-23 |
| Engine Displacement(L) | 15.681 |
| Emisson | Stage III |
| Track width(mm) | 650 |
| Fuel Tank(L) | 1100 |
| Hydraulic Tank(L) | 620 |
| Travel Speed(km/h) | 4.8 |
| Bucket Capacity(m³) | 4 |
| Bucket Digging Force(kN) | 350 |
| Boom Length(mm) | 6650 |
| Stick Length(mm) | 2900 |
| Maximum Excavation Radius(mm) | 12480 |
| Maximum Digging Height(mm) | 8630 |
| Maximum Digging Depth(mm) | 8160 |
| Specifications(mm) | 13250×3560×4220 |
| Operating Weight(kg&ton) | 70300 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Ultra High-Torque ISUZU AH-6WG1XYSC-01 Six-Cylinder Turbocharged Common Rail Diesel Engine
Inline six-cylinder 15.681L diesel engine, rated net power 345kW. Compliant with China Non-Road Mobile Machinery Stage III Emission Standard, adopts cooled EGR technology without urea SCR or DPF, no urea refilling required. Massive 1981 N·m low-speed torque reserve for extreme heavy mining tasks with full nationwide spare parts supply and ultra-low long-term mine maintenance cost.
Full HD Heavy-Duty Reinforced Mining Working Attachment
Boom & arm main plate thickness increased by 25%, reinforced welds, bushings, pins and wear plates, short arm design effectively eliminates hammer bounce during 24-hour continuous hard rock breaking and stripping cycles.
e-EPOS Electronic Cross-Sensing High-Flow Hydraulic System
Dual tandem variable displacement piston main pumps total flow 872L/min, dual large-displacement swing motors deliver powerful swing torque, triple energy regeneration circuit cuts fuel consumption by 15%, factory pre-installed electronically adjustable large-flow auxiliary hydraulic line for super heavy 230/240 hydraulic breakers. Hydraulic tank capacity 620L, full system oil volume 780L.
LC Extra Ultra-Wide Reinforced Mining Undercarriage
LC full name: Long Chassis. 3100mm ultra-wide track gauge with 12 lower support rollers and 650mm thick triple-grip mining track shoes, extended ground contact length reduces ground pressure to avoid sinking on muddy coal mine & soft ore ground, superior stability for heavy side lifting and high-slope mining operation.
Extra Large-Capacity Standard HD Rock Bucket & Convenient Mine Transport
Standard 4.0m³ reinforced heavy rock bucket greatly improves open-pit mine loading cycle efficiency, overall dimension 13250×3560×4220mm, fully transportable on heavy low-bed flatbed trucks for cross-site large open-pit mine operations.
ROPS & FOPS Certified Premium Heavy-Duty Mine Operator Cabin
Full shock-absorbing operator cabin with ROPS (Roll Over Protective Structure) & FOPS (Falling Object Protective Structure), equipped with auto air conditioning, heated pneumatic suspension seat, built-in hot&cool box, 12-inch touch LCD monitor, standard rear wide-angle camera, dedicated breaker control pedal valve and automatic central greasing system.
Interested in used Doosan DX700LC-9C excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
