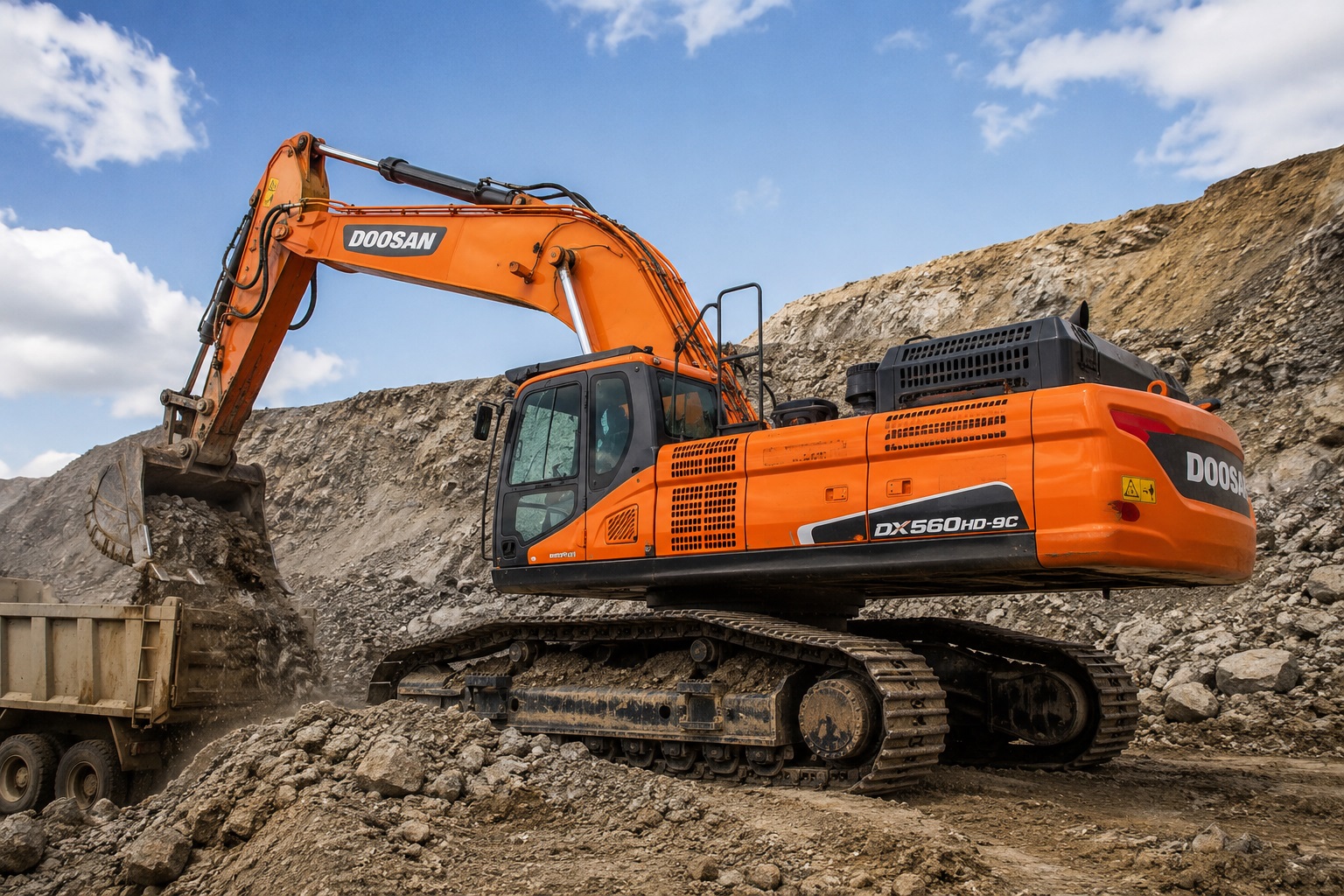

DOOSAN DX560HD-9C
Specifications & Parameters
| Engine Model | SCANIA DC13 |
| Rated Power(kW) | 294 |
| Engine Revolutions(rpm) | 2100 |
| Maximum Torque(N·m) | 1420 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 16-19 |
| Engine Displacement(L) | 12.7 |
| Emisson | Stage III |
| Track width(mm) | 700 |
| Fuel Tank(L) | 720 |
| Hydraulic Tank(L) | 450 |
| Travel Speed(km/h) | 5.6 |
| Bucket Capacity(m³) | 3.6 |
| Bucket Digging Force(kN) | 463 |
| Boom Length(mm) | 6400 |
| Stick Length(mm) | 2650 |
| Maximum Excavation Radius(mm) | 11540 |
| Maximum Digging Height(mm) | 7990 |
| Maximum Digging Depth(mm) | 7015 |
| Specifications(mm) | 12660×3490×3620 |
| Operating Weight(kg&ton) | 53900 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
High-Torque SCANIA DC13 Six-Cylinder Turbocharged Common Rail Diesel Engine
Inline six-cylinder 12.7L diesel engine, rated power 294kW. Compliant with China Non-Road Mobile Machinery Stage III Emission Standard, adopts EGR technology without urea SCR or DPF, no urea refilling required. Massive low-speed torque reserve for heavy mining breaking tasks with widely available spare parts and low long-term mine maintenance expense.
HD Heavy-Duty Reinforced Breaker-Specialized Working Attachment
HD full name: Heavy Duty. Boom & arm plate thickness increased by 20%, reinforced welds, bushings and wear plates, short arm design effectively prevents hammer bounce during continuous hard rock breaking.
FEH Full Electronic Controlled High-Flow VBO Load-Sensing Hydraulic System
Dual genuine Rexroth variable displacement piston main pumps total flow 750L/min, dual swing motors deliver powerful swing torque, triple energy regeneration circuit cuts fuel consumption by 14%, factory pre-installed electronically adjustable large-flow auxiliary hydraulic line for heavy 210 hydraulic breakers. Hydraulic tank capacity 450L, full system oil volume 560L.
LC Extra Wide Reinforced Mining Undercarriage
LC full name: Long Chassis. 2940mm ultra-wide track gauge with 10 lower support rollers and 700mm thick double-grip mining track shoes, extended ground contact length reduces ground pressure to avoid sinking on muddy mine ground, superior stability for continuous heavy rock breaking and side lifting.
Extra Large-Capacity Standard HD Rock Bucket & Convenient Transport
Standard 3.60m³ reinforced heavy rock bucket greatly improves post-breaking stone loading cycle efficiency, overall dimension 12660×3490×3620mm, fully transportable on heavy flatbed trucks for cross-site large open-pit mine operations.
ROPS & FOPS Certified Premium Mine Operator Cabin
Full shock-absorbing operator cabin with ROPS (Roll Over Protective Structure) & FOPS (Falling Object Protective Structure), equipped with auto air conditioning, heated pneumatic suspension seat, built-in mini fridge, 10-inch touch LCD monitor, standard rear view camera and dedicated breaker control pedal valve.
