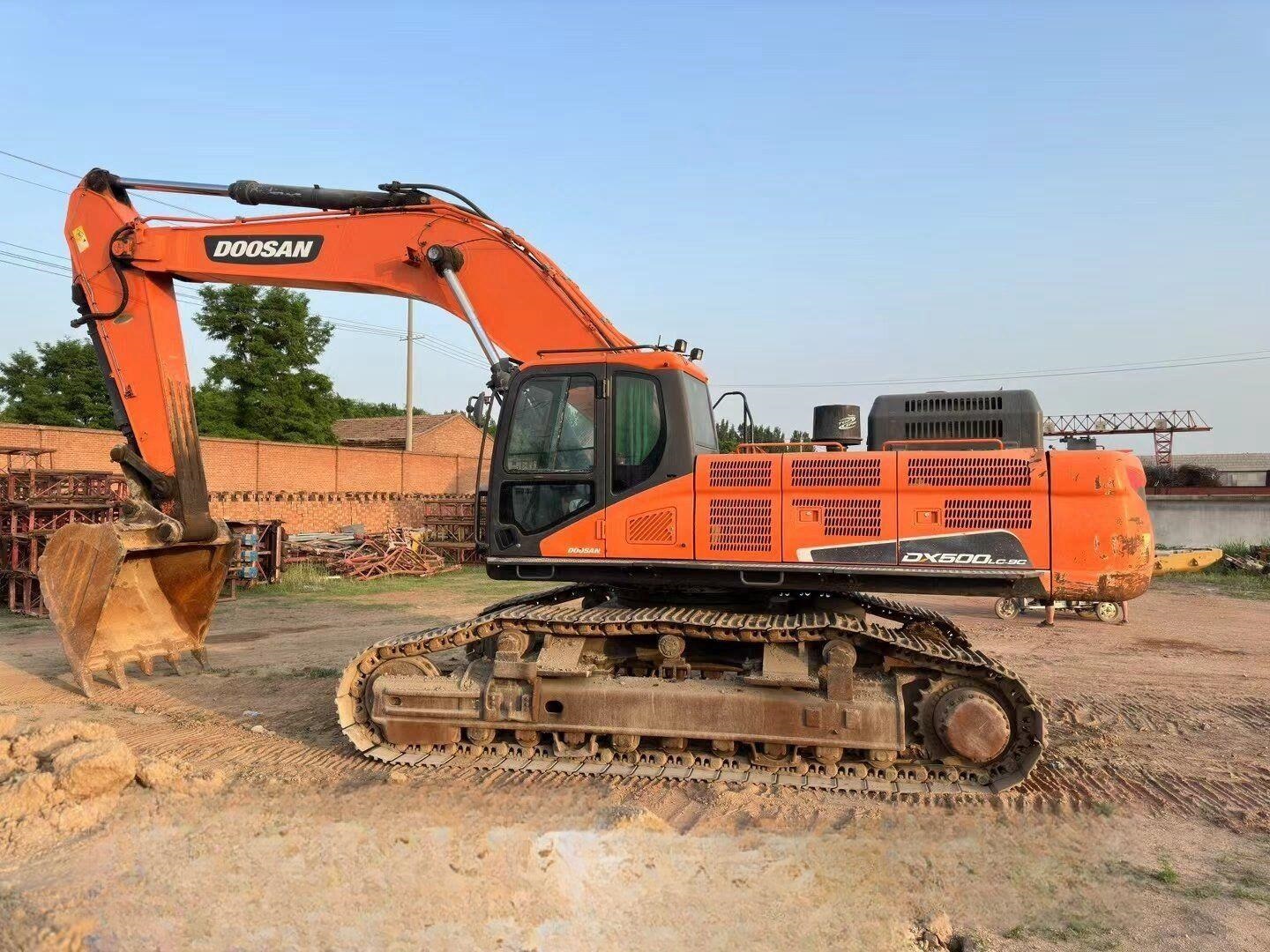

DOOSAN DX500HD-9C
Specifications & Parameters
| Engine Model | SCANIA DC13 |
| Rated Power(kW) | 294 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 1363 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 15.5-18.5 |
| Engine Displacement(L) | 12.7 |
| Emisson | Stage III |
| Track width(mm) | 600 |
| Fuel Tank(L) | 680 |
| Hydraulic Tank(L) | 410 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 3.2 |
| Bucket Digging Force(kN) | 295 |
| Boom Length(mm) | 7100 |
| Stick Length(mm) | 2900 |
| Maximum Excavation Radius(mm) | 11720 |
| Maximum Digging Height(mm) | 10920 |
| Maximum Digging Depth(mm) | 7340 |
| Specifications(mm) | 12230×3490×3580 |
| Operating Weight(kg&ton) | 50500 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2019 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
High-Torque SCANIA DC13 Six-Cylinder Turbocharged Common Rail Diesel Engine
Inline six-cylinder 12.7L diesel engine, rated power 257kW. Compliant with China Non-Road Mobile Machinery Stage III Emission Standard, adopts EGR technology without urea SCR or DPF, no urea refilling required. Massive low-speed torque reserve for heavy mining breaking tasks with widely available spare parts and low long-term mine maintenance expense.
HD Heavy-Duty Reinforced Breaker-Specialized Working Attachment
HD full name: Heavy Duty. Boom & arm plate thickness increased by 18%, reinforced welds, bushings and wear plates, short arm design effectively prevents hammer bounce during continuous hard rock breaking.
FEH Full Electronic Controlled High-Flow VBO Load-Sensing Hydraulic System
Dual genuine Rexroth variable displacement piston main pumps total flow 700L/min, dual swing motors deliver powerful swing torque, triple energy regeneration circuit cuts fuel consumption by 13%, factory pre-installed electronically adjustable large-flow auxiliary hydraulic line for heavy 200/205 hydraulic breakers. Hydraulic tank capacity 410L, full system oil volume 500L.
LC Extra Wide Reinforced Mining Undercarriage
LC full name: Long Chassis. 2940mm ultra-wide track gauge with 10 lower support rollers and 700mm thick double-grip mining track shoes, extended ground contact length reduces ground pressure to avoid sinking on muddy mine ground, superior stability for continuous heavy rock breaking and side lifting.
Extra Large-Capacity Standard HD Rock Bucket & Convenient Transport
Standard 3.0m³ reinforced heavy rock bucket greatly improves post-breaking stone loading cycle efficiency, overall dimension 12230×3490×3580mm, fully transportable on heavy flatbed trucks for cross-site large open-pit mine operations.
ROPS & FOPS Certified Premium Mine Operator Cabin
Full shock-absorbing operator cabin with ROPS (Roll Over Protective Structure) & FOPS (Falling Object Protective Structure), equipped with auto air conditioning, heated pneumatic suspension seat, built-in mini fridge, 10-inch touch LCD monitor, standard rear view camera and dedicated breaker control pedal valve.
Interested in used DOOSAN DX500HD-9C excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
