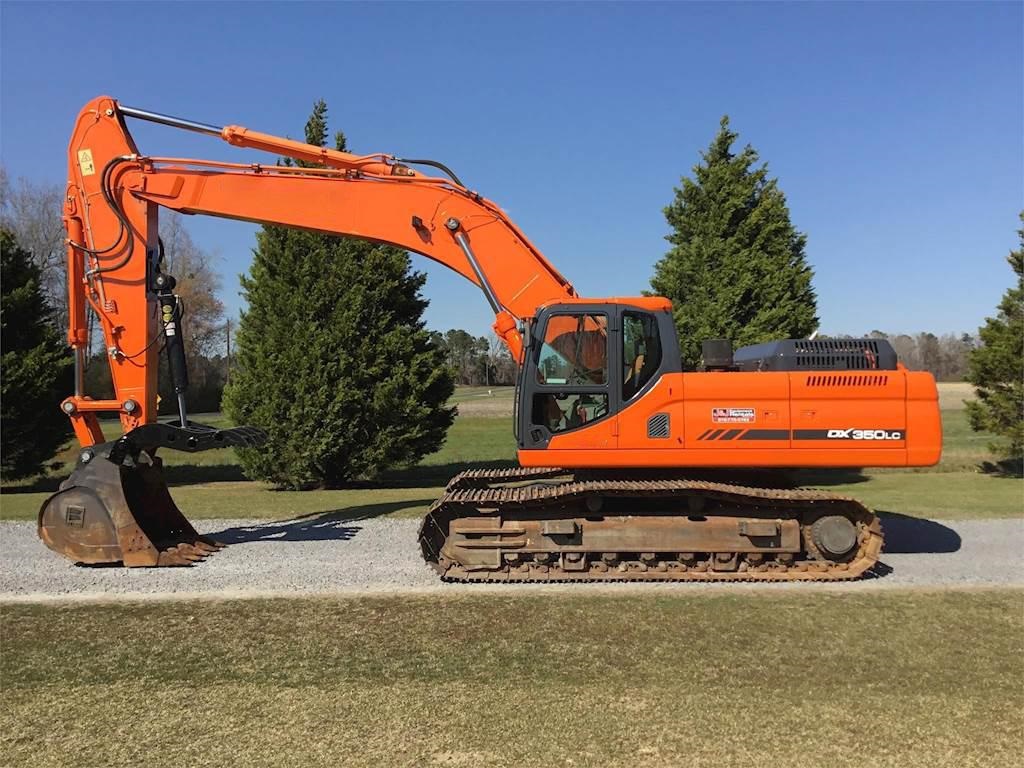

DOOSAN DX360LC-9C
Specifications & Parameters
| Engine Model | DC09 |
| Rated Power(kW) | 214 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 1100 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 12.5-15.5 |
| Engine Displacement(L) | 9.3 |
| Emisson | Stage III |
| Track width(mm) | 700 |
| Fuel Tank(L) | 640 |
| Hydraulic Tank(L) | 320 |
| Travel Speed(km/h) | 4.93 |
| Bucket Capacity(m³) | 1.71 |
| Bucket Digging Force(kN) | 241 |
| Boom Length(mm) | 6500 |
| Stick Length(mm) | 3200 |
| Maximum Excavation Radius(mm) | 11045 |
| Maximum Digging Height(mm) | 7461 |
| Maximum Digging Depth(mm) | 7461 |
| Specifications(mm) | 11319×3280×3070 |
| Operating Weight(kg&ton) | 36000 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
High-Torque SCANIA DC09 Five-Cylinder Turbocharged Common Rail Diesel Engine
Inline five-cylinder 9.3L diesel engine, rated power 214kW. Compliant with China Non-Road Mobile Machinery Stage III Emission Standard, adopts EGR technology without urea SCR or DPF, no urea refilling required. Massive low-speed torque reserve for heavy mining tasks with widely available spare parts and low long-term mine maintenance expense.
LC Extra Long Reinforced Mining Undercarriage
LC full name: Long Chassis. 2600mm wide track gauge with 10 lower support rollers and 700mm thick triple-grip mining track shoes, extended ground contact length cuts ground pressure to avoid sinking on muddy mine & river ground, superior stability for heavy side lifting and rock slope excavation.
FEH Full Electronic Controlled High-Flow VBO Load-Sensing Hydraulic System
Dual variable displacement piston main pumps total flow 558L/min, triple energy regeneration circuit reduces fuel consumption by 12%, factory pre-installed adjustable large-flow auxiliary hydraulic line for heavy hydraulic breakers up to 45-ton class. Hydraulic tank capacity 320L, full system oil volume 425L.
Reinforced Heavy Rock Working Attachment
Standard 1.71m³ heavy-duty reinforced rock bucket with thickened cutting edge & tooth holder, optional 1.95m³ large earth bucket & narrow trenching bucket, dedicated for open-pit overburden stripping and mass stone loading.
ROPS & FOPS Certified Mine Operator Cabin
Full shock-absorbing operator cabin with ROPS (Roll Over Protective Structure) & FOPS (Falling Object Protective Structure), equipped with auto air conditioning, 10-inch touch LCD monitor, standard rear view camera and fleet telematics system. Overall dimension 11319×3280×3070mm, fully transportable on heavy flatbed trucks for cross-site large open-pit mine operations.
Interested in used DOOSAN DX360LC-9C excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
Photos
