DOOSAN DX305HD-9C
Specifications & Parameters
| Engine Model | DL08 |
| Rated Power(kW) | 191 |
| Engine Revolutions(rpm) | 1900 |
| Maximum Torque(N·m) | 930 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 11.5-14 |
| Engine Displacement(L) | 7.64 |
| Emisson | Stage III |
| Track width(mm) | 700 |
| Fuel Tank(L) | 500 |
| Hydraulic Tank(L) | 290 |
| Travel Speed(km/h) | 5.7 |
| Bucket Capacity(m³) | 1.65 |
| Bucket Digging Force(kN) | 188 |
| Boom Length(mm) | 6245 |
| Stick Length(mm) | 3100 |
| Maximum Excavation Radius(mm) | 10920 |
| Maximum Digging Height(mm) | 7470 |
| Maximum Digging Depth(mm) | 7275 |
| Specifications(mm) | 10620×3200×3360 |
| Operating Weight(kg&ton) | 30800 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
High-Torque DOOSAN DL08 Six-Cylinder Turbocharged Common Rail Diesel Engine
Inline six-cylinder 7.64L diesel engine, rated power 191kW. Compliant with China Non-Road Mobile Machinery Stage III Emission Standard, adopts EGR technology without urea SCR or DPF, no urea refilling required. Massive low-speed torque reserve matches 33-ton class performance with widely available spare parts and low long-term mine maintenance expense.
HD Heavy-Duty Reinforced Working Attachment
HD full name: Heavy Duty. Fully thickened boom & arm with reinforced welds, bushings and wear plates, specially engineered for harsh long-hour rock breaking and heavy mass loading cycles.
FEH Full Electronic Controlled High-Flow VBO Load-Sensing Hydraulic System
Dual variable displacement piston main pumps total flow 544L/min, triple energy regeneration circuit reduces fuel consumption by 10%-15%, factory pre-installed adjustable large-flow auxiliary hydraulic line for heavy hydraulic breakers up to 38-ton class. Hydraulic tank capacity 290L, full system oil volume 385L.
LC Extra Long Reinforced Mining Undercarriage
LC full name: Long Chassis. 2540mm wide track gauge with 10 lower support rollers and 700mm thick mining track shoes, extended ground contact length cuts ground pressure to avoid sinking on muddy mine & river ground, superior stability for heavy side lifting and rock slope excavation.
Large-Capacity Standard HD Rock Bucket & Convenient Transport
Standard 1.65m³ heavy-duty reinforced rock bucket greatly improves quarry stripping & loading efficiency, overall dimension 10620×3200×3360mm, fully transportable on standard flatbed trucks for cross-site large open-pit mine operations.
ROPS & FOPS Certified Mine Operator Cabin
Full shock-absorbing operator cabin with ROPS (Roll Over Protective Structure) & FOPS (Falling Object Protective Structure), equipped with auto air conditioning, 10-inch touch LCD monitor and standard rear view camera.
Interested in used DOOSAN DX305HD-9C excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry

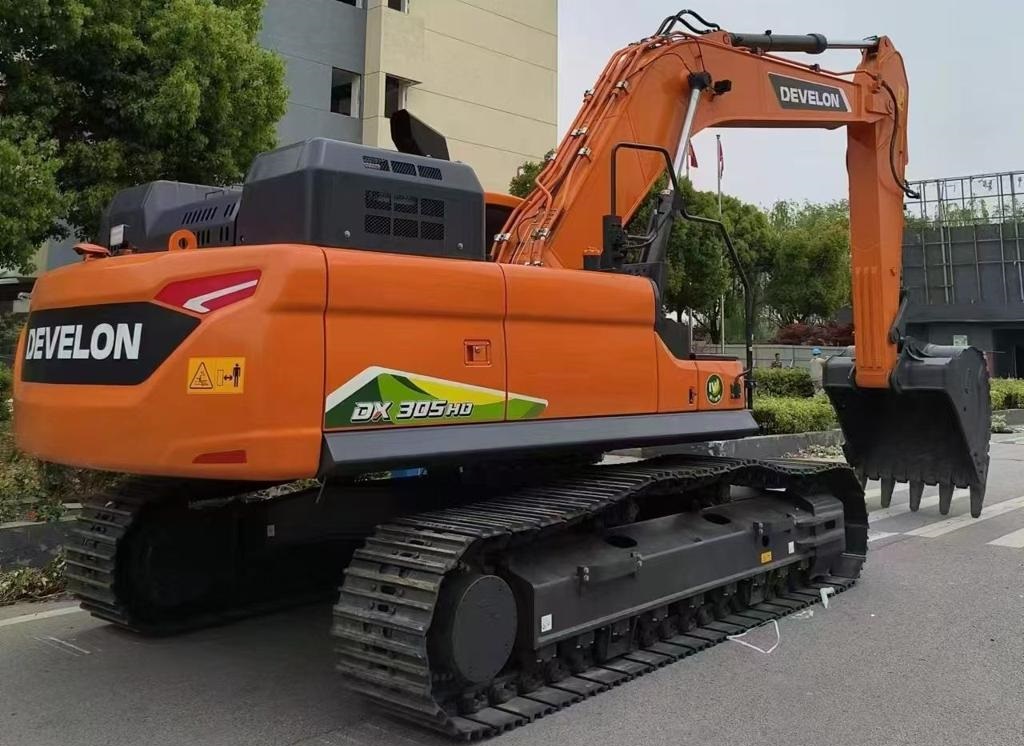

Photos
