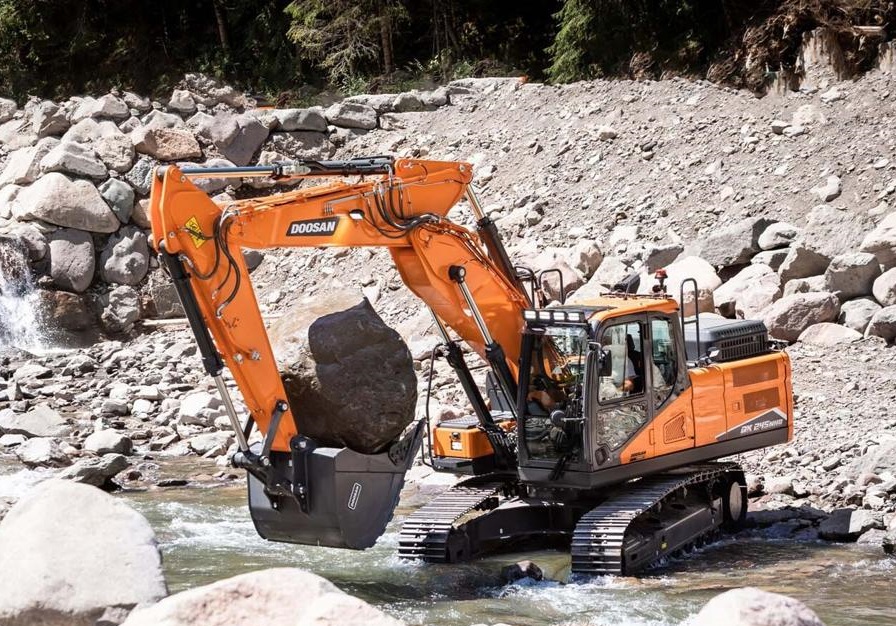

DOOSAN DX245HD-9C
Specifications & Parameters
| Engine Model | DL06 |
| Rated Power(kW) | 141.4 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 720 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 9.8-11.8 |
| Engine Displacement(L) | 5.89 |
| Emisson | Stage III |
| Track width(mm) | 700 |
| Fuel Tank(L) | 400 |
| Hydraulic Tank(L) | 195 |
| Travel Speed(km/h) | 5.2 |
| Bucket Capacity(m³) | 1.4 |
| Bucket Digging Force(kN) | 174 |
| Boom Length(mm) | 5700 |
| Stick Length(mm) | 2900 |
| Maximum Excavation Radius(mm) | 9873 |
| Maximum Digging Height(mm) | 6803 |
| Maximum Digging Depth(mm) | 6592 |
| Specifications(mm) | 10050×3200×3090 |
| Operating Weight(kg&ton) | 24500 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
High-Power DOOSAN DL06 Six-Cylinder Turbocharged Engine
Inline six-cylinder 5.89L common rail diesel engine, rated power 141.4kW, China Stage III with EGR only, no urea tank. High low-speed torque matches 26-ton class performance with affordable spare parts supply.
HD Reinforced Heavy-Duty Working Attachment
Thickened boom & arm specially designed for heavy rock loading & breaking, stronger welds and wear plates for long-hour harsh site operation.
FEH Full-Electric Controlled High-Flow Hydraulic System
Dual variable main pumps total flow 470L/min, triple energy regeneration reduces fuel consumption by 10%-15%, factory pre-installed large-flow breaker line for breakers up to 32-ton class. Hydraulic tank capacity 195L, full system oil volume 310L.
DX260 Same Extra Wide Mining Undercarriage
2480mm wide track gauge with 10 lower support rollers and 700mm thick mining track shoes, low ground pressure avoids sinking on muddy mine & river ground, superior stability for heavy side lifting.
Large-Capacity Standard HD Bucket & Convenient Transport
Standard 1.40m³ heavy earth bucket greatly improves loading efficiency, overall dimension 10050×3200×3090mm, fully transportable on standard flatbed trucks.
Interested in used DOOSAN DX245HD-9C excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
