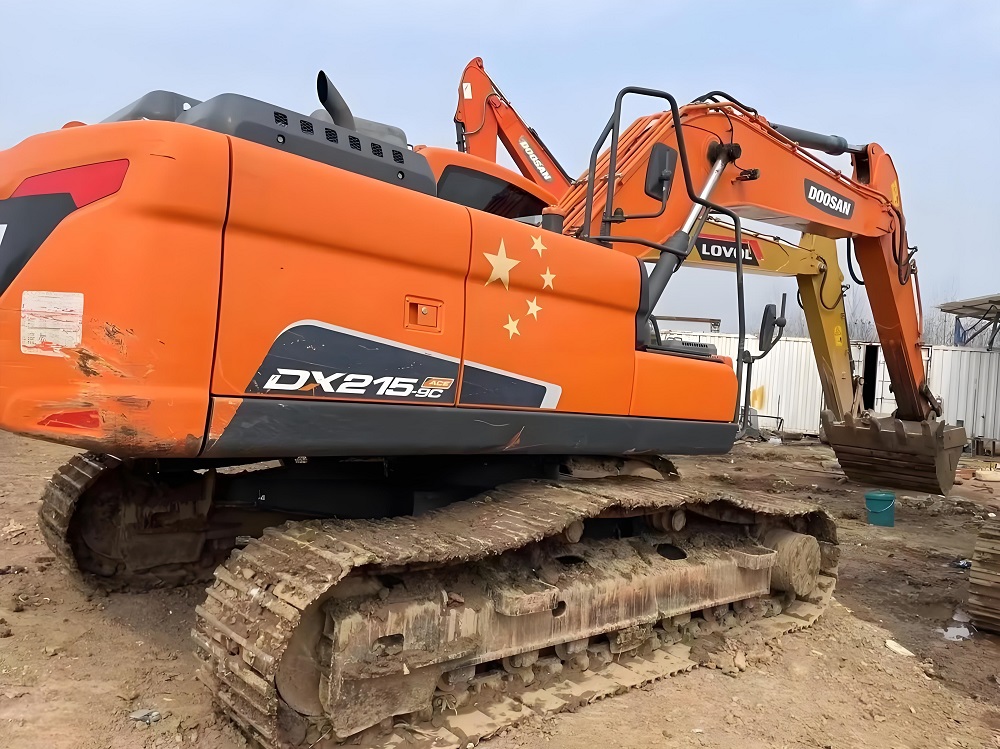

Doosan DX215-9C ACE
Specifications & Parameters
| Engine Model | DL06 |
| Rated Power(kW) | 115 |
| Engine Revolutions(rpm) | 1900 |
| Maximum Torque(N·m) | 648 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 8.2-10 |
| Engine Displacement(L) | 5.89 |
| Emisson | Stage V |
| Track width(mm) | 600 |
| Fuel Tank(L) | 400 |
| Hydraulic Tank(L) | 195 |
| Travel Speed(km/h) | 5.41 |
| Bucket Capacity(m³) | 0.92 |
| Bucket Digging Force(kN) | 153.9 |
| Boom Length(mm) | 5700 |
| Stick Length(mm) | 2900 |
| Maximum Excavation Radius(mm) | 9873 |
| Maximum Digging Height(mm) | 6803 |
| Maximum Digging Depth(mm) | 6592 |
| Specifications(mm) | 9506×2990×2985 |
| Operating Weight(kg&ton) | 20800 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Doosan DL06 six‑cylinder turbocharged common‑rail diesel engine, rated power 115kW, meets China Non‑Road Stage‑III emission standard with EGR technology, no urea‑SCR or DPF required
Optimized low‑speed torque output improves working efficiency, lower fuel consumption for long‑hour construction operation, spare parts are widely available and cost‑effective globally
EPOS electronic load‑sensing hydraulic system with dual variable‑displacement piston main pumps delivers fast response and smooth compound movements, energy regeneration reduces fuel consumption
Enhanced boom and arm structure with high‑strength steel plates, reinforced welding and wear‑resistant components, adapts to heavy‑load digging, trenching and rock‑breaking conditions
Factory pre‑installed auxiliary hydraulic piping supports hydraulic breakers and other attachments for multi‑purpose job‑site work
LC heavy‑duty undercarriage with 600 mm track shoes, stable performance on muddy, gravel and uneven ground for long‑time site work
Standard 0.92 m³ general‑purpose bucket, optional rock bucket for quarry and stone‑loading tasks
Spacious fully‑enclosed ROPS/FOPS operator cabin with shock absorption, air‑conditioning and rear‑view camera, comfortable for all‑day operation
Ground‑level centralized service points simplify daily inspection, filter replacement and routine maintenance work
Reliable medium excavator ideal for road construction, urban engineering, trenching, quarrying and general earth‑moving projects
Interested in used Doosan DX215-9C ACE excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
