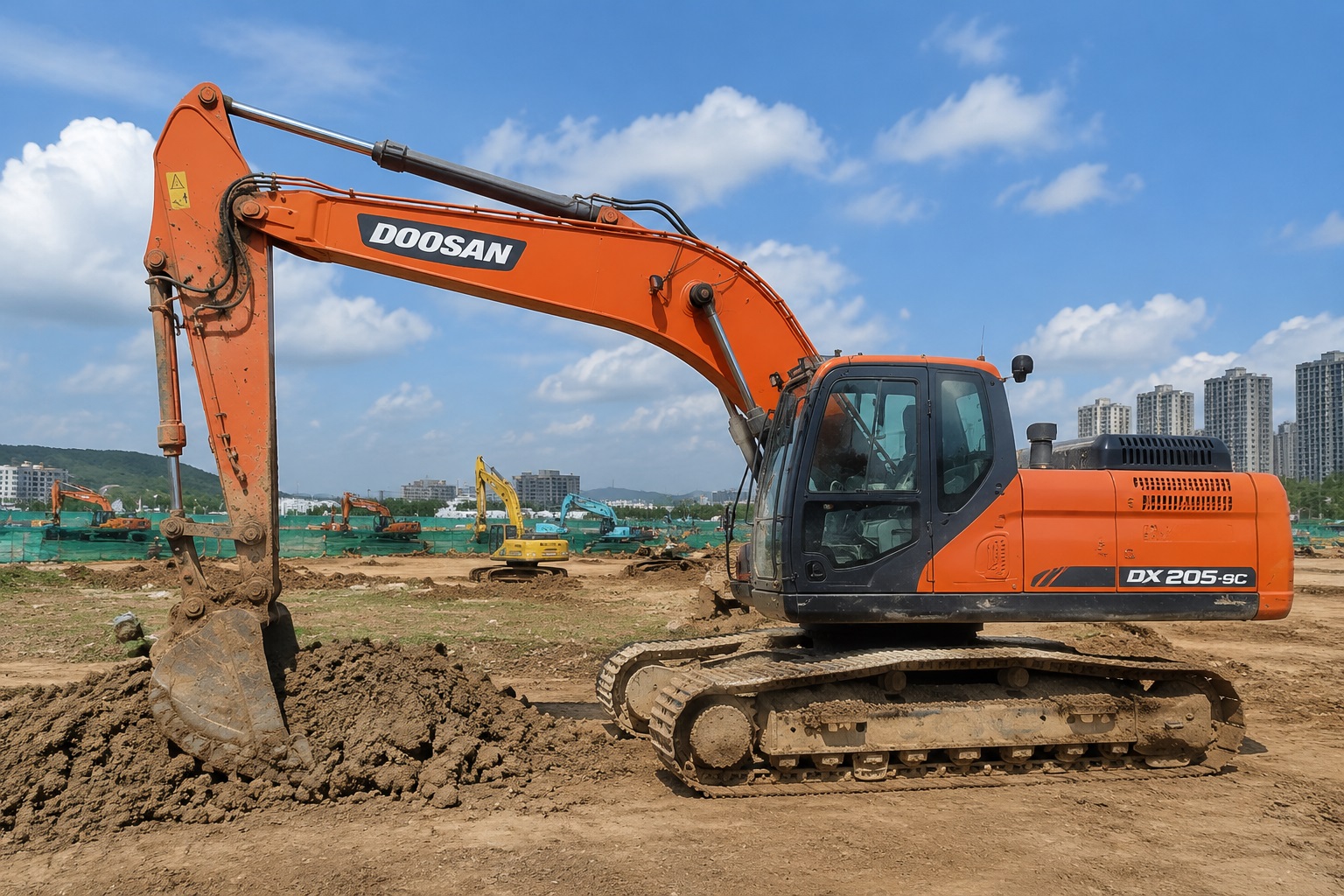

Doosan DX205-9C
Specifications & Parameters
| Engine Model | Perkins 1204EA |
| Rated Power(kW) | 110 |
| Engine Revolutions(rpm) | 2200 |
| Maximum Torque(N·m) | 520 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 8.8-10.8 |
| Engine Displacement(L) | 4.4 |
| Emisson | Stage V |
| Track width(mm) | 600 |
| Fuel Tank(L) | 400 |
| Hydraulic Tank(L) | 155 |
| Travel Speed(km/h) | 5.3 |
| Bucket Capacity(m³) | 0.92 |
| Bucket Digging Force(kN) | 141 |
| Boom Length(mm) | 5600 |
| Stick Length(mm) | 2600 |
| Maximum Excavation Radius(mm) | 9480 |
| Maximum Digging Height(mm) | 6582 |
| Maximum Digging Depth(mm) | 6111 |
| Specifications(mm) | 9280×2590×2965 |
| Operating Weight(kg&ton) | 19500 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2020 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Perkins 1204EA Turbocharged Common Rail Engine
Inline four-cylinder 4.4L diesel engine, rated power 110kW, China Stage III with EGR only, no urea tank. Widely available spare parts with low daily operation expense.
EPOS+ VBO Intelligent Load-Sensing Hydraulic System
Dual variable main pumps total flow 421.2L/min, SPC3 auto power matching reduces fuel consumption by 7%, factory pre-installed auxiliary breaker line for breakers up to 24-ton class. Hydraulic tank capacity 155L, full system oil volume 255L.
Stable Wide Reinforced Undercarriage
2190mm track gauge with 600mm track shoes, low ground pressure prevents sinking on soft muddy ground, excellent stability for slope digging and side lifting.
Versatile Standard Working Equipment
Standard 0.92m³ general earth bucket, optional narrow trenching bucket & extended arm for deep excavation, ideal for residential foundation, road construction and landscaping.
Compact Transportation Dimension
Overall dimension 9280×2590×2965mm, fully transportable on standard flatbed trucks for cross-site rental operations.
Interested in used Doosan DX205-9C excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
