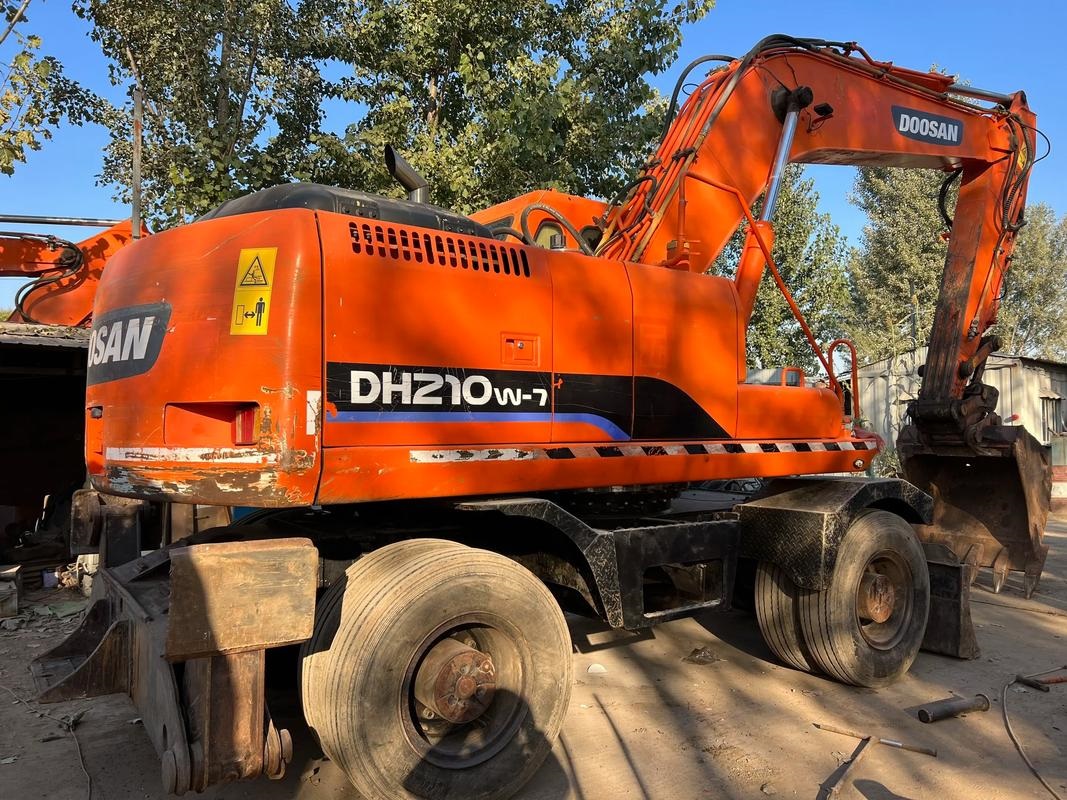

Doosan DH210W-7
Specifications & Parameters
| Engine Model | DB58TIS |
| Rated Power(kW) | 115 |
| Engine Revolutions(rpm) | 2200 |
| Maximum Torque(N·m) | 485 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 8.5-10.5 |
| Engine Displacement(L) | 5.785 |
| Emisson | Euro 3 |
| Track width(mm) | 700 |
| Fuel Tank(L) | 350 |
| Hydraulic Tank(L) | 160 |
| Travel Speed(km/h) | 35 |
| Bucket Capacity(m³) | 0.86 |
| Bucket Digging Force(kN) | 148 |
| Boom Length(mm) | 5700 |
| Stick Length(mm) | 2900 |
| Maximum Excavation Radius(mm) | 9896 |
| Maximum Digging Height(mm) | 6823 |
| Maximum Digging Depth(mm) | 6558 |
| Specifications(mm) | 9524×2470×3608 |
| Operating Weight(kg&ton) | 19800 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Wheel |
| Country of Origin | China |
| Year of Production | 2016 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Reliable DOOSAN DB58TIS Six-Cylinder Turbocharged Engine
Inline six-cylinder turbo diesel engine, displacement 5.785L, rated power 115kW. Early version Euro II without aftertreatment; late version Euro III only with EGR, no urea tank. Spare parts widely available with low daily maintenance expense.
High-Speed Wheeled Chassis
Max travel speed up to 35km/h, self-transit between urban job sites without flatbed truck, greatly reducing cross-site transfer cost. Equipped with front dozer blade + rear hydraulic outriggers for stable digging & breaking.
Load-Sensing Regenerative Dual-Pump Hydraulic System
Dual variable main pumps total flow 478L/min, smooth synchronized compound movements, factory pre-installed large-flow auxiliary hydraulic line for hydraulic breakers up to 24-ton class. Hydraulic tank capacity 160L, full system oil volume 265L.
Versatile Standard Working Equipment
Standard 0.86m³ general earth bucket, optional narrow trenching bucket & short arm for heavy breaking, ideal for municipal road, pipeline excavation and greening projects.
City-Friendly Transportation Dimension
Overall dimension 9524×2470×3608mm, road legal for urban traffic, perfect for emergency road repair and downtown construction.
Interested in used Doosan DH210W-7 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
Photos
