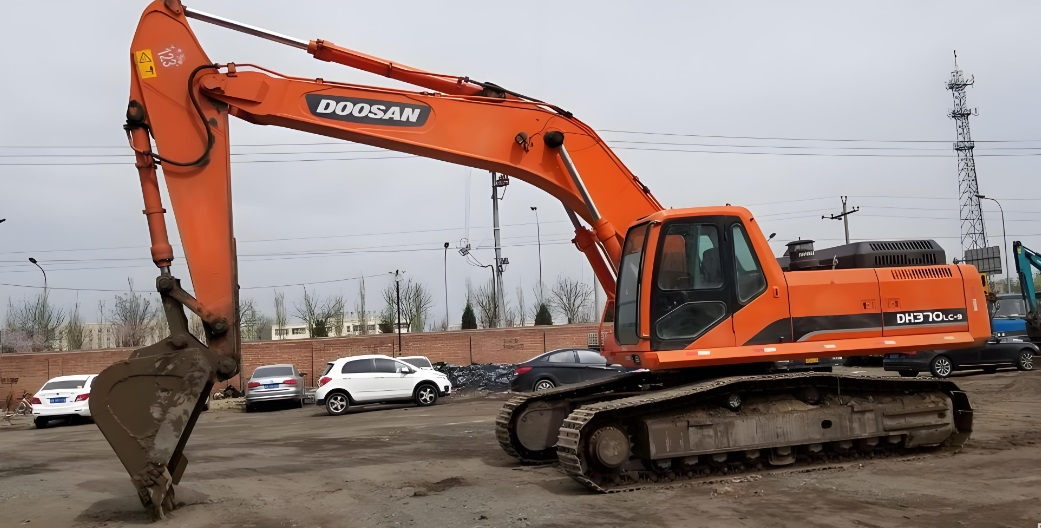

Doosan DH370LC-7
Specifications & Parameters
| Engine Model | DE12TIA |
| Rated Power(kW) | 202 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 590 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 13-16 |
| Engine Displacement(L) | 12 |
| Emisson | Euro 3 |
| Track width(mm) | 700 |
| Fuel Tank(L) | 550 |
| Hydraulic Tank(L) | 320 |
| Travel Speed(km/h) | 4.8 |
| Bucket Capacity(m³) | 1.45 |
| Bucket Digging Force(kN) | 226.4 |
| Boom Length(mm) | 6500 |
| Stick Length(mm) | 3200 |
| Maximum Excavation Radius(mm) | 11230 |
| Maximum Digging Height(mm) | 7245 |
| Maximum Digging Depth(mm) | 7858 |
| Specifications(mm) | 11310×3190×3560 |
| Operating Weight(kg&ton) | 37500 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2016 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Doosan DE12TIA‑C2 six‑cylinder turbo‑charged direct‑injection diesel engine, rated power 202kW, early version Euro‑II without after‑treatment, late version Euro‑III with EGR only, no urea tank
Strong low‑speed torque output supports heavy rock excavation, stripping and continuous hydraulic breaker work, proven durability for long‑hour quarry and mine operation, spare parts widely available worldwide
E‑EPOS electronic load‑sensing hydraulic system with dual variable displacement main pumps delivers high flow and powerful digging force, smooth compound movements for loading and breaking cycles
Mine‑spec reinforced boom & arm with thick steel plates, reinforced welds and wear‑resistant components, built for harsh quarry and open‑pit mining working conditions
Factory pre‑installed large‑flow auxiliary hydraulic circuit, fully compatible with heavy hydraulic breakers for rock‑breaking assignments
LC heavy‑duty mining undercarriage with 700 mm mining track shoes, low ground‑pressure design ensures stable performance on soft, muddy mine ground, excellent for side lifting and slope excavation
Standard 1.62‑2.01m³ heavy rock bucket, optional earth bucket for mass material loading in open‑pit sites
Comfortable operator cabin with good visibility, air‑conditioning and ergonomic layout for long‑time site operation
Ground‑level service access simplifies daily inspection, filter replacement and routine maintenance work
Robust 37‑ton class mining excavator, ideal for quarries, open‑pit mines, large earth‑moving and infrastructure projects
