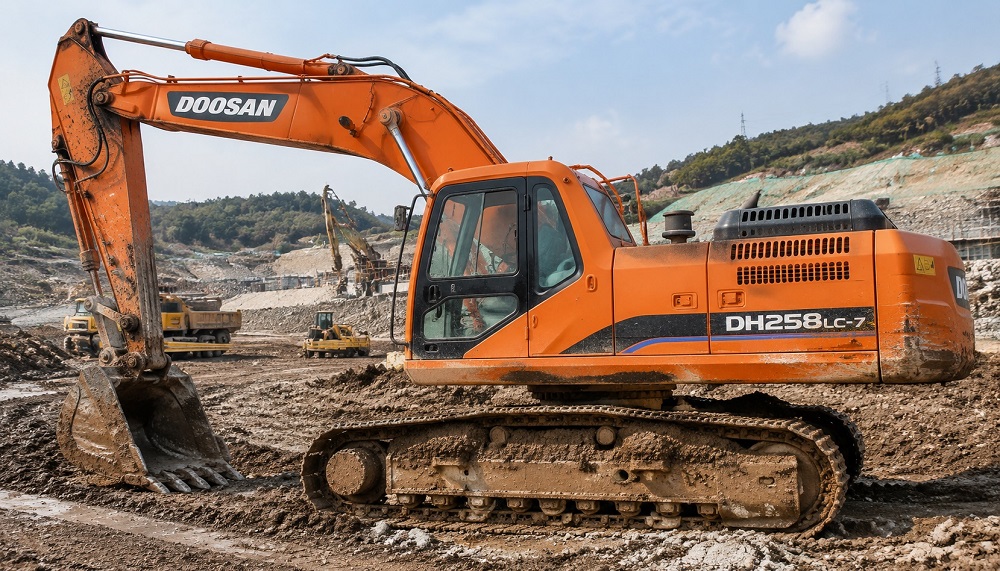

Used DOOSAN DH258LC-7
Parameters
| Engine Model | DE08TIS |
| Rated Power(kW) | 131 |
| Engine Revolutions(rpm) | 1900 |
| Maximum Torque(N·m) | 485 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 10-12.5 |
| Engine Displacement(L) | 8.07 |
| Emisson | Euro 3 |
| Track width(mm) | 700 |
| Fuel Tank(L) | 380 |
| Hydraulic Tank(L) | 180 |
| Travel Speed(km/h) | 5.2 |
| Bucket Capacity(m³) | 1.2 |
| Bucket Digging Force(kN) | 156.8 |
| Boom Length(mm) | 5900 |
| Stick Length(mm) | 3000 |
| Maximum Excavation Radius(mm) | 10430 |
| Maximum Digging Height(mm) | 6640 |
| Maximum Digging Depth(mm) | 6790 |
| Specifications(mm) | 10110×2710×3250 |
| Operating Weight(kg&ton) | 24600 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2016 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
High-Torque DOOSAN DE08TIS Six-Cylinder Turbocharged Engine
Inline six-cylinder turbo diesel engine, displacement 8.07L, rated power 131kW. Early version Euro II without aftertreatment; late version Euro III only with EGR, no urea tank. Abundant spare parts supply with low maintenance expense.
LC Extra Long Heavy-Duty Undercarriage
2480mm wide track gauge with 700mm track shoes and extended ground contact length, low ground pressure prevents sinking on muddy river & soft soil, excellent stability for heavy lifting and slope excavation.
High-Flow Regenerative Dual-Pump Hydraulic System
Dual variable main pumps total flow 448L/min, smooth synchronized compound movements, optional large-flow auxiliary hydraulic line for heavy breakers up to 30-ton class. Hydraulic tank capacity 180L, full system oil volume 310L.
Heavy-Duty Rock Working Equipment
Standard 1.20m³ rock bucket with reinforced cutting edge, optional short arm for rock breaking & long arm for deep dredging, ideal for quarry, foundation and mass earthmoving jobs.
Standard Transportation Dimension
Overall dimension 10110×2710×3250mm, fully transportable on standard flatbed trucks for cross-site mining & construction operations.
Interested in this excavator? Leave us a message through the contact form on our website or click the WhatsApp button for a faster response from our sales team. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
