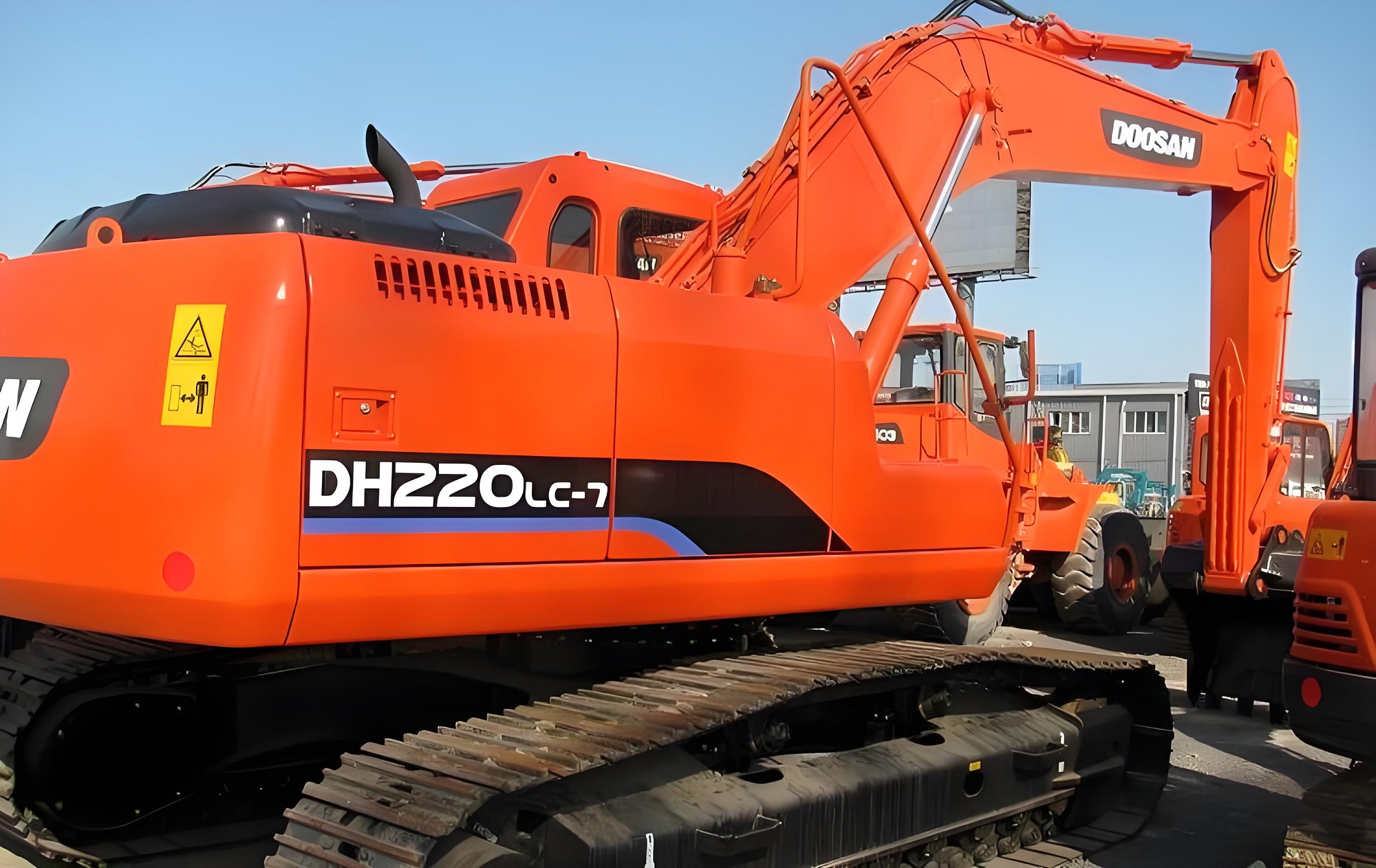

DOOSAN DH220LC-7
Specifications & Parameters
| Engine Model | DB58TI |
| Rated Power(kW) | 108 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 485 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 9.2-11.5 |
| Engine Displacement(L) | 5.8 |
| Emisson | Euro 3 |
| Track width(mm) | 700 |
| Fuel Tank(L) | 350 |
| Hydraulic Tank(L) | 160 |
| Travel Speed(km/h) | 5.4 |
| Bucket Capacity(m³) | 1.05 |
| Bucket Digging Force(kN) | 144.1 |
| Boom Length(mm) | 5700 |
| Stick Length(mm) | 2900 |
| Maximum Excavation Radius(mm) | 9970 |
| Maximum Digging Height(mm) | 6810 |
| Maximum Digging Depth(mm) | 6660 |
| Specifications(mm) | 9550×2990×3030 |
| Operating Weight(kg&ton) | 21400 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2016 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Reliable DOOSAN DB58TI Six-Cylinder Turbocharged Engine
Inline six-cylinder turbo diesel engine, displacement 5.8L, rated power 108kW. Early version Euro II without aftertreatment; late version Euro III only with EGR, no urea tank. Spare parts widely available with low daily maintenance expense.
LC Long Reinforced Heavy-Duty Undercarriage
2390mm track gauge with 700mm wide track shoes and extended ground contact length, low ground pressure prevents sinking on muddy river & soft soil, stable for slope digging and side lifting operations.
Load-Sensing Regenerative Dual-Pump Hydraulic System
Dual variable main pumps total flow 304L/min, smooth synchronized compound movements, factory pre-installed large-flow auxiliary hydraulic line for hydraulic breakers up to 26-ton class. Hydraulic tank capacity 160L, full system oil volume 270L.
High-Capacity Standard Working Equipment
Standard 1.05m³ general earth bucket, optional short arm for heavy breaking & long arm for deep trenching, ideal for residential foundation, road construction and river dredging.
Standard Transportation Dimension
Overall dimension 9550×2990×3030mm, fully transportable on standard flatbed trucks with convenient cross-site transfer.
Interested in used DOOSAN DH220LC-7 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
