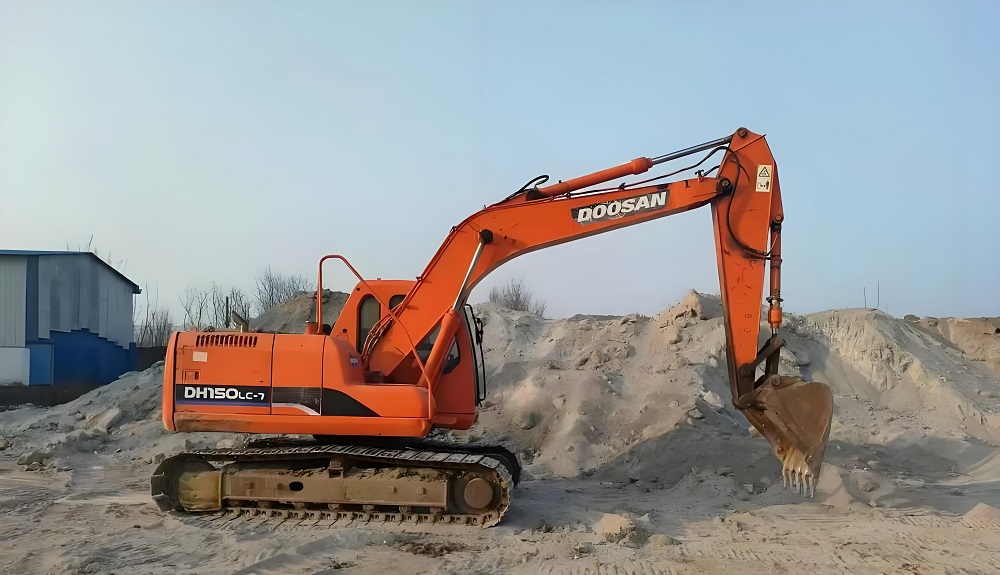

Used DOOSAN DH150LC-7
Parameters
| Engine Model | DB58TIS |
| Rated Power(kW) | 71 |
| Engine Revolutions(rpm) | 1850 |
| Maximum Torque(N·m) | 420 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 7.5-9.5 |
| Engine Displacement(L) | 5.8 |
| Emisson | Euro 2 |
| Track width(mm) | 600 |
| Fuel Tank(L) | 240 |
| Hydraulic Tank(L) | 140 |
| Travel Speed(km/h) | 4.9 |
| Bucket Capacity(m³) | 0.58 |
| Bucket Digging Force(kN) | 81.3 |
| Boom Length(mm) | 4600 |
| Stick Length(mm) | 2500 |
| Maximum Excavation Radius(mm) | 8260 |
| Maximum Digging Height(mm) | 6200 |
| Maximum Digging Depth(mm) | 5630 |
| Specifications(mm) | 7662×2490×2830 |
| Operating Weight(kg&ton) | 13900 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2016 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
Reliable DOOSAN DB58TIS Six-Cylinder Turbocharged Engine
Inline six-cylinder turbo diesel engine, displacement 5.8L, rated power 71kW. Early version Euro II without aftertreatment; late version Euro III only with EGR, no urea tank. Spare parts widely available with low daily maintenance expense.
LC Long Reinforced Heavy-Duty Undercarriage
1990mm track gauge with 600mm wide track shoes and extended ground contact length, low ground pressure prevents sinking on muddy river & soft soil, stable for slope digging and side lifting operations.
E-EPOS Load-Sensing Regenerative Dual-Pump Hydraulic System
Dual variable main pumps total flow 276L/min, smooth synchronized compound movements, factory pre-installed large-flow auxiliary hydraulic line for hydraulic breakers up to 18-ton class. Hydraulic tank capacity 140L, full system oil volume 235L.
Versatile Standard Working Equipment
Standard 0.58m³ general earth bucket, optional short arm for heavy breaking & long arm for deep trenching, ideal for road construction, river dredging and residential foundation backfilling.
Convenient Cross-Site Transportation
Compact overall dimension 7662×2490×2830mm, fully transportable on medium flatbed trucks with low transfer cost.
