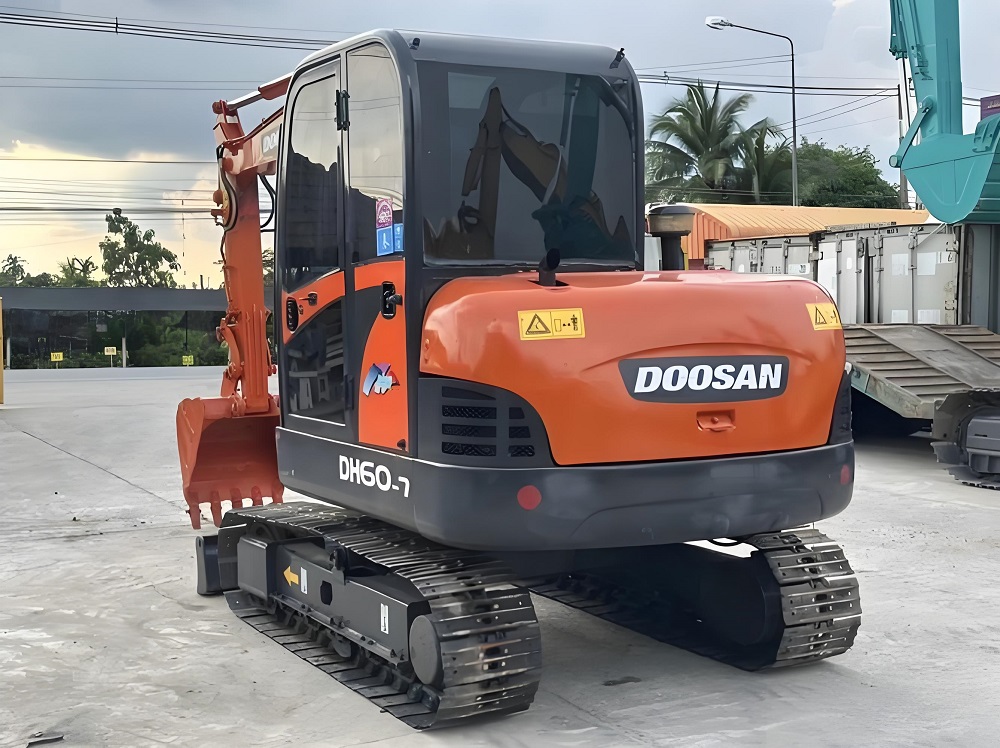

Doosan DH60-7
Specifications & Parameters
| Engine Model | YANMAR 4TNV94L |
| Rated Power(kW) | 38.1 |
| Engine Revolutions(rpm) | 2200 |
| Maximum Torque(N·m) | 182 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 3.2-4.2 |
| Engine Displacement(L) | 3.05 |
| Emisson | Euro 2 |
| Track width(mm) | 400 |
| Fuel Tank(L) | 120 |
| Hydraulic Tank(L) | 45 |
| Travel Speed(km/h) | 3.9 |
| Bucket Capacity(m³) | 0.2 |
| Bucket Digging Force(kN) | 37.7 |
| Boom Length(mm) | 3000 |
| Stick Length(mm) | 1600 |
| Maximum Excavation Radius(mm) | 6150 |
| Maximum Digging Height(mm) | 4030 |
| Maximum Digging Depth(mm) | 3820 |
| Specifications(mm) | 5850×1885×2575 |
| Operating Weight(kg&ton) | 5550 |
| Size Class | Mini |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2015 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Yanmar 4TNV94L four‑cylinder turbo‑charged diesel engine, rated power 38.1kW, early version Euro‑II without after‑treatment, late version Euro‑III only with EGR, no urea tank
Compact short‑tail swing design, rear swing radius keeps within tight boundaries, great maneuverability for narrow‑space job‑sites such as urban renovation, landscaping and rural pipeline projects
Wide‑track stable undercarriage with 450 mm track shoes, low ground‑pressure prevents sinking on soft muddy soil, reliable stability for slope digging and side‑lifting operations
Load‑sensing regenerative dual‑pump hydraulic system, dual variable main pumps deliver smooth synchronized compound movements, factory pre‑installed large‑flow auxiliary hydraulic line for hydraulic breakers up to 6‑ton class
Standard 0.20m³ general‑purpose bucket, optional narrow trenching bucket and short arm for rock‑breaking tasks, supports back‑filling, trenching and light demolition work
Comfortable compact operator cabin with good visibility, easy‑to‑operate control layout for long‑hour site work
Ground‑level service access simplifies daily inspection, filter replacement and routine maintenance, spare parts are widely available at low running‑cost
Compact 6‑ton mini excavator, easy for transportation on medium flatbed trucks, perfect for municipal works, garden greening, residential foundation and cross‑site rental business
Interested in used Doosan DH60-7 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
