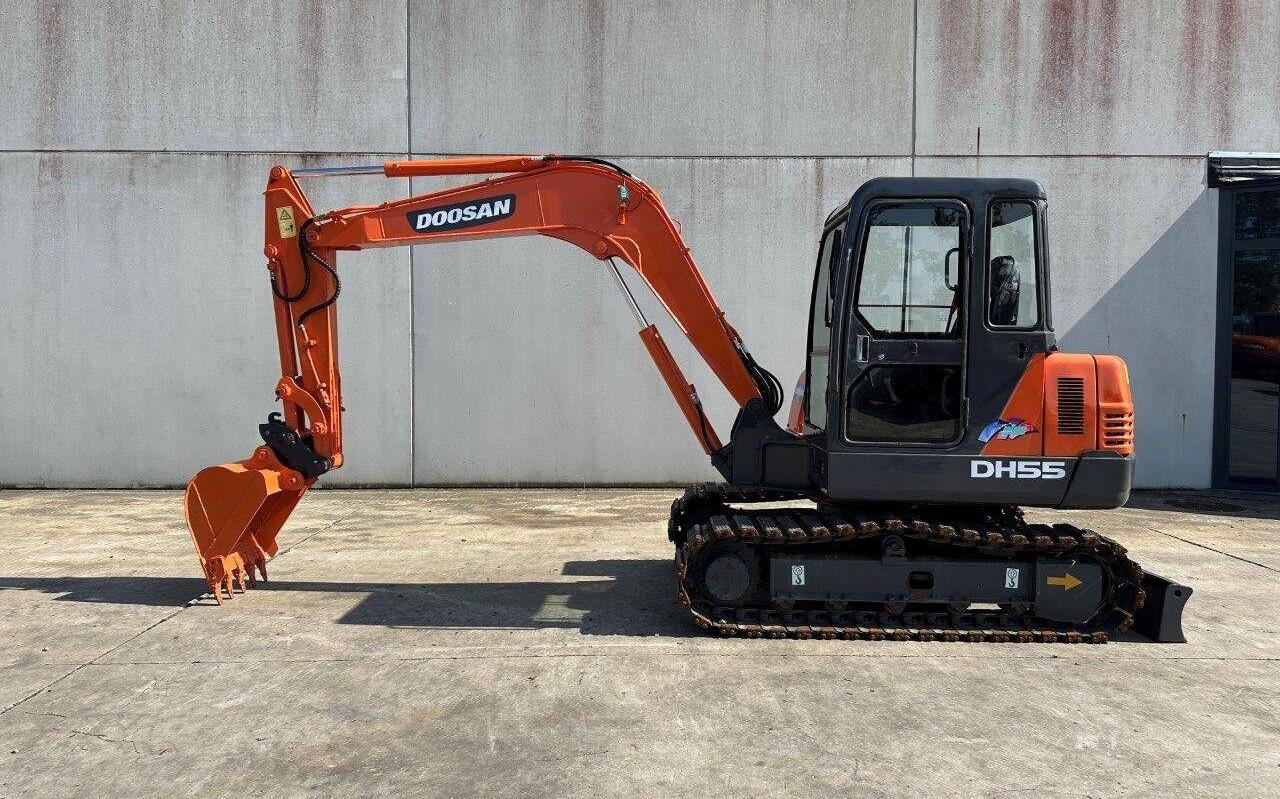

DOOSAN DH55-V
Specifications & Parameters
| Engine Model | ISUZU 4JB1 |
| Rated Power(kW) | 40.5 |
| Engine Revolutions(rpm) | 2200 |
| Maximum Torque(N·m) | 190 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 3-4 |
| Engine Displacement(L) | 3.06 |
| Emisson | Euro 2 |
| Track width(mm) | 400 |
| Fuel Tank(L) | 110 |
| Hydraulic Tank(L) | 42 |
| Travel Speed(km/h) | 4.9 |
| Bucket Capacity(m³) | 0.175 |
| Bucket Digging Force(kN) | 31.4 |
| Boom Length(mm) | 3100 |
| Stick Length(mm) | 1500 |
| Maximum Excavation Radius(mm) | 6100 |
| Maximum Digging Height(mm) | 3630 |
| Maximum Digging Depth(mm) | 3890 |
| Specifications(mm) | 5940×1880×2565 |
| Operating Weight(kg&ton) | 5250 |
| Size Class | Mini |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2015 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Reliable ISUZU 4JB1 Direct Injection Engine
Inline four-cylinder naturally aspirated diesel engine, displacement 3.06L, rated power 40.5kW, Euro II emission standard without urea system. Spare parts are widely available with ultra-low maintenance cost for small-scale construction.
Ultra Short Tail Swing Compact Body
Short rear swing radius only 1550mm, perfect for narrow job sites such as residential renovation, garden greening and rural pipeline excavation.
Combined Dual-Pump Hydraulic System
Dual variable displacement main pumps total flow 110L/min, smooth synchronized compound movements with precise fine control for delicate landscaping tasks. Factory pre-installed auxiliary hydraulic line for mini hydraulic breakers. Hydraulic tank capacity 42L, full system oil volume 72L.
Versatile Standard Working Equipment
Standard 0.175m³ general bucket, optional narrow trenching bucket and large capacity earthmoving bucket, matched with short/long stick options for different digging depth demands.
Front Dozer Blade & Optional Rubber Tracks
Standard front dozer stabilizes machine during digging; optional rubber track pads protect asphalt and pavement surfaces.
Easy Transportation
Compact overall dimension 5940×1880×2565mm, can be transported by small flatbed trucks with convenient site-to-site transfer.
Interested in used DOOSAN DH55-V excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
