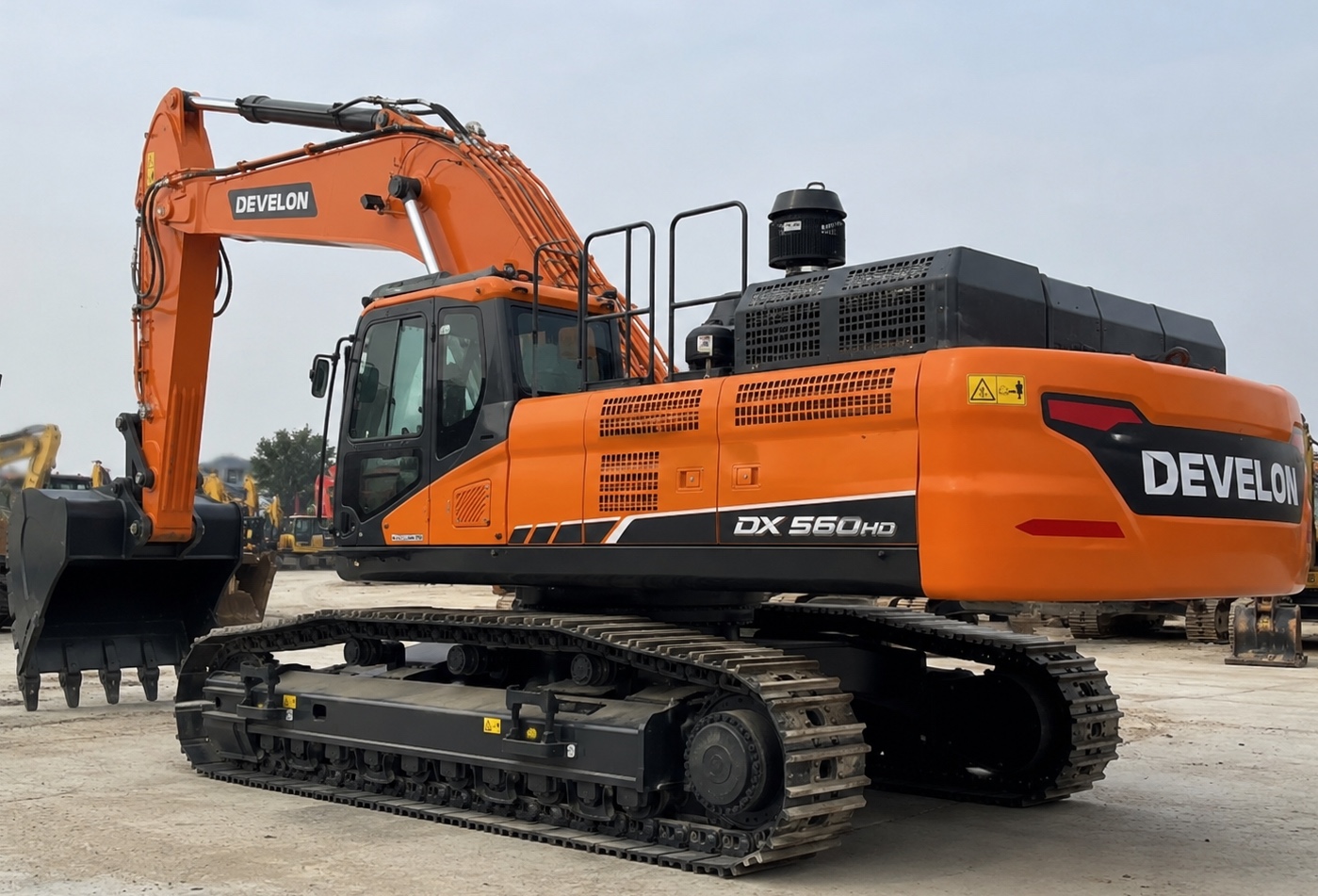

DEVELON DX560HD
Specifications & Parameters
| Engine Model | DEVELON DC13 |
| Rated Power(kW) | 294 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 1780 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 14.5-18 |
| Engine Displacement(L) | 12.7 |
| Emisson | Stage V |
| Track width(mm) | 800 |
| Fuel Tank(L) | 620 |
| Hydraulic Tank(L) | 245 |
| Travel Speed(km/h) | 4.9 |
| Bucket Capacity(m³) | 3.6 |
| Bucket Digging Force(kN) | 286 |
| Boom Length(mm) | 7000 |
| Stick Length(mm) | 3550 |
| Maximum Excavation Radius(mm) | 12010 |
| Maximum Digging Height(mm) | 8650 |
| Maximum Digging Depth(mm) | 7860 |
| Specifications(mm) | 11720×3740×3610 |
| Operating Weight(kg&ton) | 55200 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Self-developed DEVELON DC13 12.7L six-cylinder twin-turbo Stage V engine, 294kW rated power, massive low-end torque for heavy open-pit mining, DPF+SCR aftertreatment meets global emission standards with low maintenance cost.
Reinforced 9-roller extra wide LC heavy-duty mining undercarriage with ultra-thick 12-rib track shoes, low ground pressure for stable operation on soft mine slopes, customized for 60–80 ton mining trucks.
High-flow triple energy regenerative E-EPOS hydraulic system, factory pre-installed large-flow auxiliary circuit for ultra-heavy breakers up to 60-ton class, hydraulic tank capacity 245L, total hydraulic oil volume 410L.
Standard 3.6m³ oversized reinforced rock bucket greatly improves open-pit mining loading efficiency, two arm options for deep stripping or short heavy hammer breaking.
Thickened ROPS/FOPS air suspension cabin with 360° panoramic camera, DEVELON CONNECT mining telematics supports full digital fleet remote monitoring, operation data statistics and maintenance reminder.
Ground-level service layout, optional automatic centralized lubrication system to cut valuable mining downtime.
Interested in used DEVELON DX560HD excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
Photos
