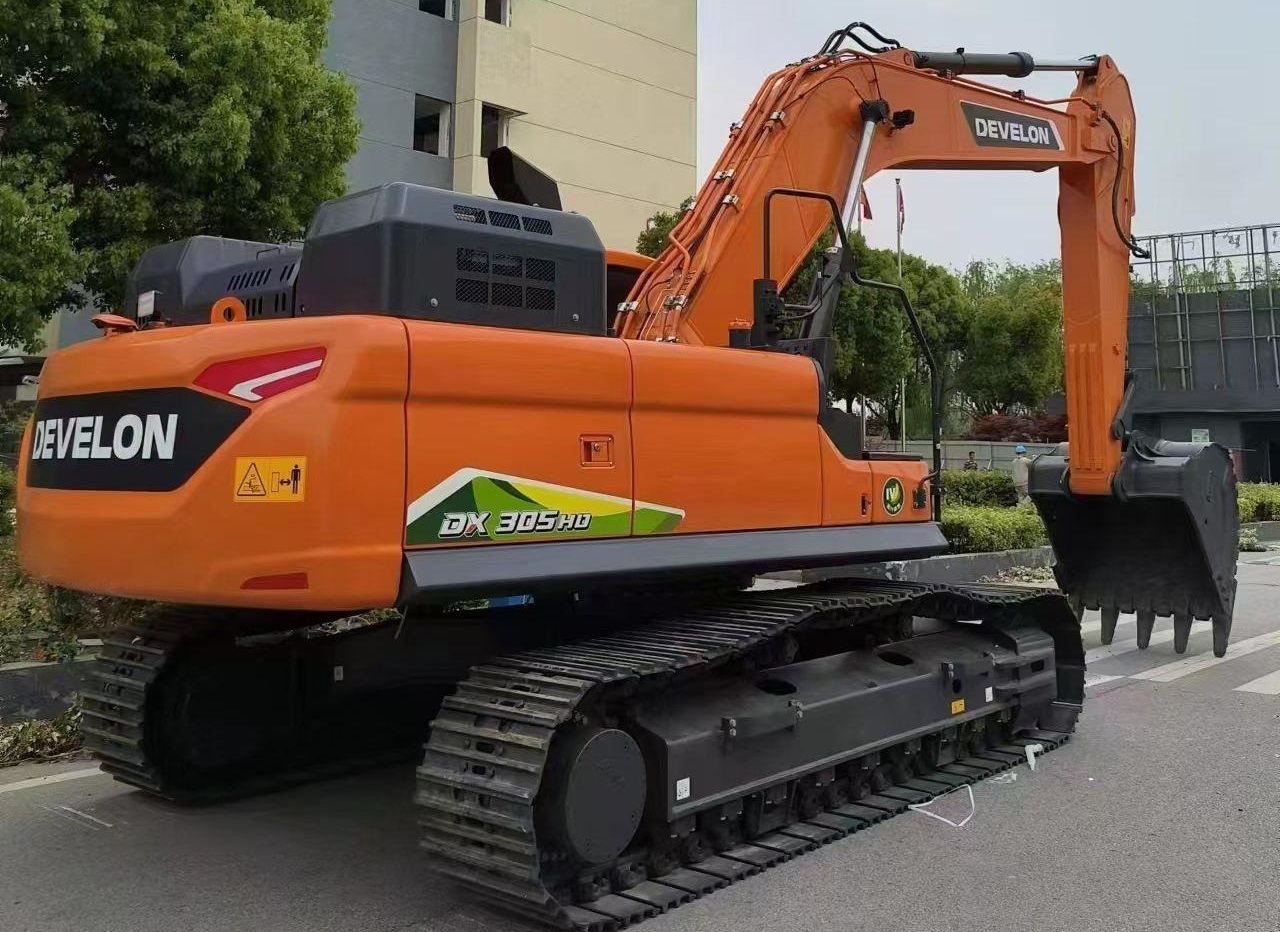

DEVELON DX305HD
Specifications & Parameters
| Engine Model | DEVELON DL08 |
| Rated Power(kW) | 204 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 1080 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 10-12.8 |
| Engine Displacement(L) | 8.2 |
| Emisson | Stage V |
| Track width(mm) | 700 |
| Fuel Tank(L) | 380 |
| Hydraulic Tank(L) | 180 |
| Travel Speed(km/h) | 5.3 |
| Bucket Capacity(m³) | 1.65 |
| Bucket Digging Force(kN) | 202 |
| Boom Length(mm) | 6300 |
| Stick Length(mm) | 3200 |
| Maximum Excavation Radius(mm) | 10860 |
| Maximum Digging Height(mm) | 7860 |
| Maximum Digging Depth(mm) | 7260 |
| Specifications(mm) | 10560×3280×3240 |
| Operating Weight(kg&ton) | 30800 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price. |
Features
High-Power Heavy-Duty Stage V Six-Cylinder Engine
Adopts DEVELON DL08 inline six-cylinder turbo common rail engine, displacement 8.2L, net power 204kW, EU Stage V emission standard with DPF only, no urea SCR system. Massive low-end torque delivers stable power for hard rock stripping and full-load truck loading, fewer consumables lower long-term mine maintenance cost.
9-Roller Reinforced LC Heavy-Duty Undercarriage
9 heavy-duty track rollers per side with extra long & wide ground contact length, ultra-thick wear-resistant track shoes resist violent rock impact, ultra-low ground pressure ensures stable operation on soft mine slopes without sinking.
Large-Flow E-EPOS Regenerative Hydraulics
Dual variable displacement main pumps deliver total flow up to 562L/min. Boom, stick & swing triple energy regeneration circuit stabilizes hydraulic pressure during round-the-clock quarry breaking, smooth synchronized heavy compound movements and ultra-precise fine control. Factory pre-installed bi-directional large-flow auxiliary hydraulic circuit fits 36t heavy hydraulic breakers directly without refitting, hydraulic tank capacity 180L, full system oil volume 300L.
Oversized Heavy-Duty Rock Working Equipment
Standard 1.65m³ reinforced rock bucket drastically improves quarry loading efficiency, two arm options for deep excavation or short heavy hammer breaking, perfectly suitable for medium open-pit mine hard rock excavation, mass backfilling and quarry mass production.
Reinforced Safe & Comfort Mining Operator Cab
Thickened heavy-duty ROPS/FOPS falling-object protection air-conditioned cab with six-point hydraulic shock absorption and premium wide air suspension seat. 10-inch industrial touch TFT color monitor clearly displays DPF regeneration status and real-time fuel consumption, equipped with 360° panoramic camera system and DEVELON CONNECT mining telematics for full digital fleet remote monitoring, operation data statistics and maintenance reminder.
Convenient Ground-Level Daily Maintenance
All service access ports arranged at ground height, optional automatic centralized lubrication system, single-person daily inspection of engine oil, filters and hydraulic oil without climbing machine, effectively cutting valuable quarry downtime and raising annual mine output.
Interested in used DEVELON DX305HD excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
