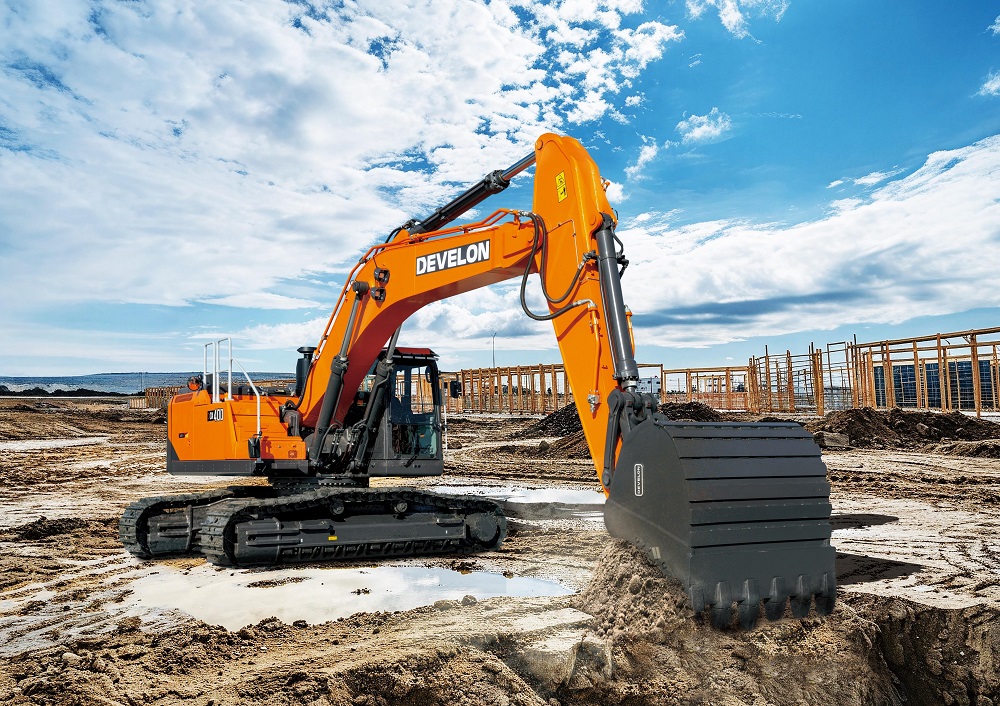

DEVELON DX270HD
Specifications & Parameters
| Engine Model | DEVELON DL06 |
| Rated Power(kW) | 141.4 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 750 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 9.2-11.5 |
| Engine Displacement(L) | 6.87 |
| Emisson | Stage V |
| Track width(mm) | 1100 |
| Fuel Tank(L) | 340 |
| Hydraulic Tank(L) | 165 |
| Travel Speed(km/h) | 5.4 |
| Bucket Capacity(m³) | 1.5 |
| Bucket Digging Force(kN) | 181 |
| Boom Length(mm) | 6100 |
| Stick Length(mm) | 3100 |
| Maximum Excavation Radius(mm) | 10410 |
| Maximum Digging Height(mm) | 7540 |
| Maximum Digging Depth(mm) | 7010 |
| Specifications(mm) | 10120×3120×3160 |
| Operating Weight(kg&ton) | 26800 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
High-Power Heavy-Duty Stage V Six-Cylinder Engine
Adopts DEVELON DL06 inline six-cylinder turbo common rail engine, displacement 6.87L, net power 141.4kW, EU Stage V emission standard with DPF only, no urea SCR system. Abundant low-end torque delivers stable power for hard rock quarrying and heavy digging without stalling, fewer consumables cut long-term mine maintenance expense.
9-Roller Reinforced LC Heavy-Duty Undercarriage
9 track rollers with long wide ground contact length, heavy-duty thickened track shoes resist rock impact, greatly reduces ground pressure, excellent anti-sinking performance on muddy soft foundation sites, superior stability for deep digging and side lifting.
High-Flow E-EPOS Regenerative Hydraulics
Dual variable displacement main pumps deliver total flow up to 518L/min. Boom, stick & swing triple energy regeneration circuit stabilizes hydraulic pressure during round-the-clock hard rock hammer breaking, smooth synchronized compound movements and ultra-precise fine control. Factory pre-installed bi-directional large-flow auxiliary hydraulic circuit fits 30t heavy hydraulic breakers directly without refitting, hydraulic tank capacity 165L, full system oil volume 272L.
Large-Capacity Heavy-Duty Rock Working Equipment
Standard 1.5m³ reinforced rock bucket greatly improves quarry loading efficiency, two arm options for deep excavation or short heavy hammer breaking, perfectly suitable for stone quarry, mass backfilling, road reconstruction and river dredging multi-scenarios.
Reinforced Safe Comfort Operator Cab
Thickened ROPS/FOPS falling-object protection air-conditioned cab with four-point shock absorption and premium air suspension seat. 10-inch touch TFT color monitor clearly displays DPF regeneration status and real-time fuel consumption. Standard rear-view camera and DEVELON CONNECT telematics supports full digital fleet remote monitoring, location tracking and maintenance reminder.
Convenient Ground-Level Daily Maintenance
All service access ports are arranged at ground level, optional automatic centralized lubrication system, single-person daily inspection of engine oil, filters and hydraulic oil without climbing machine, effectively cutting quarry downtime and raising annual production output.
