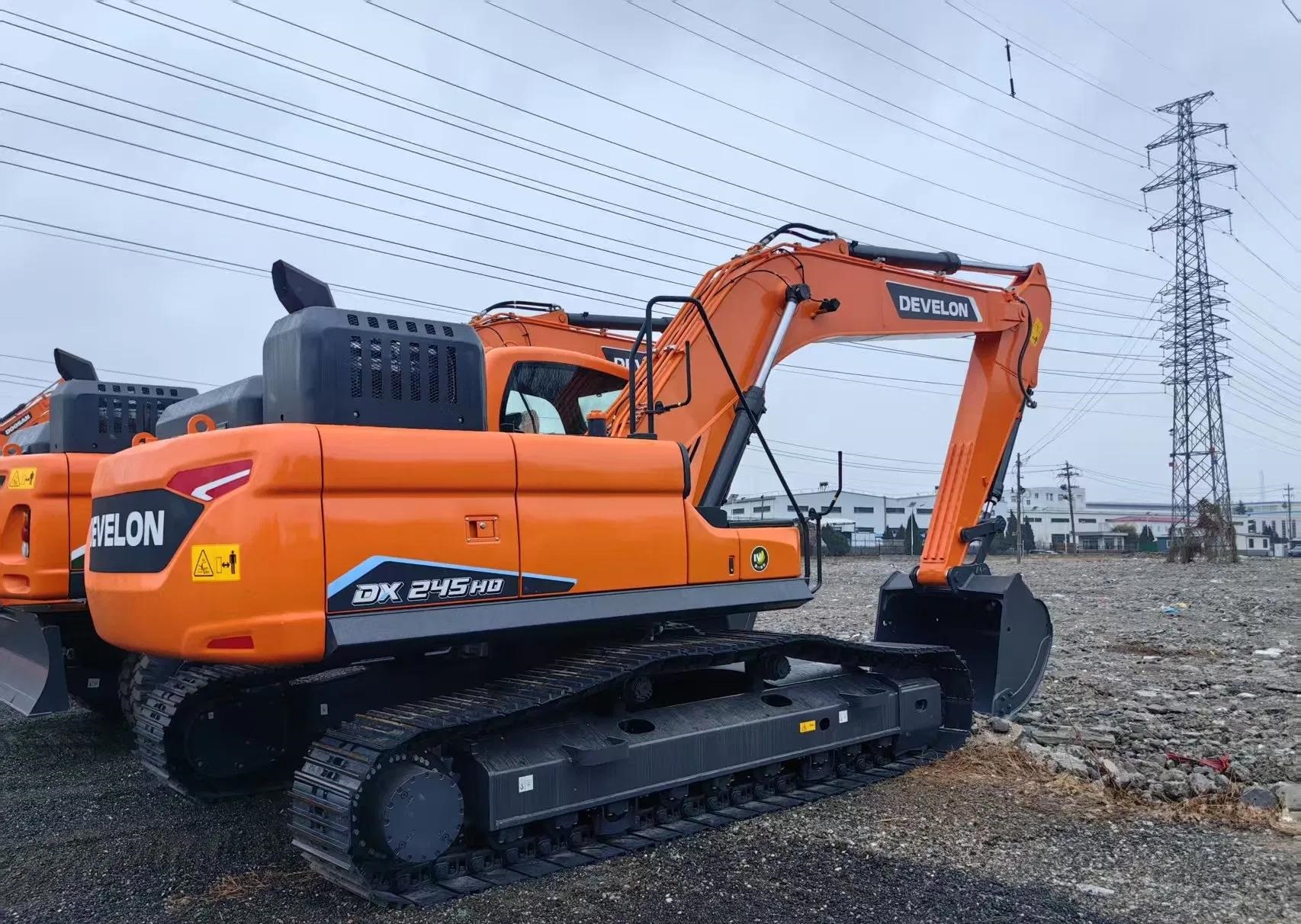

DEVELON DX245HD
Specifications & Parameters
| Engine Model | DEVELON DL06 |
| Rated Power(kW) | 141.4 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 750 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 9-11.2 |
| Engine Displacement(L) | 6.87 |
| Emisson | Stage V |
| Track width(mm) | 500 |
| Fuel Tank(L) | 330 |
| Hydraulic Tank(L) | 160 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 1.4 |
| Bucket Digging Force(kN) | 172 |
| Boom Length(mm) | 5900 |
| Stick Length(mm) | 3000 |
| Maximum Excavation Radius(mm) | 10130 |
| Maximum Digging Height(mm) | 7320 |
| Maximum Digging Depth(mm) | 6830 |
| Specifications(mm) | 9920×3100×3120 |
| Operating Weight(kg&ton) | 24600 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
High‑efficiency Stage‑V six‑cylinder DEVELON DL06 turbo engine, net power 141.4kW, DPF‑only after‑treatment without urea‑SCR. Generous low‑end torque delivers steady power for heavy earth‑moving, quarry work and rock breaking, fewer consumables reduce long‑term operating cost.
Heavy‑duty reinforced LC undercarriage with 600 mm track shoes, robust frame structure improves impact resistance and overall stability. Long ground‑contact length lowers ground pressure for reliable anti‑sinking performance on soft‑muddy job‑sites, stable for deep digging and side‑lifting operations.
E‑EPOS intelligent regenerative hydraulic system, dual variable‑displacement main pumps deliver total flow up to 474L/min. Boom‑stick‑swing multi‑energy regeneration stabilizes hydraulic pressure during continuous heavy‑duty cycles. Achieves smooth synchronized compound movements and fine‑precision control. Factory‑pre‑installed bi‑directional large‑flow auxiliary hydraulic circuit fits 30‑ton‑class heavy breakers without refitting. Hydraulic tank capacity 165L, full‑system hydraulic‑oil volume 272L.
Standard 1.4m³ reinforced heavy‑duty rock bucket improves loading efficiency for earth‑moving and quarry projects. Two arm configurations available for deep excavation or short‑stick heavy‑hammer breaking. Ideal for stone quarries, mass backfilling, road reconstruction and river dredging multi‑scene applications.
Reinforced ROPS/FOPS safety air‑conditioned operator cabin, four‑point shock absorption together with premium air‑suspension seat reduce operator fatigue during long‑hour shifts. 10‑inch touch TFT‑color monitor displays DPF regeneration status and real‑time fuel consumption. Standard rear‑view camera plus DEVELON CONNECT telematics support full‑digital fleet remote monitoring, position tracking and maintenance reminders.
Practical ground‑level daily‑service layout, all service ports accessible at ground height. Optional automatic centralized lubrication system. Single‑person daily inspection of engine oil, filters and hydraulic oil without climbing onto the machine. Effectively cuts equipment downtime and raises site productivity.
Interested in used DEVELON DX245HD excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
Photos
