DEVELON DX225
Specifications & Parameters
| Engine Model | DEVELON DL06 |
| Rated Power(kW) | 127.9 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 720 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 8-10.2 |
| Engine Displacement(L) | 6.87 |
| Emisson | Stage V |
| Track width(mm) | 500 |
| Fuel Tank(L) | 310 |
| Hydraulic Tank(L) | 150 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 1.05 |
| Bucket Digging Force(kN) | 155 |
| Boom Length(mm) | 5800 |
| Stick Length(mm) | 2950 |
| Maximum Excavation Radius(mm) | 9980 |
| Maximum Digging Height(mm) | 7180 |
| Maximum Digging Depth(mm) | 6700 |
| Specifications(mm) | 9750×2990×3060 |
| Operating Weight(kg&ton) | 22700 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Powerful Low-Maintenance Stage V Six-Cylinder Engine
Adopts DEVELON DL06 inline six-cylinder turbocharged common rail engine, displacement 6.87L, net power 127.9kW, EU Stage V emission standard with DPF only, no urea SCR system. Ultra-high low-end torque ensures stable power for heavy digging and light quarry breaking without stalling, fewer consumables cut long-term maintenance expense.
Extended LC Heavy-Duty Undercarriage
7 track rollers with long ground contact length, wider LC gauge lowers ground pressure, excellent anti-sinking performance on muddy soft foundation sites, superior stability for deep digging and side lifting vs 20-ton excavators.
High-Efficiency E-EPOS Regenerative Hydraulics
Dual variable displacement main pumps deliver total flow up to 482L/min. Boom, stick & swing triple energy regeneration circuit stabilizes hydraulic pressure during round-the-clock hammer breaking, smooth synchronized compound movements and ultra-precise fine control. Factory pre-installed bi-directional large-flow auxiliary hydraulic circuit fits 25t heavy hydraulic breakers directly without refitting, hydraulic tank capacity 150L, full system oil volume 245L.
High-Capacity Versatile Working Equipment
Standard 1.05m³ large loading bucket greatly improves mass earthmoving efficiency, perfectly suitable for road construction, mass backfilling, river dredging and light quarry breaking multi-scenarios. Optional long deep-dig stick and short heavy hammer stick for customized jobs.
Safe & Comfort Intelligent Operator Cab
ROPS/FOPS falling-object protection air-conditioned cab with four-point shock absorption and air suspension seat. 10-inch touch TFT color monitor clearly displays DPF regeneration status and real-time fuel consumption. Standard rear-view camera and DEVELON CONNECT telematics supports full digital fleet remote monitoring, location tracking and maintenance reminder.
Convenient Ground-Level Daily Maintenance
All service access ports are arranged at ground level, single-person daily inspection of engine oil, filters and hydraulic oil without climbing machine, effectively cutting downtime on construction sites.
Interested in used DEVELON DX225 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry

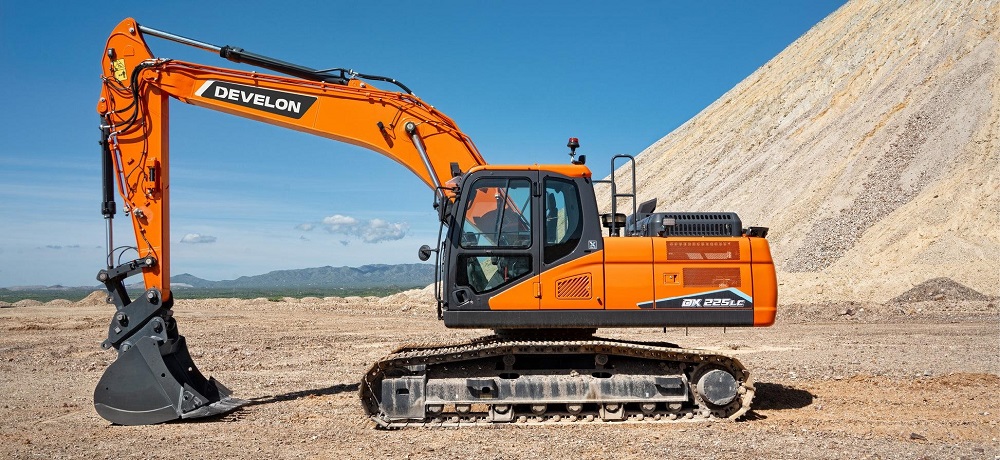

Photos
