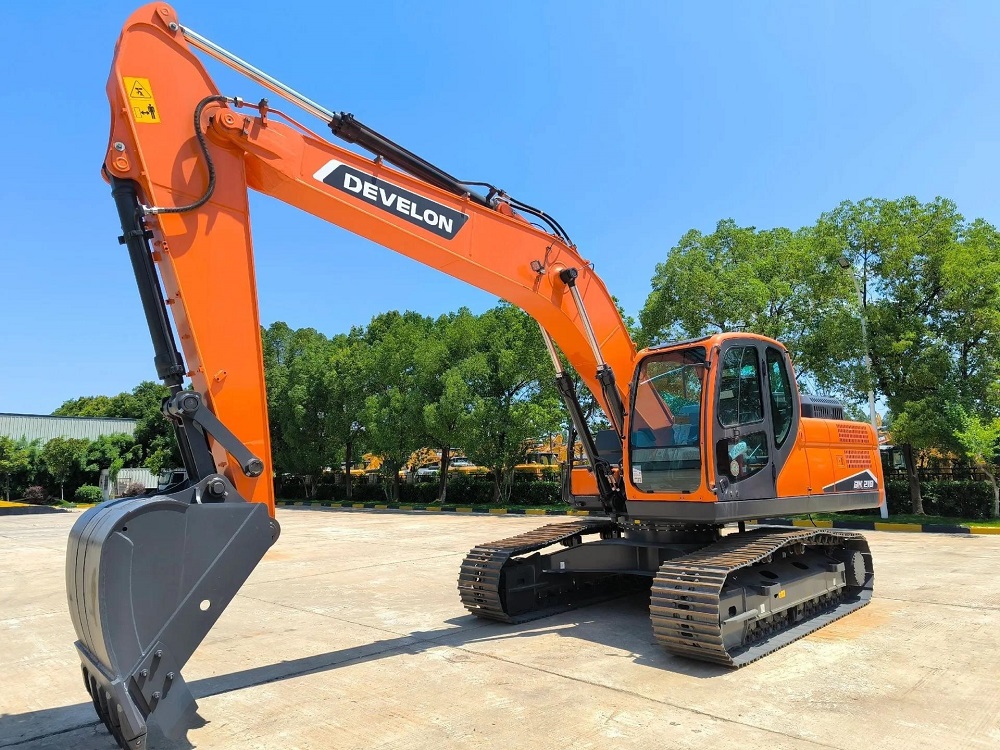

Used DEVELON DX210
Parameters
| Engine Model | WEICHAI WP4.6N |
| Rated Power(kW) | 129 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 370 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 7.5-9.8 |
| Engine Displacement(L) | 4.58 |
| Emisson | Stage V |
| Track width(mm) | 500 |
| Fuel Tank(L) | 300 |
| Hydraulic Tank(L) | 145 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 0.92 |
| Bucket Digging Force(kN) | 149 |
| Boom Length(mm) | 5700 |
| Stick Length(mm) | 2900 |
| Maximum Excavation Radius(mm) | 9875 |
| Maximum Digging Height(mm) | 7110 |
| Maximum Digging Depth(mm) | 6620 |
| Specifications(mm) | 9630×2980×3040 |
| Operating Weight(kg&ton) | 21500 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
Powerful Reliable Stage V Mid-Size Engine
Adopts WEICHAI WP4.6N four-cylinder turbo diesel engine, displacement 4.58L, net power 129kW, EU Stage V emission standard with DPF only, no urea SCR system. Mature mass-produced engine with abundant spare parts, ultra-high low-speed torque ensures stable power for earthmoving and long-time rock breaking without stall, low daily maintenance cost.
Reinforced Extended LC Heavy-Duty Undercarriage
7 track rollers per side, longer & wider track contact area reduces ground pressure, excellent anti-sinking performance on muddy river sites and soft foundation ground, superior stability for side lifting and slope excavation.
High-Efficiency E-EPOS Regenerative Hydraulics
Dual variable displacement main pumps total flow 475L/min. Multi energy regeneration circuit for boom, stick and swing stabilizes hydraulic pressure during round-the-clock rock breaking, smooth synchronized compound movements and ultra-precise fine control. Factory pre-installed bi-directional large-flow auxiliary hydraulic circuit fits 22t heavy hydraulic breakers directly without refitting, hydraulic tank capacity 145L, full system oil volume 239L.
High-Productivity Versatile Working Equipment
Standard 0.92m³ general bucket, optional narrow trench bucket and heavy rock bucket, two arm options for deep excavation or short-arm high-power breaking, perfectly suitable for municipal road construction, housing foundation, river dredging and small quarry breaking multi-scenarios.
Intelligent Safe Comfort Operator Cab
ROPS/FOPS secondary falling-object protection air-conditioned cab with four-point shock absorption and premium reclining air suspension seat. 10-inch touch LCD monitor displays DPF regeneration status and real-time fuel consumption clearly. Standard rear-view camera and DEVELON CONNECT telematics support full digital fleet remote monitoring, location tracking and maintenance reminder.
Convenient Ground-Level Daily Maintenance
All service access ports arranged at ground height, single-person daily inspection without climbing machine, effectively cutting construction site downtime and raising annual project output.
Interested in this excavator? Leave us a message through the contact form on our website or click the WhatsApp button for a faster response from our sales team. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
