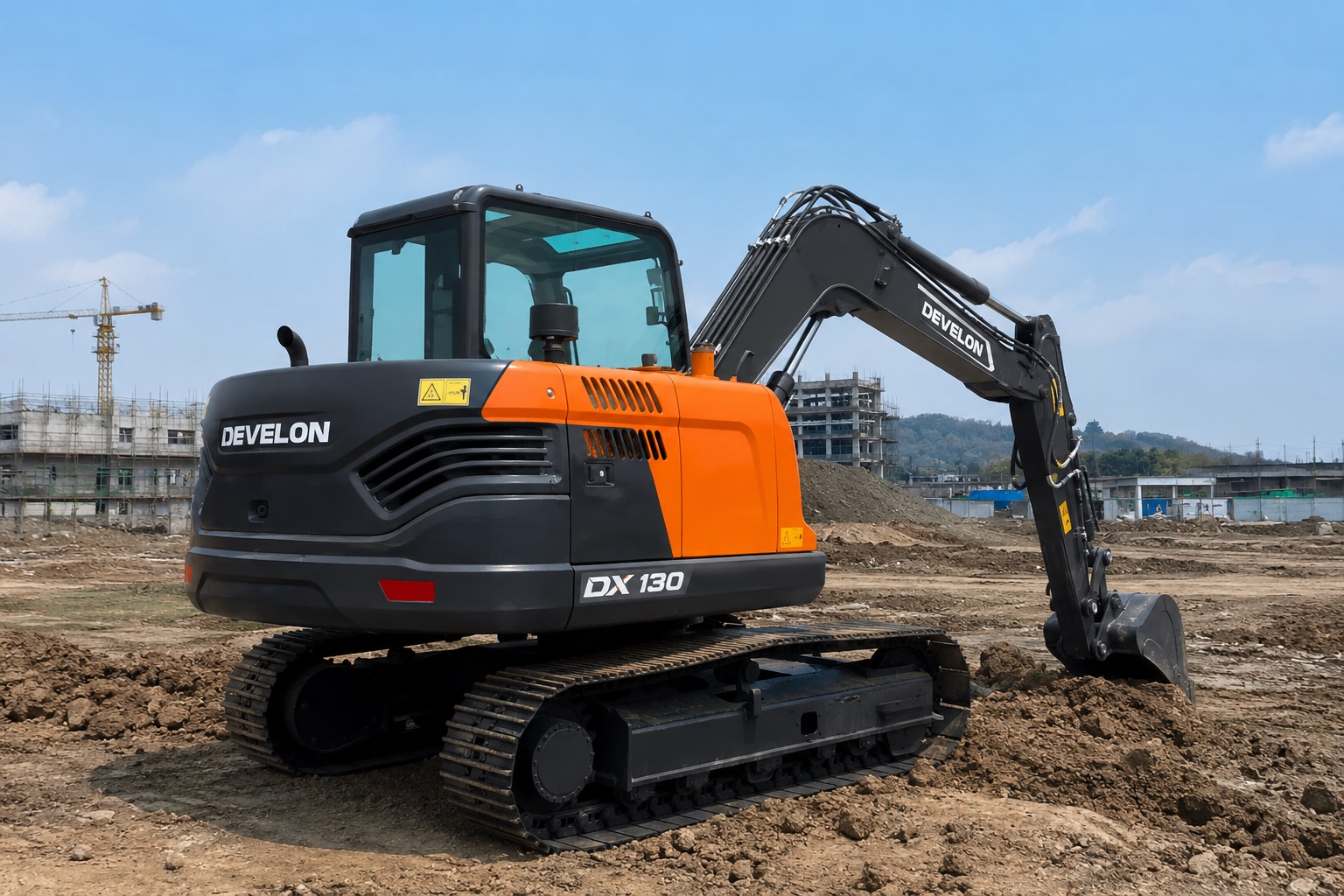

DEVELON DX130
Specifications & Parameters
| Engine Model | DEVELON DN03 |
| Rated Power(kW) | 75 |
| Engine Revolutions(rpm) | 2400 |
| Maximum Torque(N·m) | 370 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 6.5-8.5 |
| Engine Displacement(L) | 4.76 |
| Emisson | Stage V |
| Track width(mm) | 500 |
| Fuel Tank(L) | 245 |
| Hydraulic Tank(L) | 60 |
| Travel Speed(km/h) | 5.2 |
| Bucket Capacity(m³) | 0.53 |
| Bucket Digging Force(kN) | 92 |
| Boom Length(mm) | 4600 |
| Stick Length(mm) | 2500 |
| Maximum Excavation Radius(mm) | 8570 |
| Maximum Digging Height(mm) | 6130 |
| Maximum Digging Depth(mm) | 5620 |
| Specifications(mm) | 7620×2490×2870 |
| Operating Weight(kg&ton) | 12800 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Compact‑efficient 13‑ton‑class crawler excavator, powered by DEVELON DN03 four‑cylinder turbo engine, net power 75kW, meets global emission standards. Reliable low‑end torque delivers stable performance for municipal works, road repair and light‑duty earth‑moving jobs, balanced fuel consumption and low daily operating cost.
Heavy‑duty compact LC undercarriage with seven track rollers, rational track gauge lowers ground pressure. Good anti‑sinking performance on muddy soft construction sites, stable during deep digging and side‑lifting operations.
E‑EPOS load‑sensing hydraulic control system, dual variable‑displacement main pumps deliver total flow up to 228L/min. Optimized main valve logic ensures smooth synchronized compound movements and accurate fine control. Factory‑pre‑installed auxiliary hydraulic circuit supports medium‑size hydraulic breakers without extra refitting. Hydraulic tank capacity 145L, full‑system hydraulic‑oil volume 230L.
Standard 0.53m³ general‑purpose digging bucket improves working efficiency for earth‑moving, backfilling and trench‑digging projects. Optional long‑stick for deep excavation or short‑stick configured for hammer breaking. Versatile for municipal construction, road maintenance, river dredging and small‑site landscaping tasks.
ROPS/FOPS air‑conditioned operator cabin with shock‑absorbing mounting and comfortable suspension seat. Clear digital instrument panel displays real‑time working parameters and fuel consumption. Rear‑view camera comes as standard; DEVELON CONNECT telematics supports remote fleet monitoring, position tracking and maintenance reminders.
User‑friendly ground‑level service layout. All daily service access points are reachable at ground height. Single‑operator inspection of engine oil, filters and hydraulic oil without climbing onto the machine, effectively cutting downtime on urban construction sites.
Interested in used DEVELON DX130 excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
