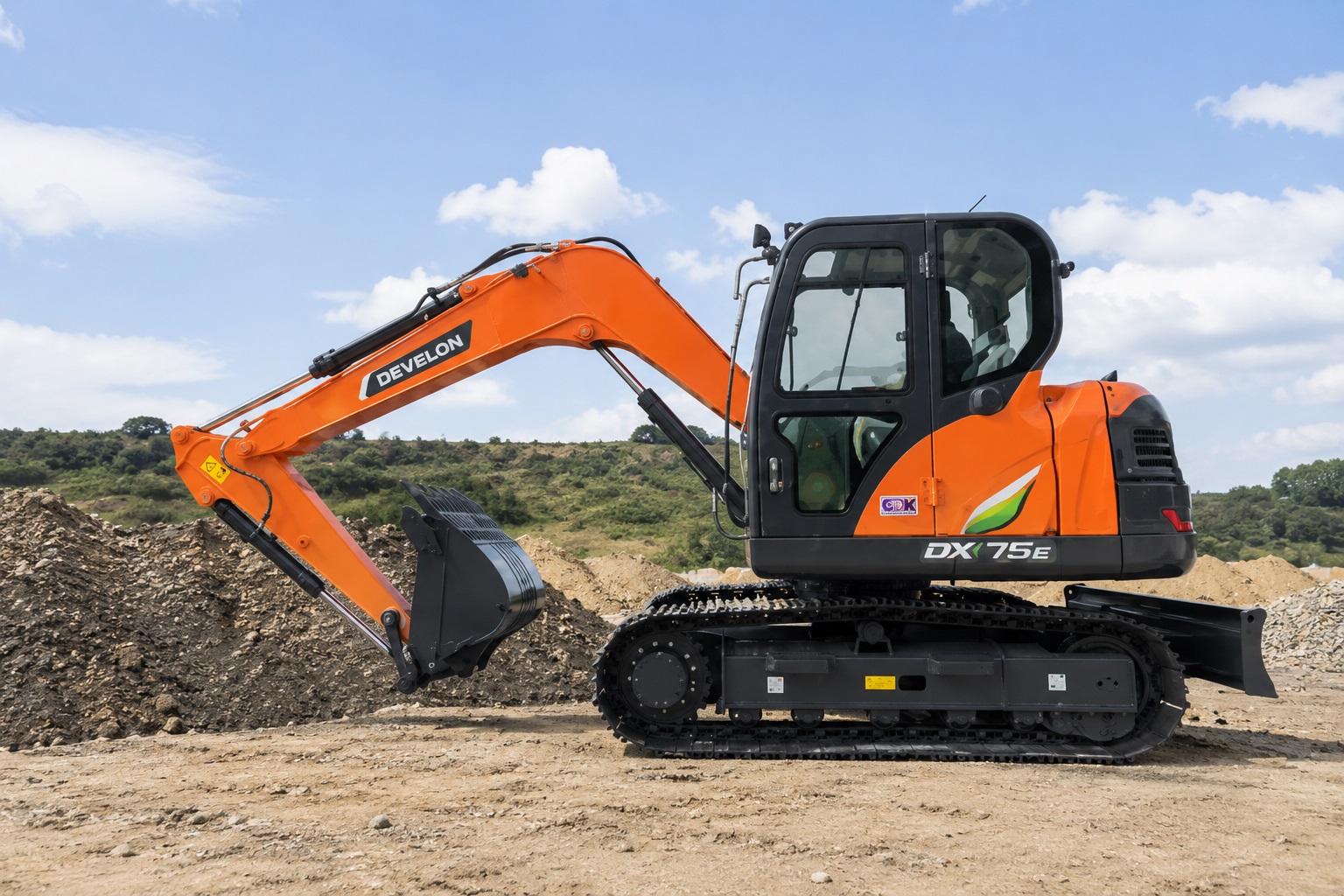

DEVELON DX75E
Specifications & Parameters
| Engine Model | DEVELON DW02 |
| Rated Power(kW) | 36.4 |
| Engine Revolutions(rpm) | 3000 |
| Maximum Torque(N·m) | 142 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 2.9-3.9 |
| Engine Displacement(L) | 2.544 |
| Emisson | Stage V |
| Track width(mm) | 400 |
| Fuel Tank(L) | 128 |
| Hydraulic Tank(L) | 60 |
| Travel Speed(km/h) | 4.4 |
| Bucket Capacity(m³) | 0.3 |
| Bucket Digging Force(kN) | 50 |
| Boom Length(mm) | 3650 |
| Stick Length(mm) | 1600 |
| Maximum Excavation Radius(mm) | 6380 |
| Maximum Digging Height(mm) | 4980 |
| Maximum Digging Depth(mm) | 4020 |
| Specifications(mm) | 6250×2200×2730 |
| Operating Weight(kg&ton) | 7350 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Cost-Effective Stage V Mini Engine
Adopts DEVELON DW02 four-cylinder turbo diesel engine, displacement 2.544L, net power 36.4kW, EU Stage V emission standard with DPF only, no urea SCR system. Simple structure brings low daily maintenance cost, sufficient power for garden and municipal light construction without stall.
Compact Wide Short-Tail Undercarriage
5 track rollers per side, wider track gauge & short tail design that counterweight never overhang tracks. Medium 7.35t weight balances loading efficiency and trailer mobility, superior stability for side digging vs 6-ton mini excavators.
Energy-Saving Regenerative Hydraulics
Dual variable displacement main pumps total flow 162L/min. Boom & stick energy regeneration circuit stabilizes hydraulic pressure during long-time hammer breaking, smooth compound movements and precise fine control. Factory pre-installed bi-directional auxiliary hydraulic circuit fits 8t hydraulic breakers directly without refitting, hydraulic tank capacity 60L, full system oil volume 86L.
Multi-Purpose Working Equipment
Standard 0.3m³ general bucket, optional narrow trench bucket and rock bucket, two arm options for deep excavation or short-arm breaking, perfectly suitable for municipal road, garden renovation, basement demolition and small foundation digging multi-scenarios.
Safe Comfort Operator Cab
FOPS falling-object protection air-conditioned cab with shock absorption seat, color LCD monitor displays DPF status and real-time fuel consumption clearly. Optional rear-view camera improves safety in narrow construction sites.
Convenient Ground-Level Maintenance
All daily service ports arranged at ground height, single-person inspection without climbing machine, effectively cutting small-site downtime.
