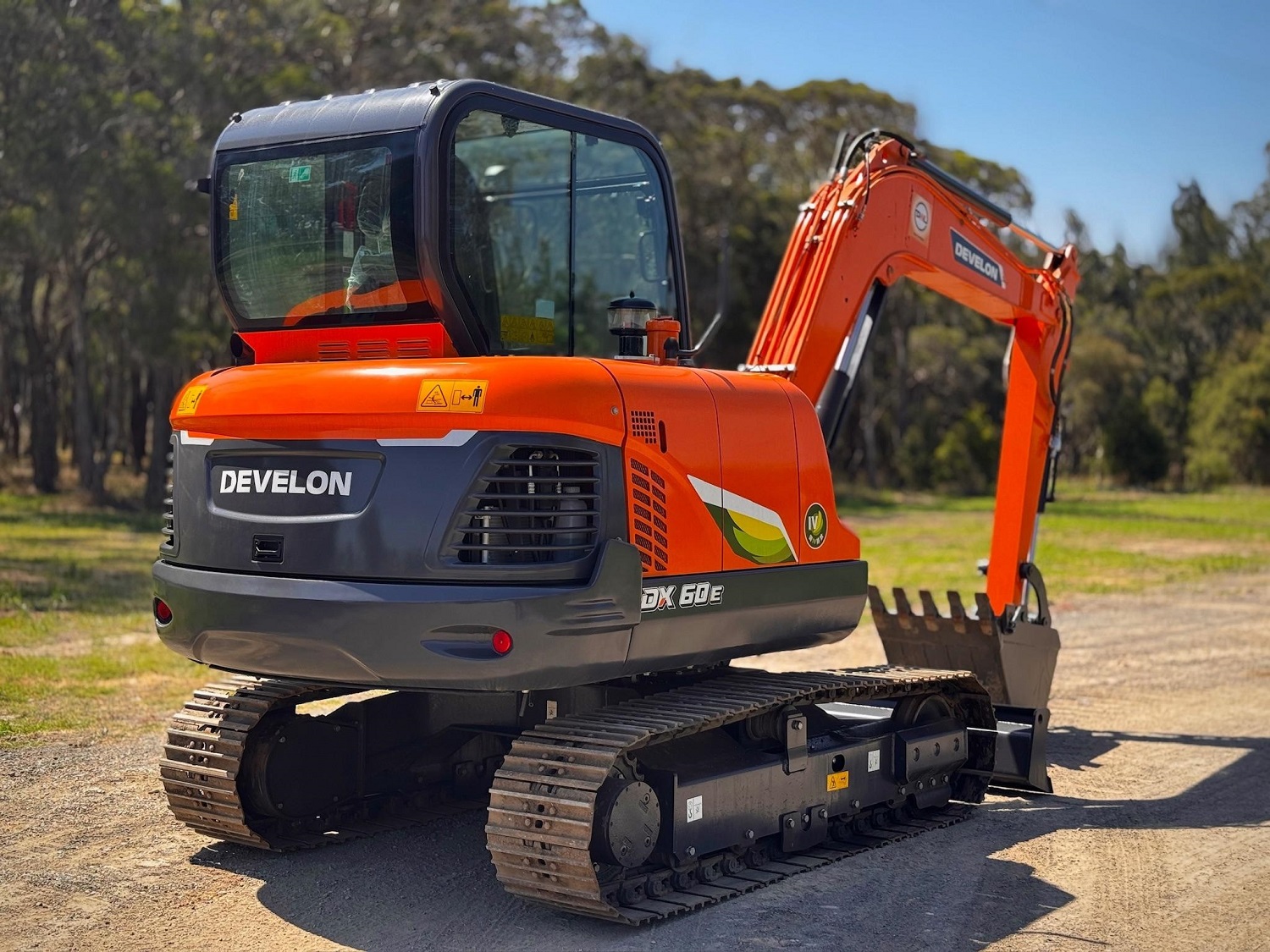

DEVELON DX60 ACE
Specifications & Parameters
| Engine Model | 4TNV94L |
| Rated Power(kW) | 36.2 |
| Engine Revolutions(rpm) | 2200 |
| Maximum Torque(N·m) | 172 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 2.4-3.4 |
| Engine Displacement(L) | 2.716 |
| Emisson | Stage V |
| Track width(mm) | 400 |
| Fuel Tank(L) | 108 |
| Hydraulic Tank(L) | 54 |
| Travel Speed(km/h) | 4.3 |
| Bucket Capacity(m³) | 0.23 |
| Bucket Digging Force(kN) | 45 |
| Boom Length(mm) | 3300 |
| Stick Length(mm) | 1500 |
| Maximum Excavation Radius(mm) | 5990 |
| Maximum Digging Height(mm) | 4600 |
| Maximum Digging Depth(mm) | 3800 |
| Specifications(mm) | 5720×1920×2510 |
| Operating Weight(kg&ton) | 5700 |
| Size Class | Mini |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Cost‑effective 6‑ton compact mini crawler excavator, powered by reliable YANMAR 4TNV94L four‑cylinder turbo diesel engine, net power 36.2 kW, meets EU Stage‑V emission standards with DPF‑only after‑treatment, no urea‑SCR system. Simple mechanical layout keeps daily maintenance low, delivers steady power for municipal, landscaping and light‑demolition tasks without stalling.
Short‑tail compact undercarriage with five track rollers per side. Counterweight stays within track width, ideal for narrow job‑sites. Balanced 5730 kg operating‑weight offers great trailer mobility and improved side‑digging stability versus smaller 5‑ton mini‑excavators.
Energy‑saving load‑sensing hydraulic system, dual variable‑displacement main pumps deliver total flow 158 L/min. Boom‑and‑stick regeneration circuit stabilizes hydraulic pressure during long‑hour hammer work, enables smooth compound movements and accurate fine control. Factory‑pre‑installed bi‑directional auxiliary hydraulic circuit supports 6‑ton‑class hydraulic breakers without modification. Hydraulic tank capacity 62 L, full‑system hydraulic‑oil volume 82 L.
Multi‑purpose working attachments: standard 0.23 m³ general‑purpose bucket. Optional narrow trenching bucket and rock bucket available. Two arm configurations for deep excavation or short‑arm breaking. Well‑suited for municipal road repair, garden renovation, basement demolition and small foundation excavation scenarios.
FOPS falling‑object‑protected air‑conditioned operator cabin with shock‑absorbing suspension seat. Color LCD monitor clearly displays DPF status and real‑time fuel consumption. Optional rear‑view camera enhances safety in confined urban work zones.
Convenient ground‑level service design. All daily service points are accessible at ground height. Single‑operator inspection of engine oil, filters and hydraulic oil without climbing onto the machine, effectively reducing downtime on small‑scale worksites.
Interested in used DEVELON DX60 ACE excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
Photos
