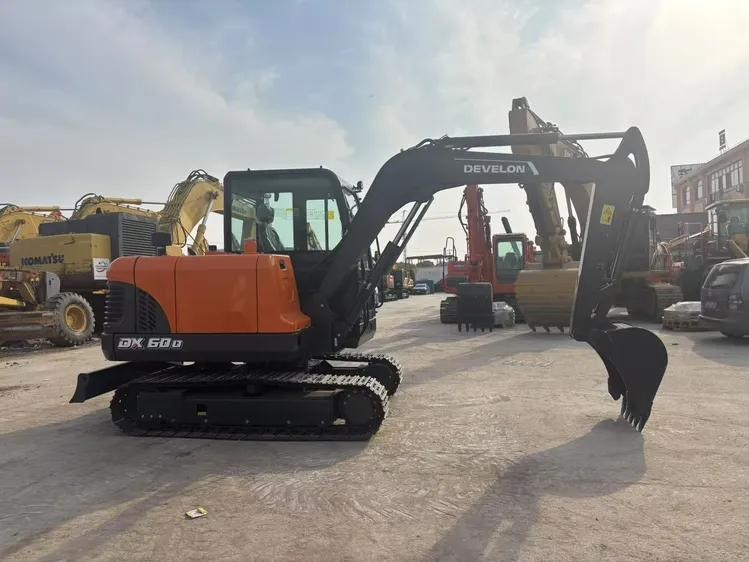

DEVELON DX60D
Specifications & Parameters
| Engine Model | DEVELON DW02 |
| Rated Power(kW) | 36.5 |
| Engine Revolutions(rpm) | 3000 |
| Maximum Torque(N·m) | 142 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 2.6-3.6 |
| Engine Displacement(L) | 2.544 |
| Emisson | Stage V |
| Track width(mm) | 400 |
| Fuel Tank(L) | 110 |
| Hydraulic Tank(L) | 55 |
| Travel Speed(km/h) | 4.3 |
| Bucket Capacity(m³) | 0.25 |
| Bucket Digging Force(kN) | 47 |
| Boom Length(mm) | 3300 |
| Stick Length(mm) | 1500 |
| Maximum Excavation Radius(mm) | 6020 |
| Maximum Digging Height(mm) | 4620 |
| Maximum Digging Depth(mm) | 3830 |
| Specifications(mm) | 5750×1920×2520 |
| Operating Weight(kg&ton) | 5780 |
| Size Class | Mini |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
6‑ton class short‑tail mini excavator built for tight‑site jobs, powered by the proven DEVELON DW02 4‑cylinder turbo diesel engine delivering 36.4 kW net power, compliant with global emission standards. Robust power output handles daily municipal, landscaping and light demolition work, with simple component layout that keeps running and service costs low.
Short‑tail compact undercarriage with five track rollers each side; counterweight stays within track width, ideal for narrow urban yards and confined work zones. 5950 kg operating weight paired with widened 400 mm track shoes delivers solid stability especially during side digging, easy to haul on standard trailers between job‑sites.
LS load‑sensing hydraulic system with custom large‑displacement main pumps, total flow reaches 168 L/min. Boom‑priority logic speeds up combined movements, smooth multitasking and fine metered control for digging, grading and hammer work. Factory‑fitted bi‑directional auxiliary lines work directly with 6‑ton‑class hydraulic breakers with no extra modification. 80 L hydraulic tank, full‑system oil volume 102 L.
Side‑mounted boom design reduces swing inertia, performs better on hard digging tasks. Comes with 0.25 m³ SAE heaped general bucket, you can opt for narrow trenching bucket or rock bucket. Choose standard arm for deep digging or short arm set‑up for heavy breaking. Great fit for road repair, utility trenching, garden remodeling, basement demolition and small foundation works.
Spacious FOPS‑certified air‑conditioned cab offers full 360° visibility. Vibration‑dampening suspension seat eases operator fatigue on long shifts. Clear colour LCD panel shows engine parameters and real‑time fuel use; one‑touch start comes standard, rear‑view camera available as option to boost safety in cramped sites.
All key daily service points sit at ground‑level height. One‑man service access for engine oil, filters and hydraulic oil checks, no climbing required. Helps cut downtime for small contractors running multiple short‑term projects.
Interested in used DEVELON DX60D excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
Photos
