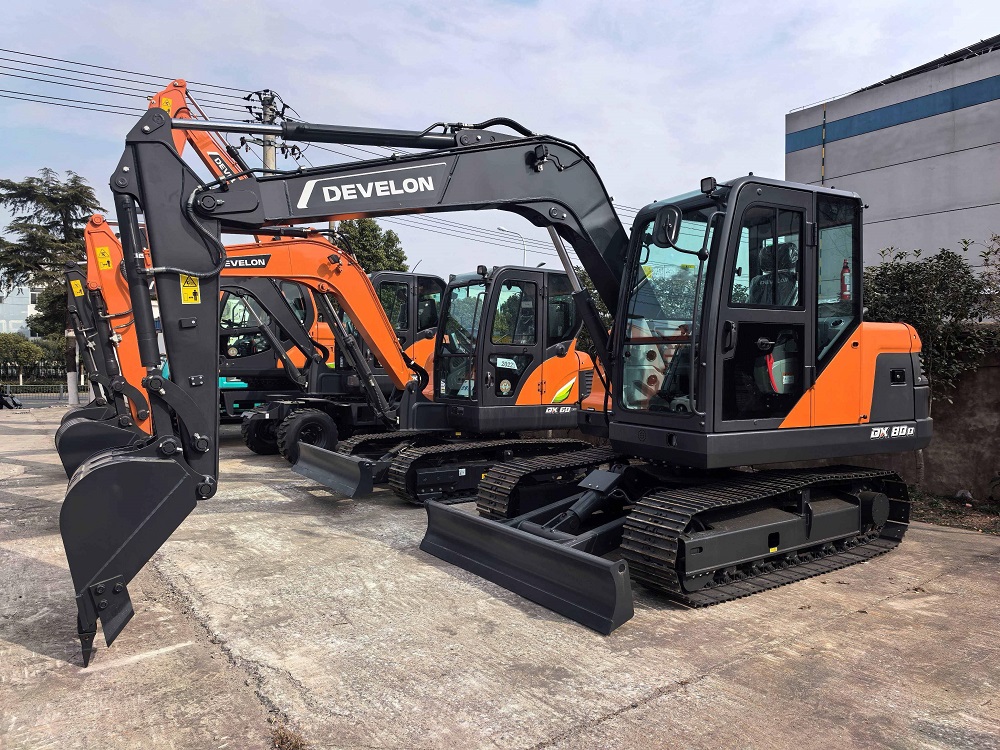

DEVELON DX80D
Specifications & Parameters
| Engine Model | DEVELON DW02 |
| Rated Power(kW) | 36.4 |
| Engine Revolutions(rpm) | 3000 |
| Maximum Torque(N·m) | 49.5 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 3-4 |
| Engine Displacement(L) | 2.544 |
| Emisson | Stage V |
| Track width(mm) | 400 |
| Fuel Tank(L) | 134.5 |
| Hydraulic Tank(L) | 62 |
| Travel Speed(km/h) | 4.5 |
| Bucket Capacity(m³) | 0.3 |
| Bucket Digging Force(kN) | 52 |
| Boom Length(mm) | 3720 |
| Stick Length(mm) | 1620 |
| Maximum Excavation Radius(mm) | 6290 |
| Maximum Digging Height(mm) | 7050 |
| Maximum Digging Depth(mm) | 4070 |
| Specifications(mm) | 6310×2250×2780 |
| Operating Weight(kg&ton) | 7650 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2023 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
7.65‑ton compact crawler excavator built for mid‑size residential, municipal and landscaping jobs. Powered by proven DEVELON DW02 four‑cylinder turbo diesel engine delivering 36.4 kW net power at 3000 rpm, meets global emission standards. Delivers steady output for digging, trenching and light demolition, simple component layout keeps service and operating costs low.
Widened heavy‑duty undercarriage with 450 mm track shoes and seven track rollers per side. Solid overall weight of 7650 kg improves stability during side‑digging and grading work. Travel speed 4.2 / 2.6 km/h, easy to haul between job‑sites on standard low‑bed trailers.
LS load‑sensing hydraulic system adjusts flow according to actual working demand. Smooth combined movements and fine controllability for digging, backfilling and hydraulic breaker work. Factory‑installed bi‑directional auxiliary lines fit 8‑ton‑class breakers without extra modifications. Optimized boom‑priority logic cuts cycle times for higher daily output.
Comes with SAE heaped 0.30 m³ general‑purpose digging bucket. You can select narrow trenching bucket or rock bucket for different tasks. Optional 1900 mm long arm extends working reach, well suited for deep trenching and utility installation. Great for site prep, road repair, drainage work and small foundation excavation.
Spacious FOPS‑certified air‑conditioned cab with full‑round visibility. Vibration‑dampening suspension seat reduces operator fatigue for long‑shift work. Large colour LCD dashboard displays engine data and real‑time fuel use, one‑touch start fitted as standard. Rear‑view camera available as option for safer operation on busy job‑sites.
All major daily service points sit at ground‑level height. One‑person access for engine oil, filter and hydraulic oil checks, no climbing onto the machine. Reduces downtime and lowers maintenance expense for small‑to‑medium contractors.
