DOOSAN DX60-9C
Specifications & Parameters
| Engine Model | DOOSAN D24C DIESEL |
| Rated Power(kW) | 38.9 |
| Engine Revolutions(rpm) | 2100 |
| Maximum Torque(N·m) | 215 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 5-7 |
| Engine Displacement(L) | 2.392 |
| Emisson | China Stage Ⅳ |
| Track width(mm) | 400 |
| Fuel Tank(L) | 115 |
| Hydraulic Tank(L) | 62 |
| Travel Speed(km/h) | 4.2 |
| Bucket Capacity(m³) | 0.23 |
| Bucket Digging Force(kN) | 42 |
| Boom Length(mm) | 3000 |
| Stick Length(mm) | 1600 |
| Maximum Excavation Radius(mm) | 6136 |
| Maximum Digging Height(mm) | 4064 |
| Maximum Digging Depth(mm) | 3807 |
| Specifications(mm) | 5870×2000×2565 |
| Operating Weight(kg&ton) | 5850 |
| Size Class | Small |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | Korea |
| Year of Production | 2021 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
Core features and advantages
Efficient and energy-saving
Equipped with the D24 series inline four cylinder turbocharged diesel engine independently developed by Doosan, with a rated power of 38.9 kW and a rated speed of 2100 r/min, it has electronic injection and multiple fuel filtration systems to improve fuel efficiency and durability
Provide P (Power)/E (Economy) dual working modes, which can be flexibly switched according to working conditions to optimize fuel consumption and operational efficiency
Excellent reliability and structural optimization
The chassis adopts an integrated design to reduce stress concentration points, improve durability and operational stability
The upper arm has been changed from a split type to an integrated bottom plate structure to enhance its resistance to deformation; Strengthen the lifting hole of the bulldozer shovel to prevent cracking during lifting
Upgraded performance of the rotary motor, more precise braking, and better buffering effect; Simplify hydraulic pipelines, unify pipe diameters, and reduce leakage risks
Comfort and operability
Low cabin noise and vibration, equipped with a year-round air conditioning system, providing a comfortable working environment
Large field of view driving glass, expanding the operating field of view, improving operational accuracy and safety
New speed and time display areas have been added to the dashboard for easy monitoring of equipment usage status
Excellent homework performance parameters
Operating weight of the whole machine: 5700 kg
Bucket capacity: 0.23 m ³
Maximum excavation depth: 3807 mm
Maximum excavation radius: 6136 mm
Excavation force: bucket 42 kN, boom 28 kN
Walking speed: 4.2/2.3 km/h (high/low)
Rotation speed: 9.0 rpm
Ground pressure ratio: 0.3 kPa, suitable for soft ground
Interested in used DOOSAN DX60-9C excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry

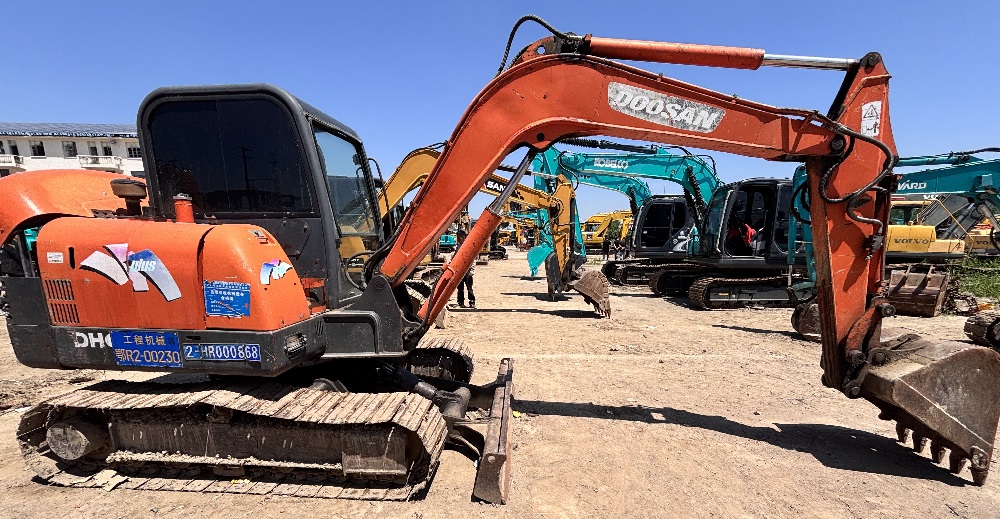

Photos
