Used SANY305H
Parameters
| Engine Model | GH-6HK1XKSC |
| Rated Power(kW) | 212 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 1500 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 18-22 |
| Engine Displacement(L) | 7.79 |
| Emisson | China Stage Ⅲ |
| Track width(mm) | 600 |
| Fuel Tank(L) | 690 |
| Hydraulic Tank(L) | 380 |
| Travel Speed(km/h) | 5.5 |
| Bucket Capacity(m³) | 2.32 |
| Bucket Digging Force(kN) | 235 |
| Boom Length(mm) | 6150 |
| Stick Length(mm) | 3200 |
| Maximum Excavation Radius(mm) | 10780 |
| Maximum Digging Height(mm) | 9890 |
| Maximum Digging Depth(mm) | 7050 |
| Specifications(mm) | 10667 × 3190 × 3470 |
| Operating Weight(kg&ton) | 36000 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2020 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
Powerful power system
Equipped with Isuzu 6HK1X series engine, rated power of 210 kW (some early versions were 190.5 kW), with power and torque reserves exceeding 10%, suitable for heavy-duty operations
The National IV models adopt the DPD route, which meets the National IV emission standards and does not require the addition of urea, making maintenance more worry free
Efficient and energy-saving technology
Equipped with DOMCS dynamic optimization intelligent matching control system (or upgraded DMOS), achieving intelligent matching between the engine, main pump, and valves, and improving operational efficiency by 5%
Compared to the previous generation model, fuel consumption has been reduced by 10% to 15% at the same efficiency
High reliability and durability
Enhanced working device: widened boom and arm, increased cross-sectional coefficient by more than 10%, significantly extended lifespan; By using TIG welding toe repair and other processes, stress concentration is reduced, and the average stress decreases by more than 10%
Strengthening the lower frame and slewing support: The X-frame section has been increased to 330mm, and the slewing support has been upgraded for higher stability
Bucket optimization: Thickened front blade to 60mm, optimized bucket shape and running trajectory, doubled bucket life
Intelligent driving experience
Equipped with a 10 inch smart display screen, integrated with air conditioning, radio, Bluetooth GPS、 One click start, fault diagnosis, one click call and other functions
Upgrade the "12h fatigue free" high damping suspension vibration seat to enhance operational comfort
Adapt to various working conditions
The standard bucket capacity is 1.9 m ³ (some early versions were 1.6 m ³), and the total weight of the machine is approximately 36800-38100 kg
Four series of buckets can be configured to achieve "one bucket per condition" and improve construction efficiency
Grounding pressure of 67 kPa, climbing ability of 35 °, suitable for complex terrains such as mines and earthworks
Hydraulic system upgrade
The displacement of the main pump has been upgraded from 160cc to 180cc, resulting in faster operation; Large diameter main valve reduces pressure loss and improves energy efficiency
The hydraulic system adopts positive flow dual proportional valve control, with sensitive and precise operation

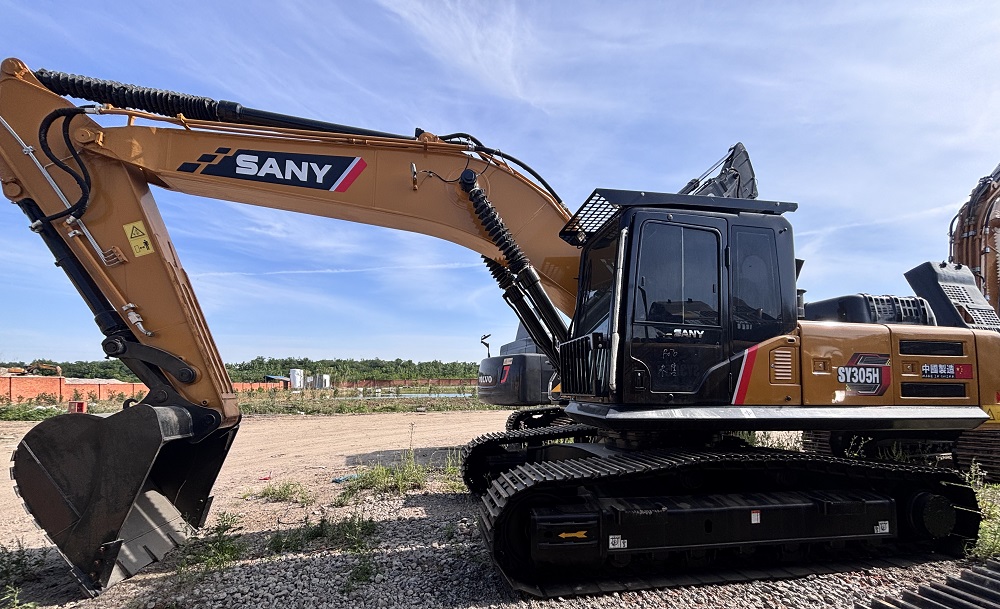

Photos
