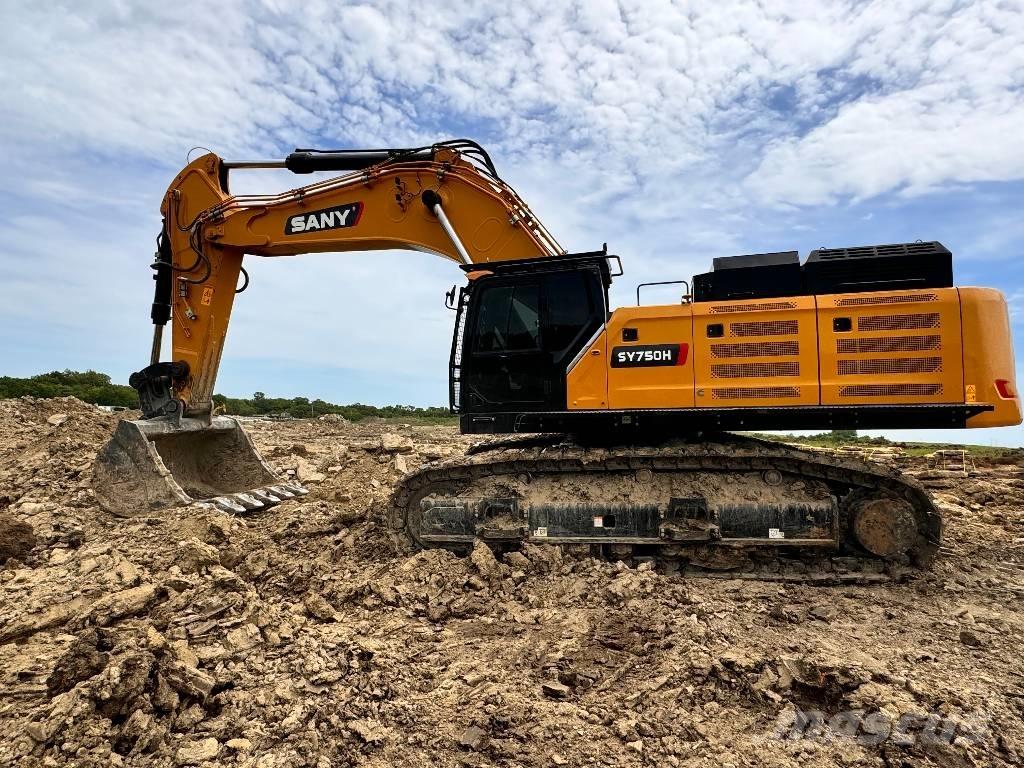

SANY SY750H‑S
Specifications & Parameters
| Engine Model | Isuzu 6WG1X |
| Rated Power(kW) | 382 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 2250 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 27.5‑31.0 |
| Engine Displacement(L) | 15.681 |
| Emisson | Stage III |
| Track width(mm) | 600 |
| Fuel Tank(L) | 950 |
| Hydraulic Tank(L) | 680 |
| Travel Speed(km/h) | 4.5 |
| Bucket Capacity(m³) | 5 |
| Bucket Digging Force(kN) | 390 |
| Boom Length(mm) | 7000 |
| Stick Length(mm) | 2800 |
| Maximum Excavation Radius(mm) | 12920 |
| Maximum Digging Height(mm) | 11062 |
| Maximum Digging Depth(mm) | 7360 |
| Specifications(mm) | 12865×4320×4855 |
| Operating Weight(kg&ton) | 76200 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1. Powered by imported Isuzu 6WG1X six-cylinder turbocharged intercooled diesel engine with 382kW rated power and tremendous low-speed torque output, stable round-the-clock heavy-duty open-pit mining operation, fully complies with Stage V emission standard with SCR urea aftertreatment system.
2. 76.2-ton flagship ultra-large mining excavator, core heavy equipment for large open-pit mine rock stripping, blasted rock loading, bulk aggregate transportation and mega infrastructure earthmoving projects.
3. Equipped with Kawasaki full-electronic large-displacement hydraulic system and exclusive SANY DPC direct power control technology, oversized independent hydraulic radiator eliminates high-temperature power attenuation under harsh mining conditions, fuel consumption reduced by 13% and working efficiency improved by 20% compared with the old SY750H model.
4. Reinforced boom and stick with full penetration anti-fatigue welding, widened heavy-duty undercarriage with 650mm wide tracks, excellent shock resistance, wear resistance and dust-proof performance in high-dust quarry environment.
5. Fuel consumption 27.5‑31.0L/h, multiple intelligent power modes including dedicated breaker hammer mode, upgraded C12 safety cabin and centralized maintenance layout to effectively cut long-term operation and after-sales costs.
Interested in used SANY SY750H‑S excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
