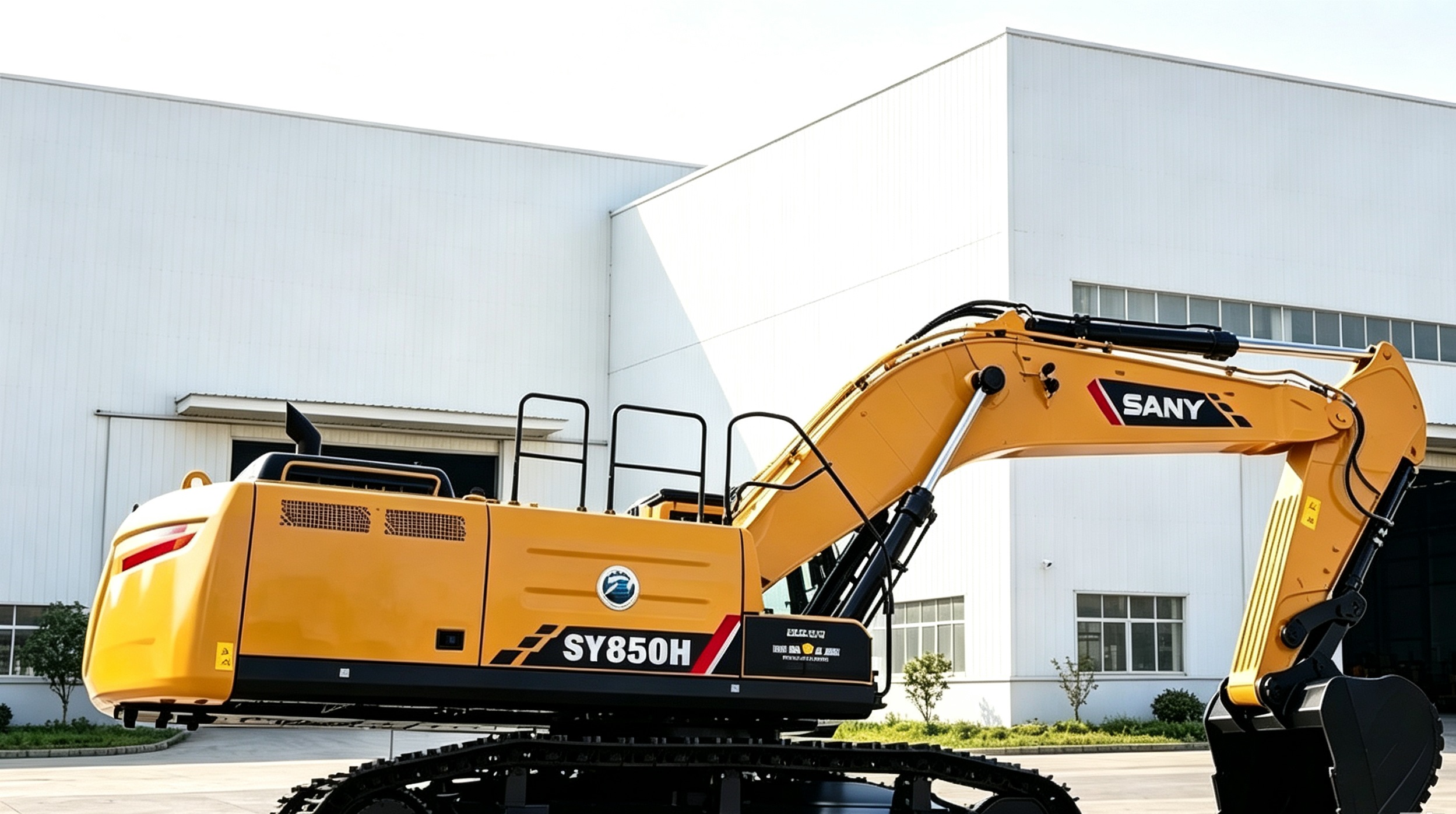

SANY SY850H
Specifications & Parameters
| Engine Model | BB-6WG1XQA |
| Rated Power(kW) | 343 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 2080 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 28.5‑32.0 |
| Engine Displacement(L) | 15.681 |
| Emisson | Stage III |
| Track width(mm) | 930 |
| Fuel Tank(L) | 920 |
| Hydraulic Tank(L) | 750 |
| Travel Speed(km/h) | 4.1 |
| Bucket Capacity(m³) | 5 |
| Bucket Digging Force(kN) | 492 |
| Boom Length(mm) | 7300 |
| Stick Length(mm) | 3200 |
| Maximum Excavation Radius(mm) | 12950 |
| Maximum Digging Height(mm) | 11920 |
| Maximum Digging Depth(mm) | 7080 |
| Specifications(mm) | 13405×3710×5670 |
| Operating Weight(kg&ton) | 85000 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1. Equipped with imported Isuzu BB-6WG1XQA six-cylinder turbocharged intercooled diesel engine, 343kW rated power and powerful low-speed torque reserve, stable 24-hour non-stop heavy-duty open-pit mining operation, fully compliant with Stage III emission standard.
2. 85-ton flagship ultra-large mining excavator, core heavy equipment for large open-pit mine rock stripping, blasted rock loading, bulk aggregate transportation and super-large infrastructure earthmoving projects.
3. Adopts Kawasaki K7V320 large-displacement electronic hydraulic system and SANY 5th-generation DOMCS intelligent control system, oversized independent hydraulic radiator effectively avoids high-temperature power attenuation under harsh mining working conditions, greatly improves overall operation efficiency.
4. Ultra-thick reinforced boom and stick with full penetration anti-vibration welding, widened heavy-duty undercarriage with 930mm wide tracks, excellent impact resistance, wear resistance and dust-proof performance in high-dust quarry environment.
5. Fuel consumption 28.5‑32.0L/h, multiple adjustable power modes with exclusive breaker hammer mode, centralized easy-maintenance layout effectively reduces long-term fuel consumption and after-sales operating costs.
