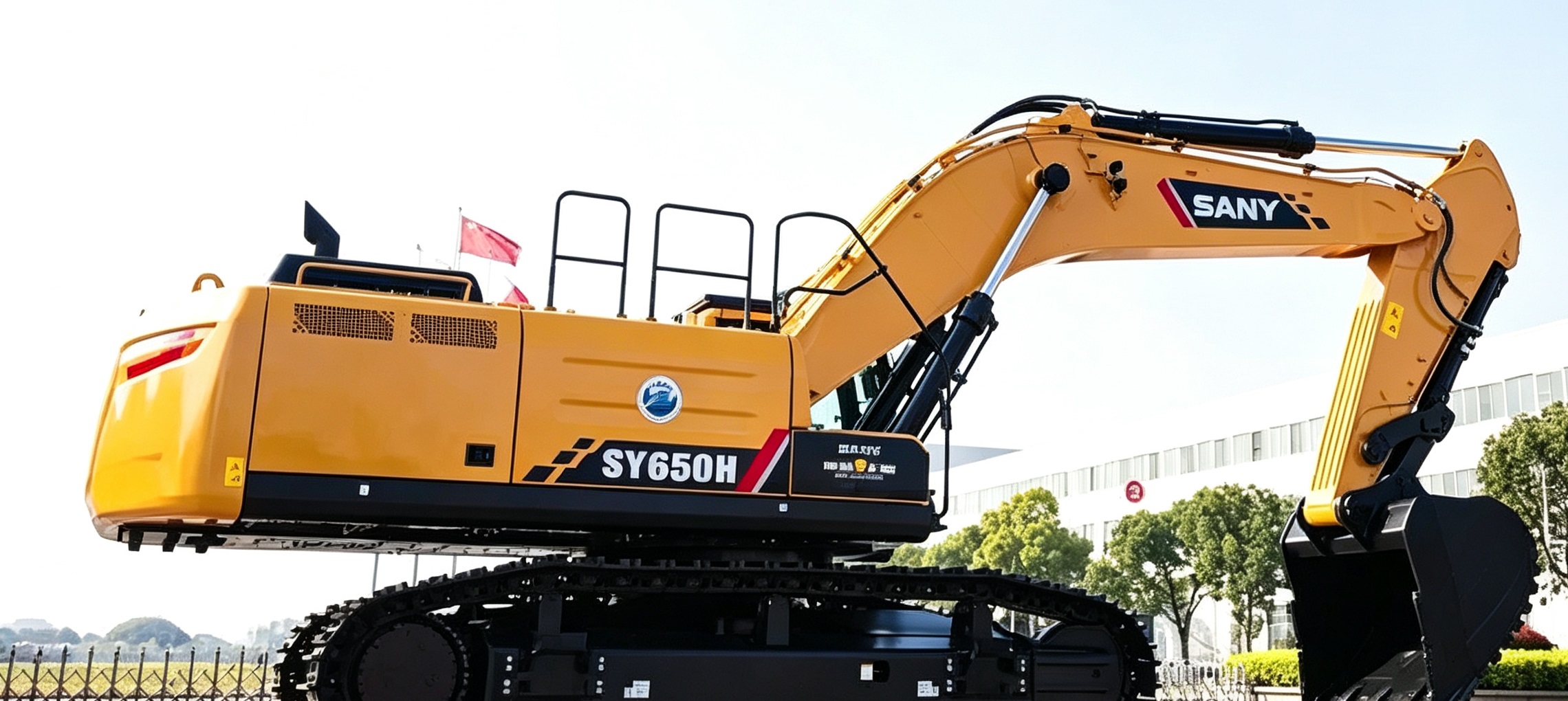

SANY SY650H
Specifications & Parameters
| Engine Model | Isuzu GB3‑6WG1X |
| Rated Power(kW) | 345 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 2050 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 26.5‑30.0 |
| Engine Displacement(L) | 15.681 |
| Emisson | Stage III |
| Track width(mm) | 600 |
| Fuel Tank(L) | 840 |
| Hydraulic Tank(L) | 680 |
| Travel Speed(km/h) | 4.6 |
| Bucket Capacity(m³) | 3.8 |
| Bucket Digging Force(kN) | 345 |
| Boom Length(mm) | 7000 |
| Stick Length(mm) | 3000 |
| Maximum Excavation Radius(mm) | 11670 |
| Maximum Digging Height(mm) | 11135 |
| Maximum Digging Depth(mm) | 7210 |
| Specifications(mm) | 12760×3500×4530 |
| Operating Weight(kg&ton) | 65000 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1. Equipped with imported Isuzu 6WG1X six-cylinder turbocharged intercooled diesel engine, 345kW high rated power and enormous low-speed torque reserve, stable and reliable round-the-clock heavy-duty open-pit mining operation, fully compliant with Stage III emission standard.
2. 65-ton flagship ultra-large mining excavator, core heavy equipment for large open-pit mine rock stripping, blasted rock loading, bulk aggregate transportation, large site leveling and super-huge infrastructure construction projects.
3. Adopts Kawasaki K7V280 large-displacement electronic hydraulic system and SANY 5th-generation DOMCS intelligent control system, oversized independent hydraulic radiator completely solves high-temperature power attenuation under long-time continuous mining heavy load, hydraulic response increased by 25%.
4. Ultra-thickened cast integrated boom and stick with full penetration deep groove high-strength welding, all key force-bearing components pass 100% ultrasonic flaw detection, widened X-type heavy-duty undercarriage with full track guard plates, excellent anti-impact, wear-resistant and dust-proof performance under harsh mining environment.
5. Working fuel consumption 26.5‑30.0L/h, 6 adjustable intelligent power modes with automatic idle reduction function, dedicated heavy rock breaking mode for blasting face operation, effectively control long-term fuel expenditure and comprehensive operating costs.
