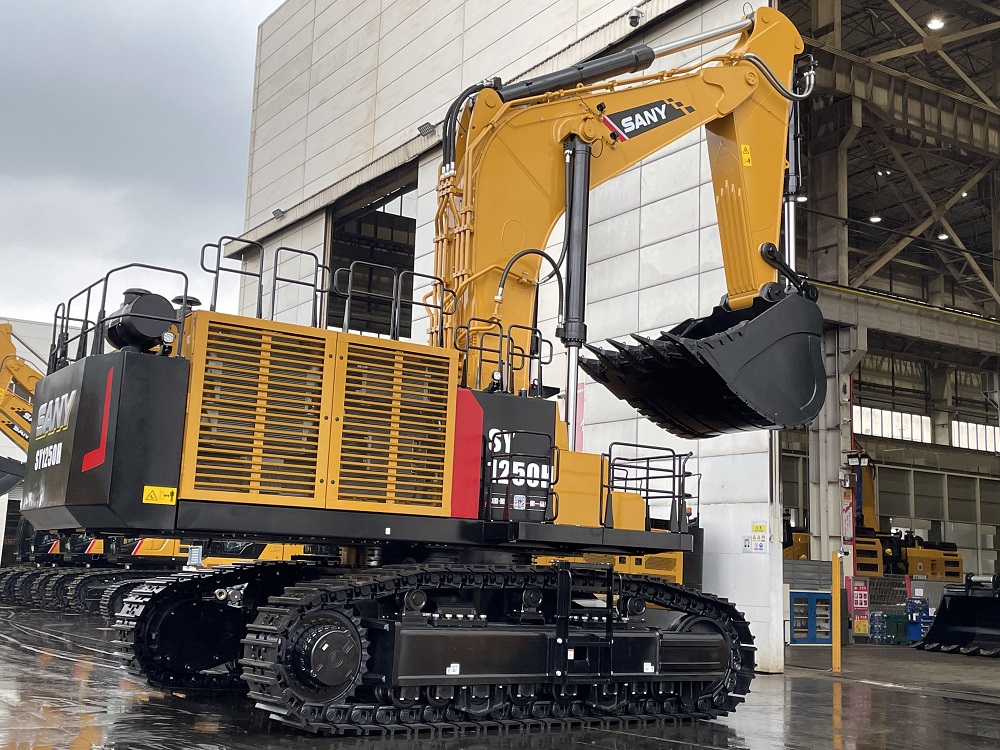

SANY SY1250H‑S
Specifications & Parameters
| Engine Model | QSK23-FR |
| Rated Power(kW) | 567 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 3468 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 33-39 |
| Engine Displacement(L) | 23 |
| Emisson | Stage V |
| Track width(mm) | 700 |
| Fuel Tank(L) | 1580 |
| Hydraulic Tank(L) | 1100 |
| Travel Speed(km/h) | 3.2 |
| Bucket Capacity(m³) | 8 |
| Bucket Digging Force(kN) | 605 |
| Boom Length(mm) | 7600 |
| Stick Length(mm) | 3400 |
| Maximum Excavation Radius(mm) | 13920 |
| Maximum Digging Height(mm) | 12830 |
| Maximum Digging Depth(mm) | 8065 |
| Specifications(mm) | 14860×5560×6260 |
| Operating Weight(kg&ton) | 125000 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2024 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1. Powered by imported Cummins QSK23-FR inline 6-cylinder turbocharged intercooled diesel engine with 567kW rated power and 3468N·m peak torque, stable 24-hour non-stop heavy open-pit mining operation, fully complies with Stage V emission standard with SCR urea aftertreatment heating system.
2. 125-ton flagship super-heavy mining excavator, core heavy equipment for open-pit coal & metal ore stripping, hard rock blasting and ultra-large volume bulk material loading projects.
3. Equipped with SANY super-large flow full-electronic hydraulic system and exclusive DPC direct power control technology, oversized independent hydraulic radiator eliminates high-temperature power attenuation under long-term breaker hammer operation, fuel consumption reduced by 15% and productivity increased by 22% versus the old SY1250H model.
4. Heavily reinforced boom and stick with full penetration anti-fatigue welding, upgraded 125-ton heavy-duty undercarriage with 700mm wide tracks, outstanding shock resistance and wear resistance in harsh dusty quarry environment.
5. Fuel consumption 33.0‑39.0L/h, dedicated rock breaking working mode, automatic centralized lubrication and cloud remote monitoring system effectively cut long-term operation and maintenance costs.
