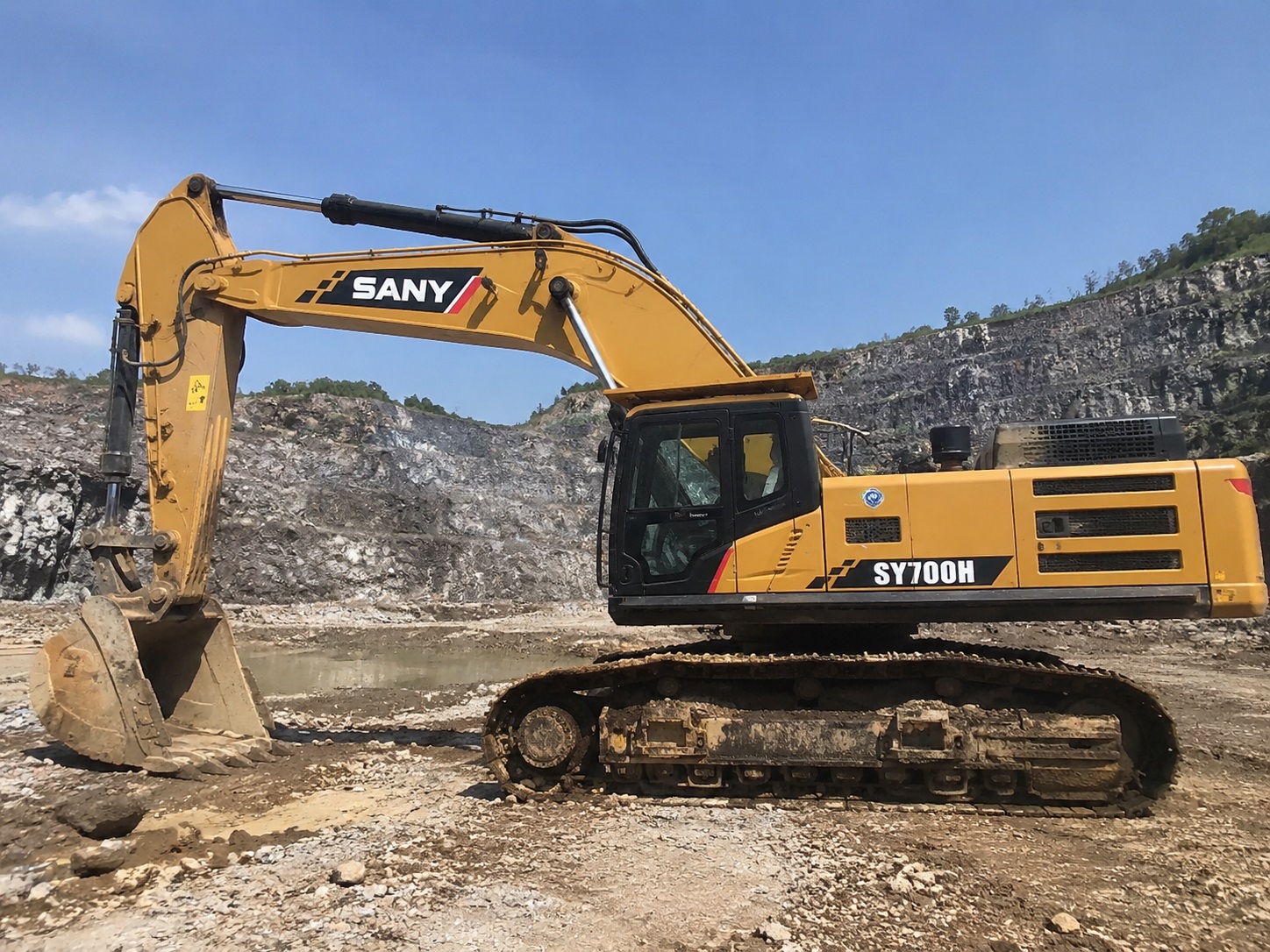

SANY SY700H
Specifications & Parameters
| Engine Model | Isuzu BB-6WG1XQA-03 |
| Rated Power(kW) | 310 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 2050 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 27.0‑30.5 |
| Engine Displacement(L) | 15.681 |
| Emisson | Stage III |
| Track width(mm) | 600 |
| Fuel Tank(L) | 860 |
| Hydraulic Tank(L) | 700 |
| Travel Speed(km/h) | 4.5 |
| Bucket Capacity(m³) | 4 |
| Bucket Digging Force(kN) | 356 |
| Boom Length(mm) | 7100 |
| Stick Length(mm) | 3100 |
| Maximum Excavation Radius(mm) | 12360 |
| Maximum Digging Height(mm) | 11653 |
| Maximum Digging Depth(mm) | 7150 |
| Specifications(mm) | 12000×3440×4770 |
| Operating Weight(kg&ton) | 72000 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1. Equipped with imported Isuzu BB-6WG1XQA-03 six-cylinder turbocharged intercooled diesel engine, 310kW rated power and powerful low-speed torque reserve, stable 24-hour non-stop heavy-duty open-pit mining operation, fully compliant with Stage III emission standard.
2. 72-ton flagship ultra-large mining excavator, core heavy equipment for large open-pit mine rock stripping, blasted rock loading, bulk aggregate transportation and super-large infrastructure earthmoving projects.
3. Adopts Kawasaki K7V300 large-displacement electronic hydraulic system and SANY 5th-generation DOMCS intelligent control system, oversized independent hydraulic radiator effectively avoids high-temperature power attenuation under harsh mining working conditions, greatly improves overall operation efficiency.
4. Ultra-thick reinforced boom and stick with full penetration anti-vibration welding, widened heavy-duty undercarriage with 750mm wide tracks, excellent impact resistance, wear resistance and dust-proof performance in high-dust quarry environment.
5. Fuel consumption 27.0‑30.5L/h, multiple adjustable power modes with exclusive breaker hammer mode, centralized easy-maintenance layout effectively reduces long-term fuel consumption and after-sales operating costs.
Interested in used SANY SY700H excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
