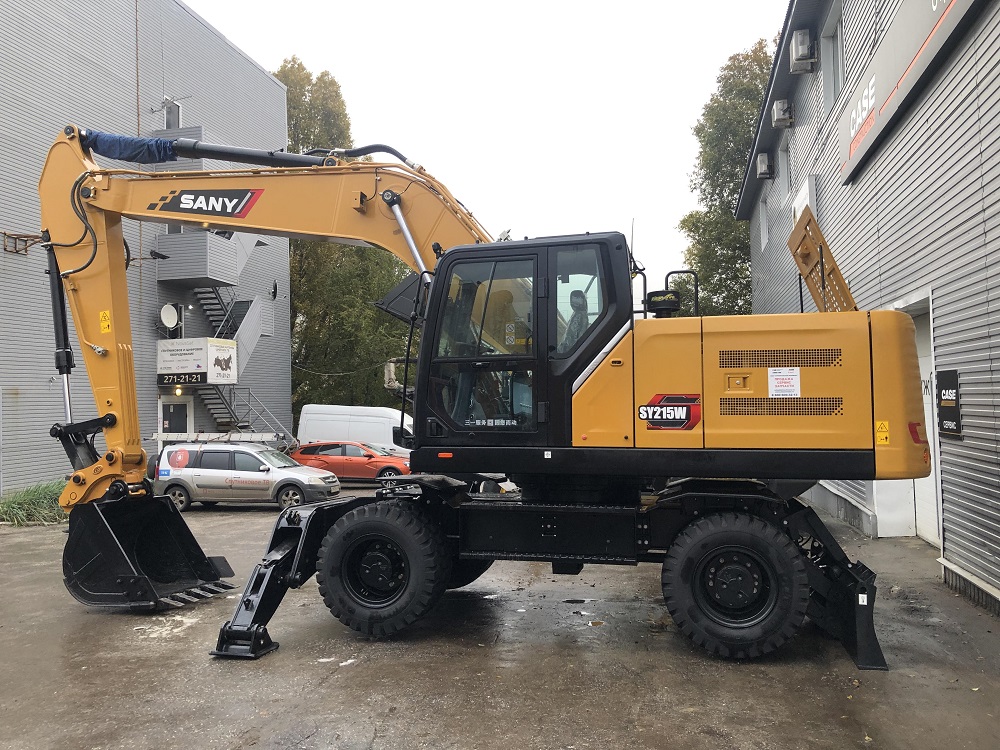

SANY SY215W
Specifications & Parameters
| Engine Model | Isuzu 4HK1-TCG60 |
| Rated Power(kW) | 128.4 |
| Engine Revolutions(rpm) | 2000 |
| Maximum Torque(N·m) | 670 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 9-12 |
| Engine Displacement(L) | 5.193 |
| Emisson | Stage V |
| Track width(mm) | / |
| Fuel Tank(L) | 260 |
| Hydraulic Tank(L) | 180 |
| Travel Speed(km/h) | 38 |
| Bucket Capacity(m³) | 0.93 |
| Bucket Digging Force(kN) | 118 |
| Boom Length(mm) | 5150 |
| Stick Length(mm) | 2950 |
| Maximum Excavation Radius(mm) | 9950 |
| Maximum Digging Height(mm) | 10450 |
| Maximum Digging Depth(mm) | 6320 |
| Specifications(mm) | 8750×2600×3280 |
| Operating Weight(kg&ton) | 21500 |
| Size Class | Medium |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2024 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1. Max driving speed reaches 38km/h, self-propelled on public roads without trailer, drastically cut transfer cost. Rubber tires protect urban pavement, ideal for municipal road repair, pipe installation and bulk earthmoving.
2. Isuzu 4HK1 original engine with strong low-speed torque, Stage V emission standard requires no urea, stable performance under harsh working conditions.
3. Full Kawasaki hydraulic pump and valve plus 6th-gen DOMCS energy-saving system, smooth compound actions and good heat resistance for long-time breaker operation. Pre-installed hydraulic piping for multiple attachments.
4. ZF imported 4WD drive axle and gearbox, front dozer blade + rear double outriggers deliver excellent stability during heavy digging and rock breaking. High ground clearance ensures great off-road performance.
5. ROPS/FOPS certified air-conditioned cabin equipped with 360° panoramic camera and smart touch screen. Centralized service layout lowers daily maintenance time and cost.
Interested in used SANY SY215W excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
