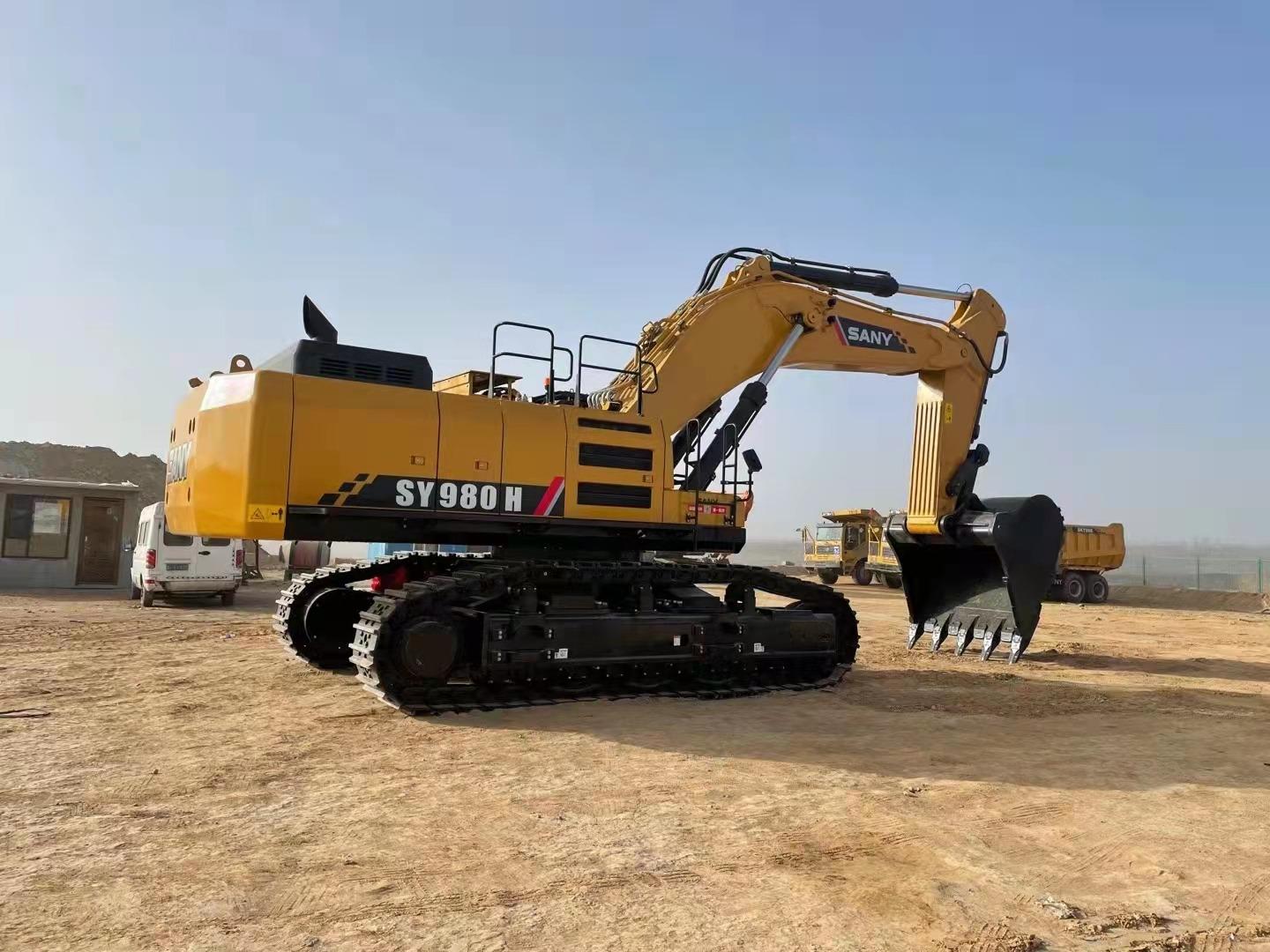

SANY SY980H
Specifications & Parameters
| Engine Model | Scania DC16 VS |
| Rated Power(kW) | 425 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 3260 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 30.0‑35.0 |
| Engine Displacement(L) | 16.4 |
| Emisson | Stage III |
| Track width(mm) | 650 |
| Fuel Tank(L) | 1180 |
| Hydraulic Tank(L) | 830 |
| Travel Speed(km/h) | 4.2 |
| Bucket Capacity(m³) | 6.5 |
| Bucket Digging Force(kN) | 495 |
| Boom Length(mm) | 7250 |
| Stick Length(mm) | 3000 |
| Maximum Excavation Radius(mm) | 12557 |
| Maximum Digging Height(mm) | 12420 |
| Maximum Digging Depth(mm) | 7062 |
| Specifications(mm) | 14000×4120×5960 |
| Operating Weight(kg&ton) | 95000 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1. 95000kg operating weight matched with 6.5m³ heavy rock bucket (5.5m³ crusher bucket / 7.0m³ earthwork bucket / 8.0m³ large loading bucket optional), delivers industry-leading breakout force for hard rock blasting excavation and continuous high-volume bulk material transportation tasks.
2. 425kW high rated power outputs massive 3260N·m maximum torque reserve, providing superior traction, climbing and off-road passing performance on rugged mine slopes, gravel stockpiles and muddy uneven construction terrain.
3. ROPS/FOPS falling-object protection safety cabin with panoramic oversized windshield, upgraded dustproof and noise reduction sealing structure, hydraulic air suspension shock-absorbing operator seat significantly relieves driver fatigue during full-day uninterrupted cyclic heavy workload.
4. 650mm triple-rib widened heavy track shoes optimize chassis load distribution, effectively lower ground pressure and ensure outstanding trafficability on loose broken stones, soft soil and complex rugged job sites.
5. Expanded one-side centralized maintenance access with four-stage fuel water separation filtration system, extended service intervals for lubricating oil and filter elements, supported by SANY remote intelligent monitoring and fault diagnosis system, greatly simplifies daily inspection and cuts annual maintenance expenditure.
Interested in used SANY SY980H excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
