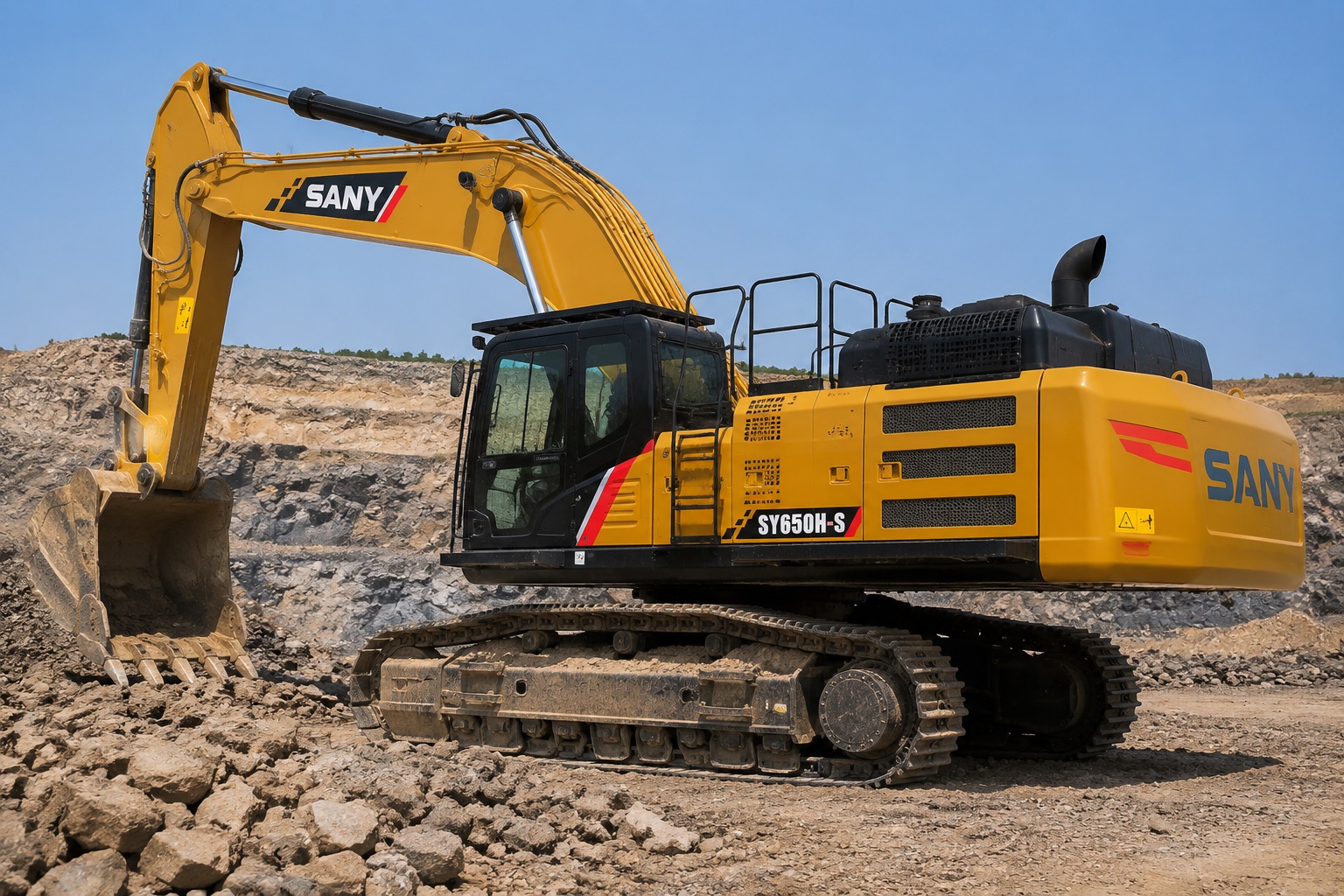

SANY SY650H‑S
Specifications & Parameters
| Engine Model | Isuzu 6WG1X |
| Rated Power(kW) | 345 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 2050 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 25.5‑28.5 |
| Engine Displacement(L) | 15.681 |
| Emisson | Stage V |
| Track width(mm) | 600 |
| Fuel Tank(L) | 840 |
| Hydraulic Tank(L) | 680 |
| Travel Speed(km/h) | 4.6 |
| Bucket Capacity(m³) | 3.8 |
| Bucket Digging Force(kN) | 345 |
| Boom Length(mm) | 7000 |
| Stick Length(mm) | 3000 |
| Maximum Excavation Radius(mm) | 11670 |
| Maximum Digging Height(mm) | 11135 |
| Maximum Digging Depth(mm) | 7210 |
| Specifications(mm) | 12760×3500×4530 |
| Operating Weight(kg&ton) | 65000 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2022 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
1. Adopts imported Isuzu 6WG1X six-cylinder turbocharged intercooled diesel engine with 345kW rated power and strong low-speed torque, stable 24-hour continuous open-pit mining operation, fully meets Stage V emission standard with SCR urea aftertreatment.
2. 65-ton flagship heavy mining excavator, specially designed for large open-pit mine rock stripping, blasted rock loading, bulk aggregate transportation and mega infrastructure earthmoving projects.
3. Equipped with Kawasaki K7V280 full electronic hydraulic system and exclusive SANY DPC direct power control technology, oversized independent hydraulic radiator eliminates high-temperature power loss, fuel consumption reduced by 12% and working efficiency improved by 18% versus the old SY650H model.
4. Reinforced boom and stick with full penetration anti-fatigue welding, widened heavy-duty undercarriage with excellent shock resistance and wear resistance under harsh dusty mining conditions.
5. Fuel consumption 25.5‑28.5L/h, multiple intelligent power modes including dedicated breaker mode, upgraded C12 safety cabin and centralized maintenance layout to cut long-term operation and after-sales costs.
