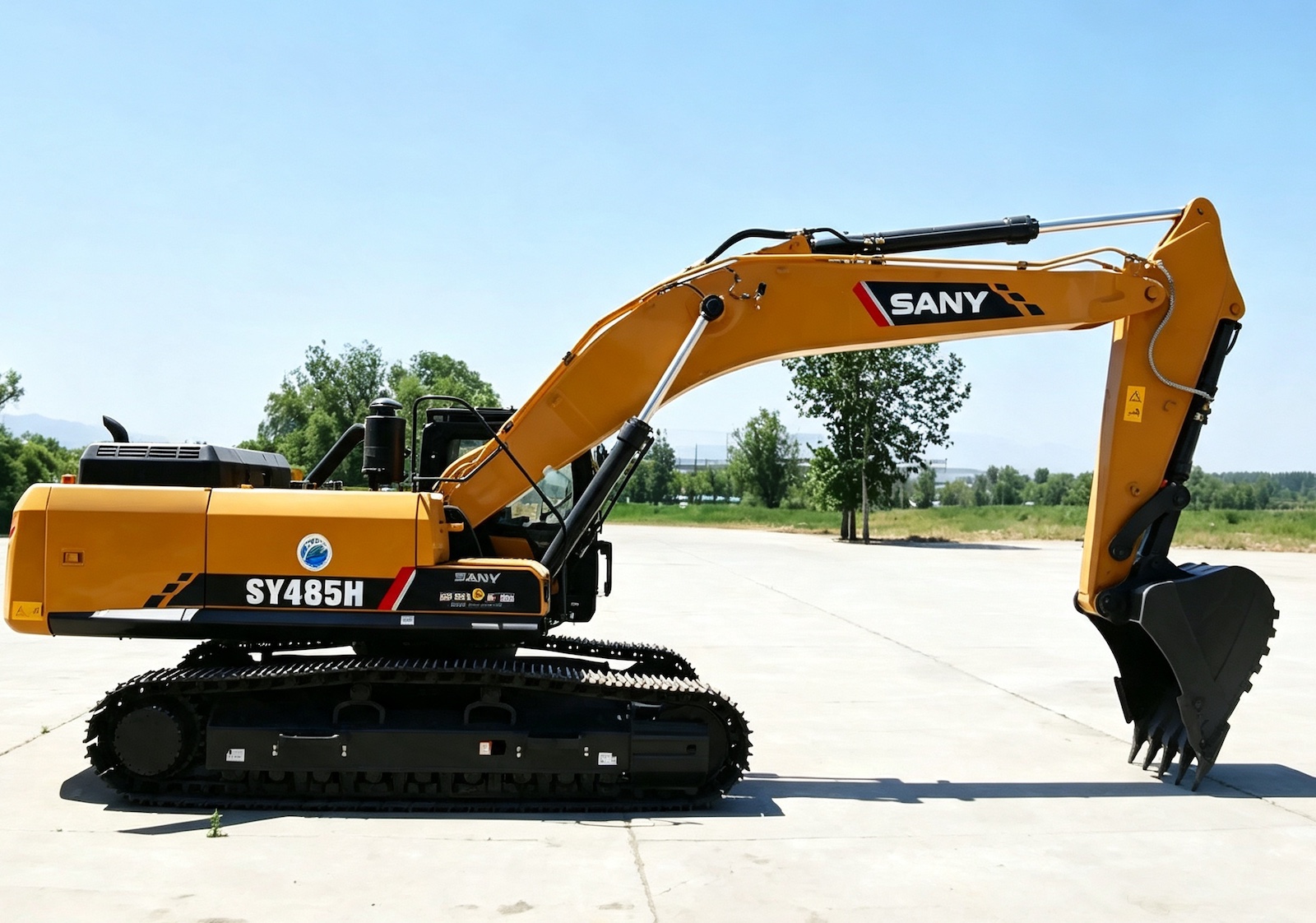

SANY SY485H
Specifications & Parameters
| Engine Model | Isuzu 6WG1X |
| Rated Power(kW) | 300 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 1950 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 18~23 |
| Engine Displacement(L) | 15.68 |
| Emisson | Tier 3 / Stage IIIA |
| Track width(mm) | 600 |
| Fuel Tank(L) | 680 |
| Hydraulic Tank(L) | 480 |
| Travel Speed(km/h) | 5.4 |
| Bucket Capacity(m³) | 3.0 |
| Bucket Digging Force(kN) | 287 |
| Boom Length(mm) | 6800 |
| Stick Length(mm) | 3350 |
| Maximum Excavation Radius(mm) | 11860 |
| Maximum Digging Height(mm) | 10950 |
| Maximum Digging Depth(mm) | 7490 |
| Specifications(mm) | 12095×3360×3790 |
| Operating Weight(kg&ton) | 49500 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2020 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
Features
49.5-ton heavy-duty mining excavator exclusively designed for large open-pit mines, quarry stone loading & bulk earth stripping.
Original Isuzu 6WG1X diesel engine, 300kW strong power output, stable performance under all-day continuous heavy workload.
Reinforced boom, stick & thickened chassis frame, anti-wear pin joints for long-term rock excavation impact resistance.
Large 3.0m³ rock bucket, ultra-high loading efficiency, greatly improve mine daily production capacity.
Optimized Kawasaki hydraulic control system, precise operation & reasonable fuel consumption for heavy mining conditions.
Tier 3 emission standard, smoothly imported to Africa, South America, Central Asia mining countries without modification.
High residual resale value among Chinese large excavators, widely recognized by global mine owners.
Complete worldwide spare parts supply network, low maintenance cost & less downtime.
Interested in used SANY SY485H excavator? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
