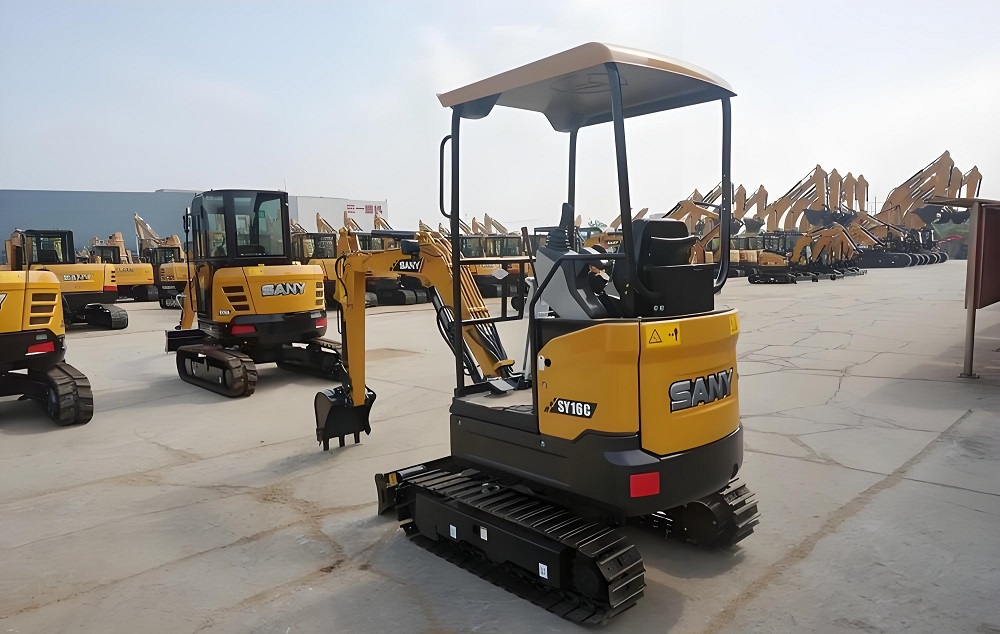

Used SANY SY16C-8
Parameters
| Engine Model | YANMAR 3TNV70 |
| Rated Power(kW) | 10.3 |
| Engine Revolutions(rpm) | 1400 |
| Maximum Torque(N·m) | 50 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 2-2.8 |
| Engine Displacement(L) | 0.854 |
| Emisson | Stage II |
| Track width(mm) | 400 |
| Fuel Tank(L) | 23 |
| Hydraulic Tank(L) | 21 |
| Travel Speed(km/h) | 3.8 |
| Bucket Capacity(m³) | 0.04 |
| Bucket Digging Force(kN) | 16.6 |
| Boom Length(mm) | 1810 |
| Stick Length(mm) | 1130 |
| Maximum Excavation Radius(mm) | 4000 |
| Maximum Digging Height(mm) | 2635 |
| Maximum Digging Depth(mm) | 2360 |
| Specifications(mm) | 3575×1350×2420 |
| Operating Weight(kg&ton) | 1850 |
| Size Class | Mini |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2014 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
Features
Low-Noise YANMAR 3TNV70 Direct Injection Diesel Engine
Inline three-cylinder 0.854L naturally aspirated diesel engine, rated power 10.3kW. Compliant with China Non-Road Stage II emission standard, mechanical fuel injection without aftertreatment or urea tank, low maintenance cost and widely available spare parts nationwide.
Telescopic Narrow Undercarriage & Zero Tail Swing
Adjustable track width 980mm~1350mm, zero tail swing design avoids wall collision in narrow spaces; low ground pressure with standard rubber tracks protects asphalt and tile pavement.
Side-Shift Boom Working Attachment
Lateral offset boom enables digging close to walls and tree roots without frequent machine repositioning, perfectly fit for garden and indoor tight-space construction.
Ultra-Compact Transport Dimension
Overall transport dimension 3575×980~1350×2420mm, loadable on pickup trucks and small tricycles without heavy flatbed transportation.
Simple & Reliable Hydraulic System
Fixed displacement load sensing main pump with factory pre-installed auxiliary breaker line for 40/45 mini hydraulic hammers, simple valve layout for fast daily maintenance.
