Used SANY SY60C PRO
Features
SANY SY60C Pro is a 6-ton small hydraulic excavator launched by Sany Heavy Industry, with core advantages such as "energy saving and high efficiency, intelligent driving, reliability and durability".
Core advantages and characteristics
-Efficient and energy-saving
-Adopting Sany's exclusive customized Kubota/Isuzu V2607 engine (rated power 36kW/2100rpm), it meets the National IV emission standards and has outstanding fuel economy.
-Load sensitive hydraulic system+constant power algorithm, achieving efficient matching between engine and hydraulic system, improving comprehensive energy efficiency ratio by 10% under common operating conditions, and reducing fuel consumption per cubic meter by about 10% compared to competitors.
-Reinforced structure, durable and reliable
-Reinforced upper arm, lower arm, and upper frame: using thickened plates, large section edge beams, wear-resistant coatings, etc., to enhance impact resistance and service life.
-Track system optimization: The hardness of the support wheels has been increased by 30%, and imported sealing rings have been used to reduce wear and tear; Increase the number of sprocket wheels to prevent the tracks from falling off.
-The whole machine has passed over 800000 fatigue tests and 2000 hours of field excavation verification, and its reliability has reached a high level in the industry.
-Intelligent and comfortable driving experience
-7-inch touch screen display, supporting smartphone style operation, can view machine status, fault codes, etc.
-Suspension seats, adjustable backrest (angle increased by 20 °), and fast air conditioning cooling (only 15 minutes from 35 ℃ to 25 ℃) significantly reduce driving fatigue.
-The cabin sealing has been improved by 64%, effectively preventing dust and noise, and meeting the European standard ROPS/FOPS safety standards.
-Flexible operation and broad vision
-The front ground window is designed to increase the glass area by 35% for better vision.
-Rotating speed of 9.6rpm, walking speed of 4.2/2.4km/h (high/low), suitable for working in narrow urban areas.
-The maximum excavation depth is 3770mm, the maximum unloading height is 3975mm, and the operation range is wide.
-Low maintenance cost
-Rotary maintenance free design: No need to regularly add rotary gear oil.
-External fuel filter, dual oil-water separator, 7-inch air pre filter+dual air filter element (filtration efficiency 99.9%), extend engine life.
-Support the Sany "Yiweixun" customer management system, which can be remotely monitored and scheduled for maintenance through a mobile app.
-Additional Features (Partial Configuration)
-Optional crusher specific filter to enhance reliability under high impact conditions.
-The flat mode and three pump merging technology improve the speed of boom operation and the accuracy of flat ground.
Parameters
| Engine Model | Kubota V2607 |
| Rated Power(kW) | 36 |
| Engine Revolutions(rpm) | 2000 |
| Engine Displacement(L) | 2.615 |
| Maximum Torque(N·m) | 206.9 |
| Fuel Tank(L) | 130 |
| Hydraulic Tank(L) | 85 |
| Travel Speed(km/h) | 4.2 |
| Bucket Capacity(m³) | 0.28 |
| Bucket Digging Force(kN) | 45 |
| Boom Length(mm) | 3000 |
| Stick Length(mm) | 1550 |
| Maximum Excavation Radius(mm) | 6090 |
| Maximum Digging Height(mm) | 5735 |
| Maximum Digging Depth(mm) | 3770 |
| Specifications(mm) | 5925×2005×2630 |
| Operating Weight(kg&ton) | 6000 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2021 |
| Condition | Used |
| Inventory Quantity | 3 |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the exact price |

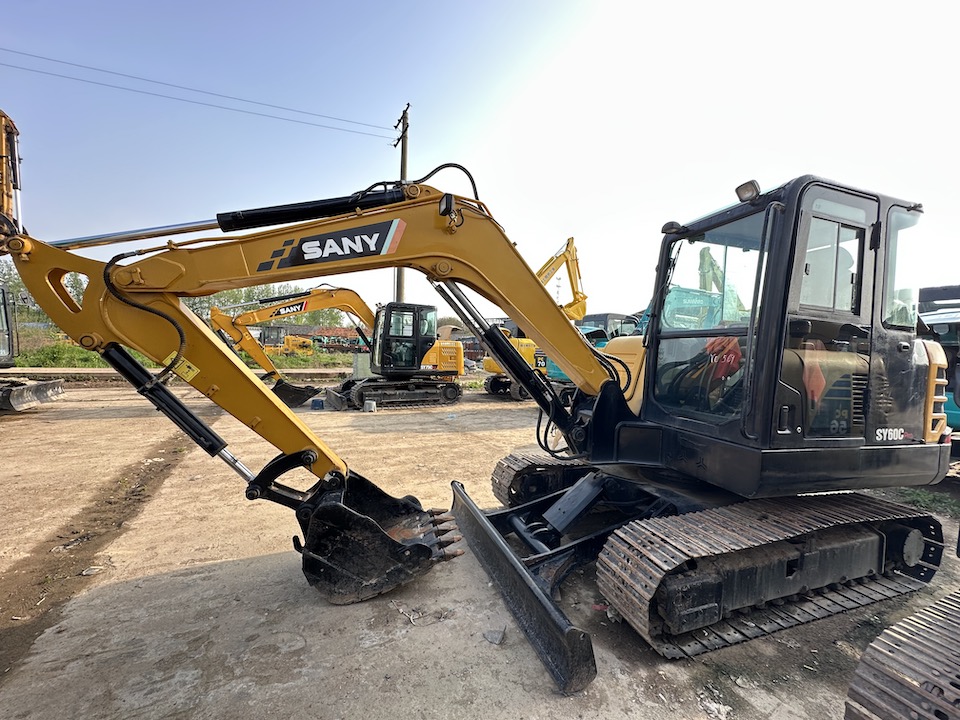

Actual Photos
