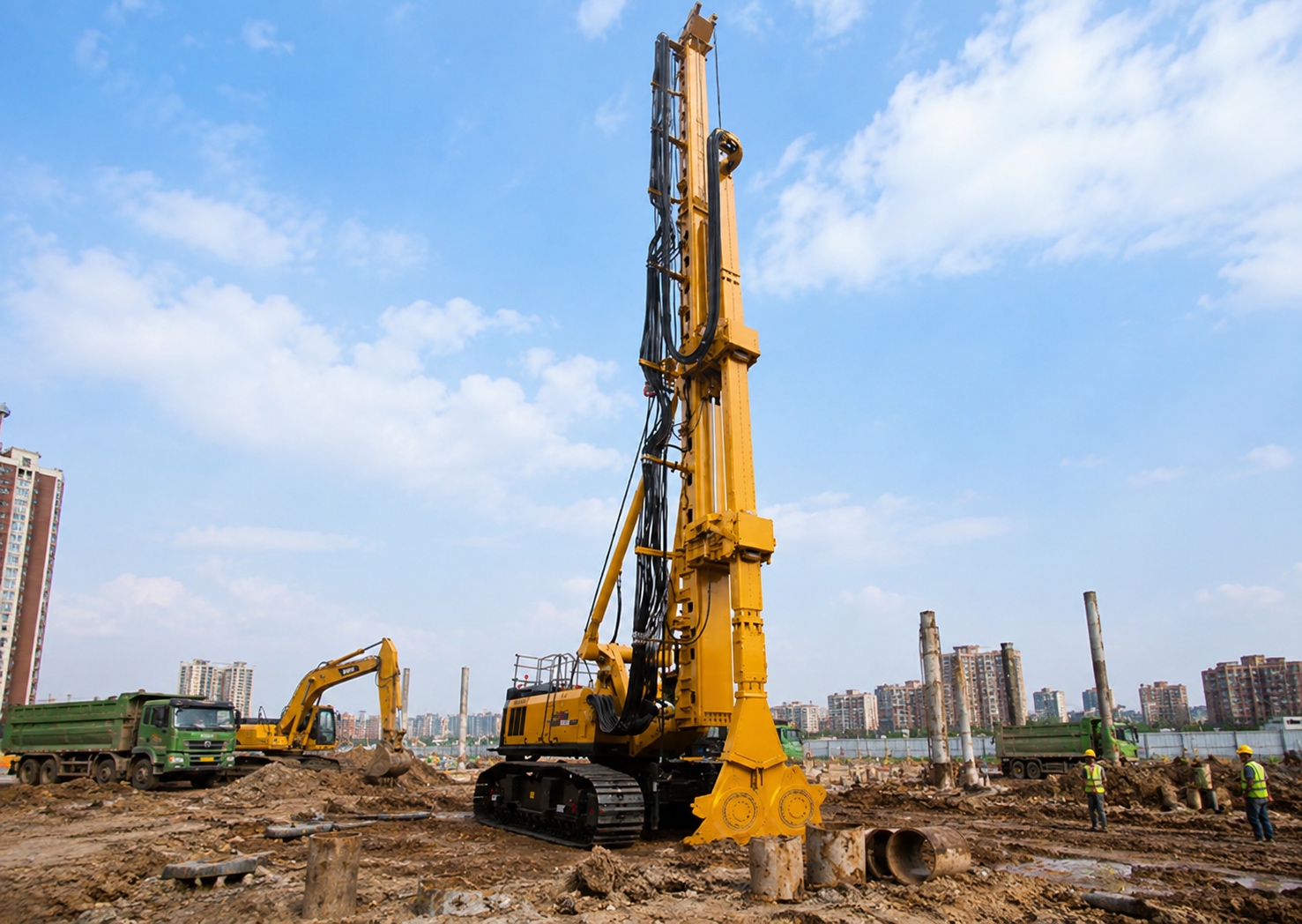

XCMG XCM40 (Cutting and Mixing Rig)
Parameters
| Engine Model | Cummins QSX15 |
| Rated Power(kW) | 447 |
| Engine Revolutions(rpm) | 2100 |
| Maximum Torque(N·m) | 2779 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 25-30 |
| Engine Displacement(L) | 15 |
| Emisson | Euro III |
| Fuel Tank(L) | 800 |
| Hydraulic Tank(L) | 600 |
| Travel Speed(km/h) | 1.5 |
| Operating Weight(kg&ton) | 165000 |
| Specifications(mm) | 12000×4500×35000 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2020 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Trench width | 700-1000mm |
| Maximum trench depth | 40m |
| Maximum torque | 2×80/100kN·m |
| Rotary speed | 0-25r/min |
| Trench length | 2800mm |
| Maximum hoisting force | 1000kN |
Features
XCM40 cutting and mixing drilling rig can be used in the construction of anti-seepage walls and retaining walls in deep foundation projects such as subway stations, building foundation pits, basements of high-rise buildings, underground parking lots, underground commercial streets, reservoir dams, ports, mines, environmental protection projects, etc.
Cutter soil mixing (CSM) is a non-borrow soil mixing wall-forming method. The double-wheel cutter cuts into the soil, and when the cutter wheel crushes the soil, the pump conveys high-pressure cement slurry and air to the cutter through the guide rod. Then the cement slurry and air are fully stirred with loose soils to form anti-seepage walls, retaining walls or improve the formation, which is a new technology for efficient construction.
