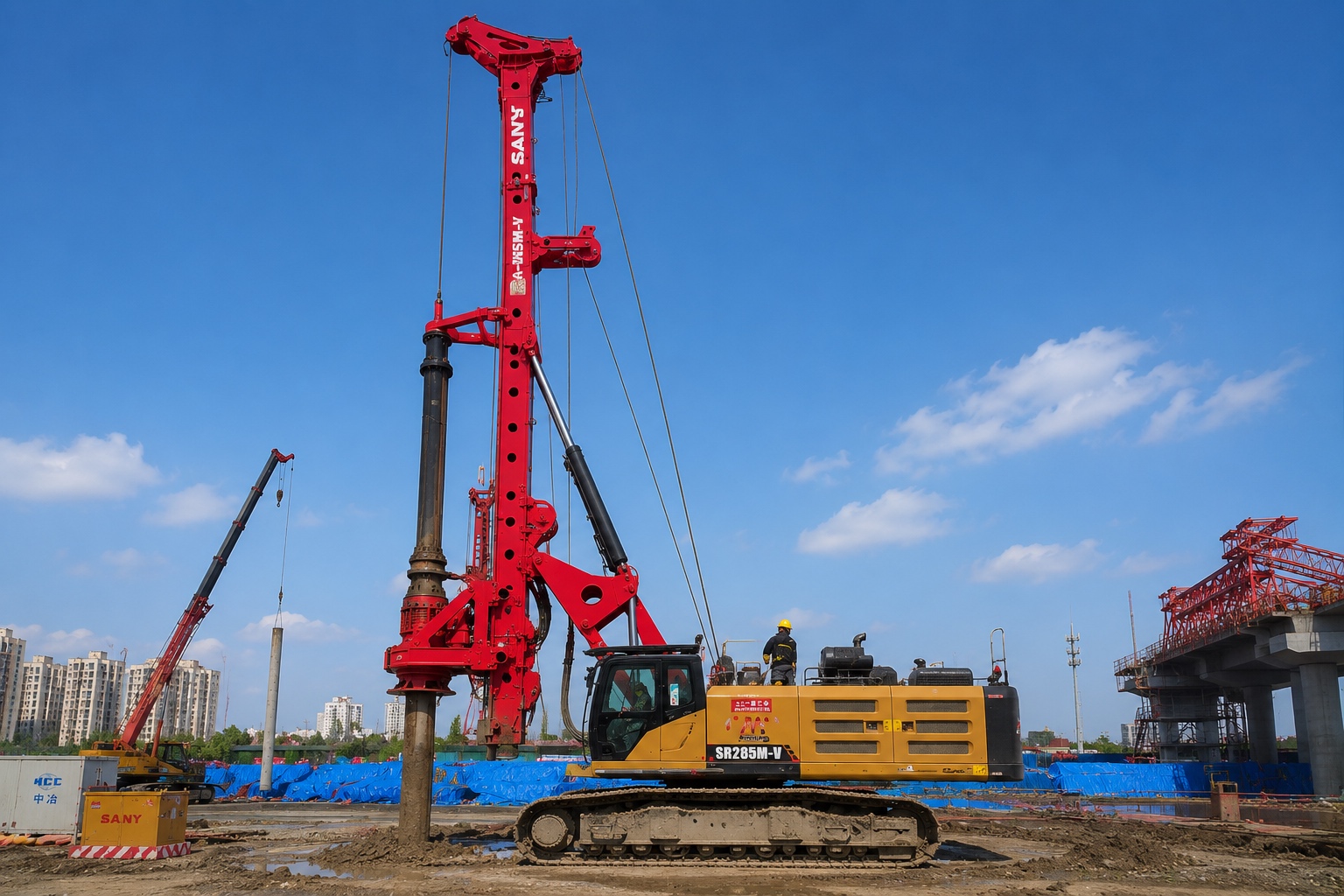

SANY SR285M-V (Rotary Drilling Rig)
Parameters
| Engine Model | Cummins X12 |
| Rated Power(kW) | 336 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 2100 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 35-45 |
| Engine Displacement(L) | 11.9 |
| Emisson | Stage V/Tier 4 final |
| Fuel Tank(L) | 1200 |
| Hydraulic Tank(L) | 1000 |
| Travel Speed(km/h) | 5.5 |
| Operating Weight(kg&ton) | 105000 |
| Specifications(mm) | 17000×3475×3625 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2020 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Crowd Force | 265kN |
| Stroke | 17100mm |
| Overall Height | 25140mm |
| Max. Pile Diameter | 2200mm |
| Max. Pile Depth | 94/61m |
| Line Pull | 355kN |
| Rated Speed | 5~27rpm |
| Rated Output Torque | 285kN·m |
| Lifting Capacity | 325kN |
| Max. Line Speed | 70m/min |
| Rope Diameter | 36mm |
Features
High Efficiency Drilling
The preferred model in the field of soil and rock layer construction, smooth compound movement control, adjustable torque and rotation speed of rotary drive, suitable for different kinds of geological conditions and construction methods.
Strong Power
Engines collaboratively developed with world’s leading suppliers fully meet Tier IV/ III emission regulations, offering long lasting, stable and reliable power output with low fuel consumption.
Full Stroke Crowd System
15m extra-long stroke, featuring fast crowding and pulling function, suitable for long casing construction in beach, pebble, backfill formation.
Kelly Visualization
Real-time display the location of the locking device while using the inter-lock Kelly bar, avoiding accidental damage.
Floating Pretension Function
The wire rope is always tensioned while working, extending the service life of it.
Smart Screen
HD touch screen, 3ms refresh frequency, smooth animation display.
Centralized Automatic Lubricating System
Grease qualitatively and regularly, keeping the machine in well-lubricated state.
