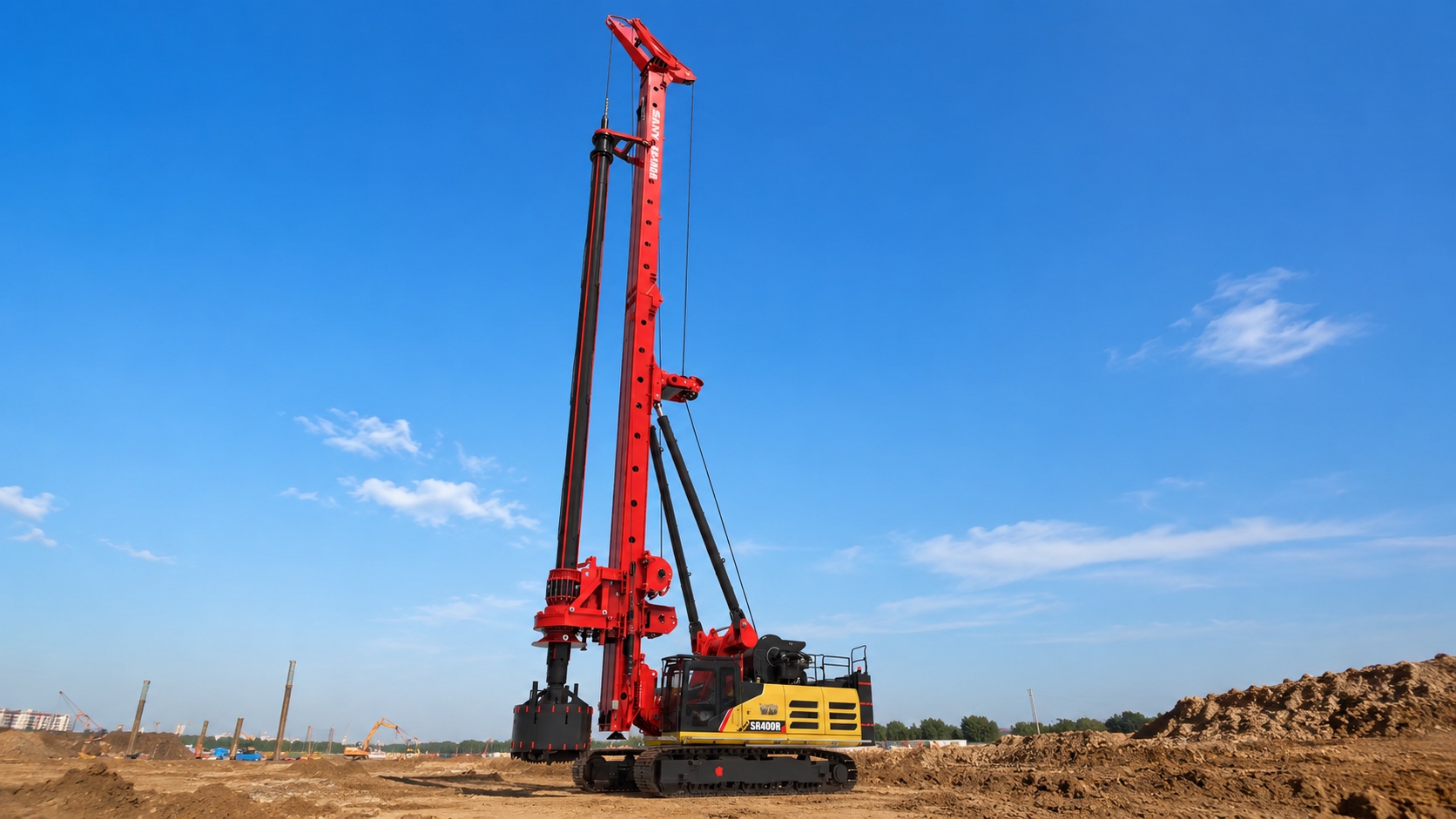

SANY SR400R-W10 (Rotary Drilling Rig)
Parameters
| Engine Model | Isuzu 6WG1 |
| Rated Power(kW) | 300 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 1810 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 25-35 |
| Engine Displacement(L) | 15.68 |
| Emisson | China Stage Ⅲ |
| Fuel Tank(L) | 800 |
| Hydraulic Tank(L) | 600 |
| Travel Speed(km/h) | 1.2 |
| Operating Weight(kg&ton) | 137000 |
| Specifications(mm) | 11580×3530×3575 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2020 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price. |
| Rated Speed | 5~22rpm |
| Rated Output Torque | 400kN·m |
| Max. Pile Diameter | 2500/2200mm |
| Max. Pile Depth | 105/86m |
| Crowd Force | 350kN |
| Stroke | 9000/18000mm |
| Line Pull | 380kN |
| Overall Height | 27105mm |
| Transport Width | 3530mm |
| Transport Height | 3575mm |
| Lifting Capacity | 410kN |
| Max. Line Speed | 70m/min |
| Rope Diameter | 36mm |
Features
High Efficiency
Large core parameters such as high torque and crowd force; fast line speed of main rope to ensure high drilling efficiency in hard soil layer; it is suitable for overpass, high-speed rail, large buildings and other large hole foundation fields.
Full Stroke Crowd
Adopt a winch crowd system with long stroke, fast crowding, and rotary drive display function, suitable for all casing construction in the beach, pebble and backfill formation.
Economy and Energy Saving
Power optimization control technology is adopted to distribute power in real-time with the smooth and fast response of composite action; moreover, it has high fuel efficiency and low comprehensive fuel consumption.
Step Drum
Adopt step drum structure with a single layer to realize no crushing, no wear, and increase the service life of wire rope by 35%.
Intelligent Upgrade
HD touch screen, 3ms refresh frequency, smooth animation display.
Convenience
The rotary drive key bar is exposed for easy service and replacement; the main winching wire rope is fixed by a wedge, which is easy to disassemble and assemble. Some lubrication points are exposed for easy service.
