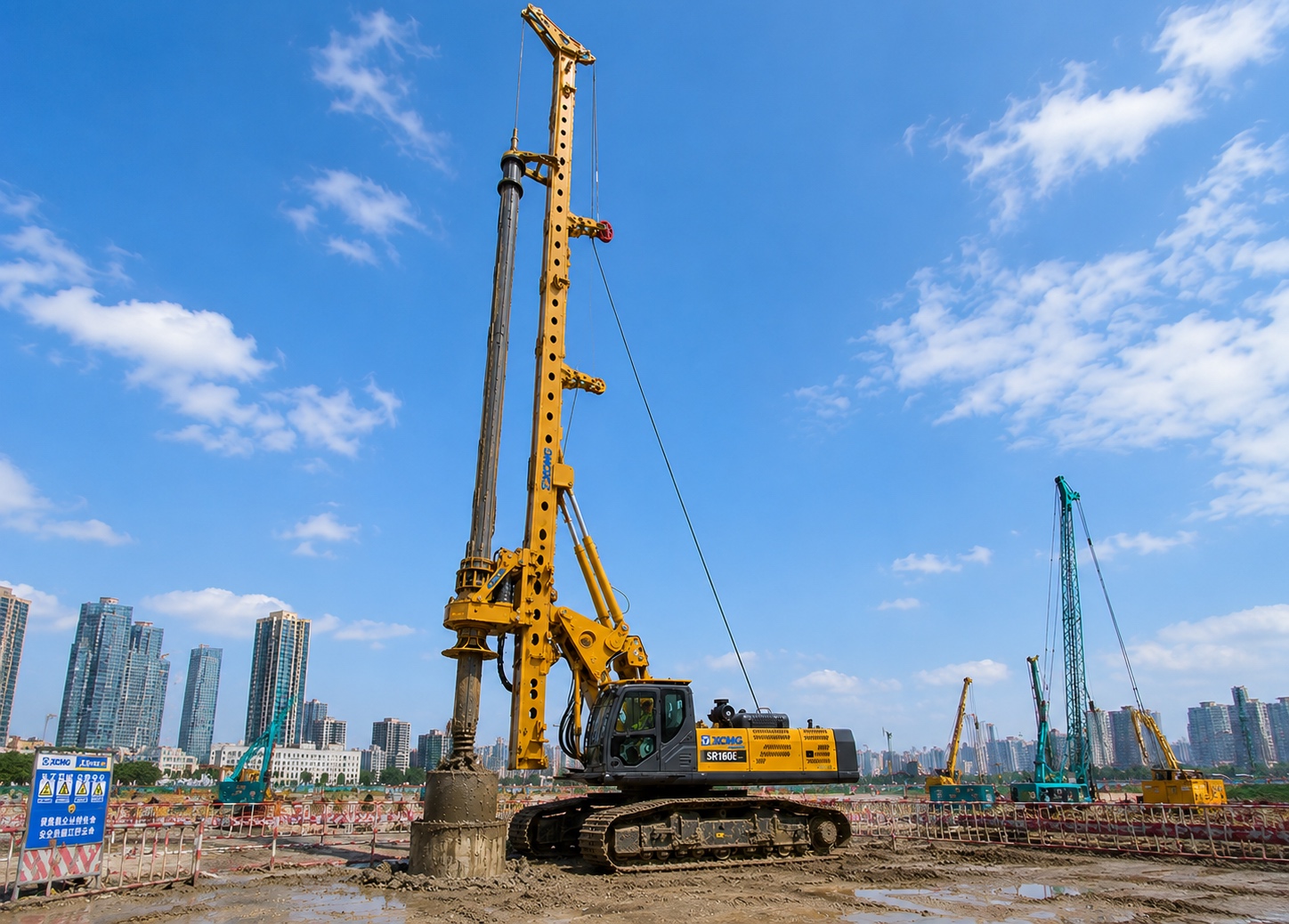

XCMG XR160E (Rotary Drilling Rig)
Parameters
| Engine Model | Cummins QSB7-C202 |
| Rated Power(kW) | 150 |
| Engine Revolutions(rpm) | 2200 |
| Maximum Torque(N·m) | 895 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 16-22 |
| Engine Displacement(L) | 6.7 |
| Emisson | Tier3 |
| Fuel Tank(L) | 380 |
| Hydraulic Tank(L) | 320 |
| Travel Speed(km/h) | 3.6 |
| Operating Weight(kg&ton) | 53000 |
| Specifications(mm) | 14053×2960×3295 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2018 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Rotary Torque | 160kN·m |
| Rotary Speed | 5~35r/min |
| Max Drill Dia | Φ1500mm |
| Max Depth | 44m (4pipes)/56m (5pipes) |
| Crowd Force | 160kN |
| Cylinder Stroke | 4.2m |
| Main Winch Pull | 160kN |
| Main Rope Speed | 80m/min，Φ28mm |
| Aux Winch Pull | 60kN |
| Aux Rope Speed | 80m/min，Φ16mm |
| Travel Type | Track full hydraulic drive |
| Max Gradeability | 35% |
| Side tilt | ±3° |
Features
Powerful Cummins QSB7 engine (6.7L,895N·m), low fuel consumption, global after-sales service.
160kN·m rotary torque, max bore 1.5m, depth 56m, high productivity for soil & soft rock.
Upgraded parallelogram luffing + retractable crawler, outstanding stability on narrow site.
Single-layer rope winch, 2-4 times longer wire rope service life, low maintenance cost.
Multi-function switch: crowd cylinder / winch crowd / CFA auger / dual power head.
Intelligent auto verticality control, double oil cooler for tropical high temp construction.
Interested in used XCMG XR160E (Rotary Drilling Rig) Piling machinery? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
