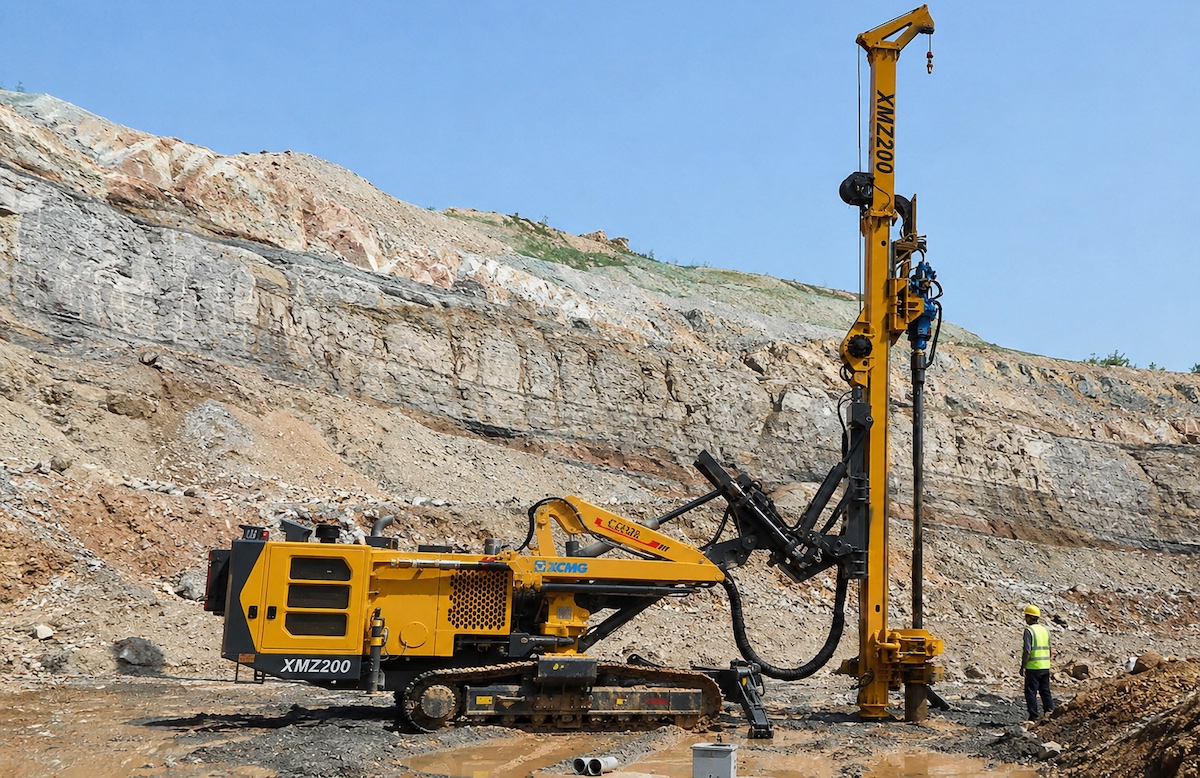

XCMG XMZ200 (Multifunctional Drilling Rig)
Parameters
| Engine Model | Cummins QSB6.7 |
| Rated Power(kW) | 194 |
| Engine Revolutions(rpm) | 2200 |
| Maximum Torque(N·m) | 1000 |
| Inject Type | Direct Injection |
| Fuel consumption(L/h) | 15 |
| Engine Displacement(L) | 6.7 |
| Emisson | EU III |
| Fuel Tank(L) | 300 |
| Hydraulic Tank(L) | 300 |
| Travel Speed(km/h) | 3 |
| Operating Weight(kg&ton) | 24000 |
| Specifications(mm) | 10781×2450×3293 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2020 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Get the Latest Price from sales via WhatsApp |
| Max. feed/pull-out force | 110kN |
| Max. torque（multiple options） | 25000/8500 N·m |
| Max. rotate speed （multiple options） | 80/69 r/min |
| Feed stroke | 4260 mm |
| Clamping range （multiple options） | Ф60-Ф415 mm |
Features
XCMG XMZ200 multifunctional drilling rig is mainly used in the construction such as pile anchor support for foundation and landslide, geological prospecting/pipe grouting of tunnel, tunnel rescue hole drilling, micro pile construction.
The wireless remote control is used to control the drilling and walking, and the operator can freely choose the operating position to ensure the best view.
Modular design of drill mast, clamp, rotary drive assembly, etc., and each module is rich in configuration to meet the special needs of different clients.
Interested in used XCMG XMZ200 (Multifunctional Drilling Rig) Piling machinery? Click the WhatsApp icon to chat with our sales team for a quicker reply, or leave us a message through the contact form below. If you are looking for a different brand or model, please tell us your purchasing requirements, and we will do our best to help you find the right machine. Send Inquiry
Photos
