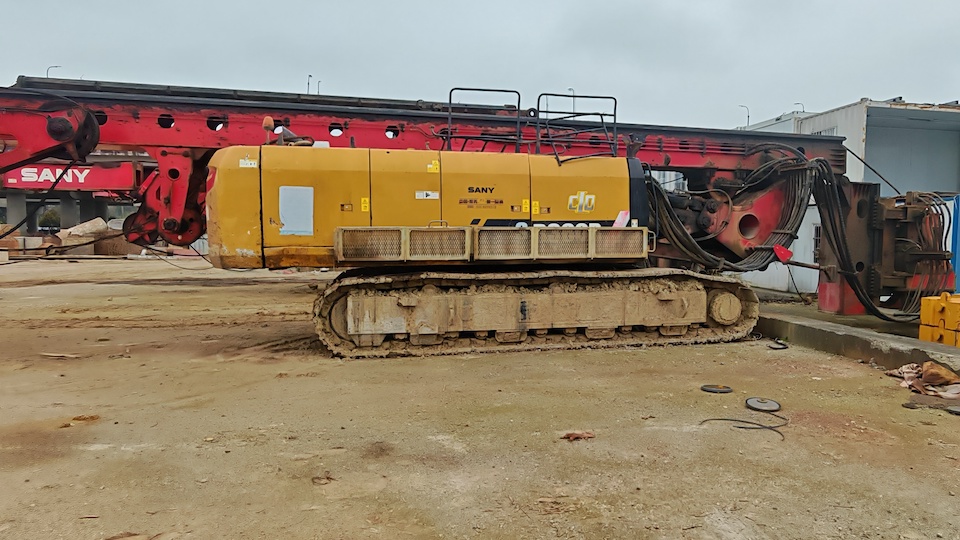

Used Sany SR360R-C10 Rotary Drilling Rig
Parameters
| Engine Model | Isuzu 6WG1 |
| Rated Power(kW) | 300 |
| Engine Revolutions(rpm) | 1800 |
| Maximum Torque(N·m) | 1800 |
| Inject Type | Electronic Injection |
| Fuel consumption(L/h) | 22-31 |
| Engine Displacement(L) | 15.68 |
| Emisson | China Stage III |
| Fuel Tank(L) | 500 |
| Hydraulic Tank(L) | 450 |
| Travel Speed(km/h) | 3.5 |
| Operating Weight(kg&ton) | 120T |
| Specifications(mm) | 19911×3532×3744 |
| Size Class | Large |
| Power Type | Diesel |
| Walking Mode | Crawler |
| Country of Origin | China |
| Year of Production | 2017 |
| Condition | Used |
| Working Hours(h) | 2000/5000/7000 |
| Price($) | Check the latest price. |
| Base Engine | Isuzu 6WG1 |
| Engine Power | 300/1800kW/rpm |
| Emission Regulation | China Stage Ⅲ |
| Rated Speed | 5~25rpm |
| Rated Output Torque | 360kN·m |
| Max. Pile Diameter | 2500mm |
| Max. Pile Depth | 100/65m |
| Crowd Force | 290kN |
| Stroke | 6000mm |
| Line Pull | 335kN |
| Overall Height | 26365mm |
| Operating Weight | 120T |
| Transport Width | 3530mm |
| Transport Height | 3745mm |
| Lifting Capacity | 360kN |
| Max. Line Speed | 75m/min |
| Rope Diameter | 36mm |
Features
Large Construction Capacity
Expert in construction of large diameter and 100m deep borehole; main winch with large lifting force to ensure stable operation.
Strong Rock Drilling Ability
The heaviest model of the same level ensures large crowding force; equipped with heavy duty, impact resistance reducer to realize stable torque output; excellent drilling ability in hard rock layers more than 60MPa.
High Reliability
The structural parts adopt impact, fatigue resistance technology in rock drilling, single layer wire rope winding for interlocking Kelly bar; free of mutual extrusion and wear in wire rope layers to increase service life by 35%.
Economy and Energy Saving
Adopt power optimization control technology to realize power distribution in real-time, with excellent compound action response time. High fuel efficiency and low comprehensive fuel consumption, fuel consumption reduced by 10%~15%.
Intelligent Upgrade
1) HD touch screen, 3ms refresh frequency, smooth animation display.
2) SANY patented locking device visualization technology can accurately display the process of locking and unlocking, reduce wear and Kelly bar accidents.
Convenient Maintenance
The external driving key of rotary drive facilitates maintenance and replacement; the main winch wire rope end is fixed by wedge easy to disassemble and assemble. The special lubrication point connected with outlet hose to facilitate butter injection.
Safe and Secure
360° full-field monitoring, sound and light alarm.
Available Models
We have two Sany SR360R rotary drilling rigs in stock:one is SR360R-H0(H10) heavy-duty version, the other is SR360R-C10 standard version.
They are in excellent working condition with reliable performance by professional repairs, careful maintenance and strict testing before sale.
If you need them for your construction project, please contact us anytime.
